MCS-41 proximity switch reed switch magnetic switch sensor

0 reviews - Write a review

from

$1.00

Ex Tax: $1.00

Stock: In Stock
Model: SCJ2420015J
SKU: SCJ2420015J

Products Sold: 0

Product Views: 92

Qty

Add to Cart

Buy Now Ask a question

Add to Wish List Compare this Product

Add to Cart

Buy Now

Technical Parameters

Industry-specific attributes

Use

intrusion alarm

Other attributes

Mounting Type

flush mounted

Description

door/window sensor

Model Number

MCS-41

Type

Reed Switch

Brand Name

SCJ

Theory

reed switch

Output

switch signal

Model

MCS-41

Housing material

ABS plastic

Product name

magnetic contacts

Application

Door Window

Detection distance

≥20mm

Warranty

12 Months

Switching voltage

100VDC Max.

Switch current

0.5A Max.

Contact rating

10W Max.

Switch working life

100000000 times

Description

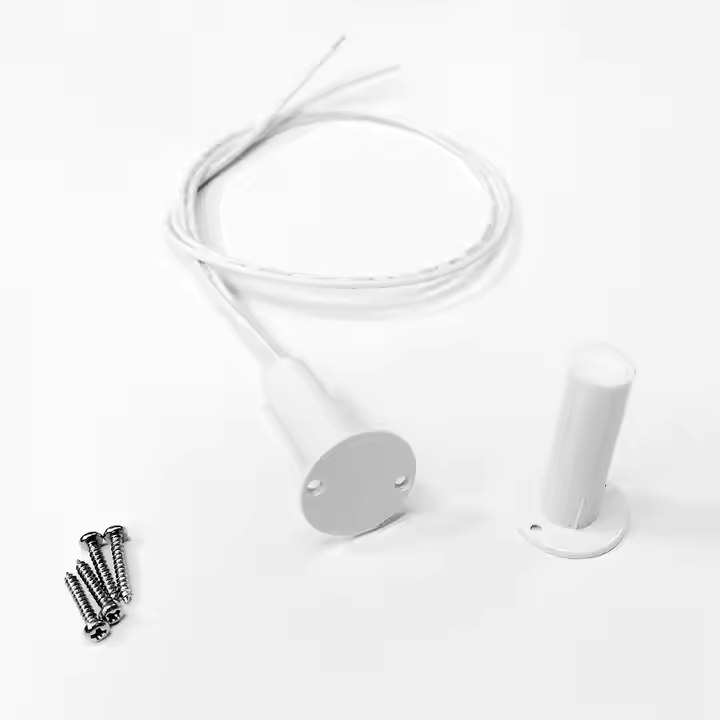

ABS Case Magnetic Switch Sensor / Window Sensor MCS-41

Magnetic contact is widely used for alarm system(panel) to detect state of door or window. It consists of reed switch part and magnet part .

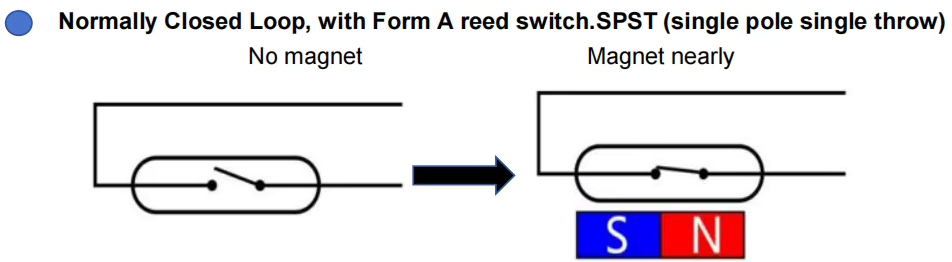

NC type we define:
When door is closed, reed switch is effected by magnet and switch ON;

when door is open, reed switch is effected by magnet and switch OFF, then output signal to panel or trigger alarm.

Specification

Model Number	MCS-41
Housing material	ABS plastic
Application	door/window sensor
Wires length	350±20 mm
Color	white / brown (black color can be customized)
Switch working life	100000000 times
Working temperature	-20~80℃
Customized	wires type / wires length / color/others
Certification	CE, ROHS
Warranty	12 Months

Customer Options

Model No.	Loop type	Sensing Gap (mm)	Max. Contact Rating(W)	Max. Switching Voltage (VDC/AC)	Max. Switching Current (A)
MCS-41	Normally Closed	≥20	10	100	0.5

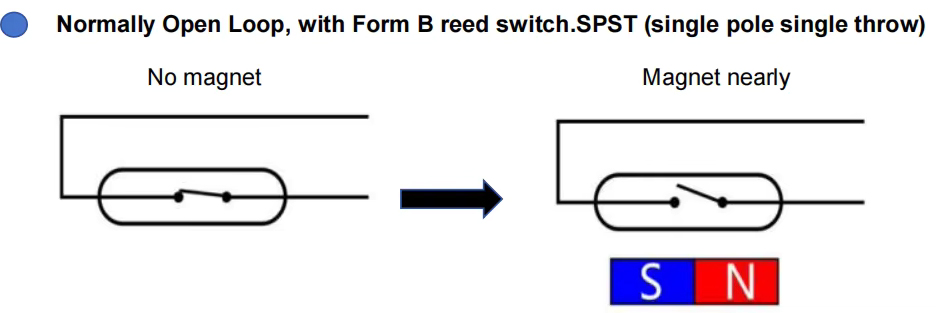

MCS-41	Normally Open	≥15	3	30	0.2

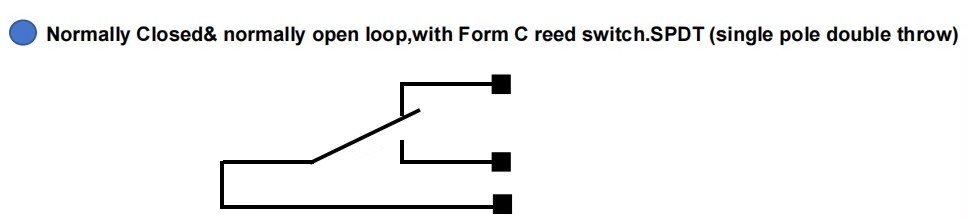

MCS-41	NC&NO	≥15	3	30	0.2

Packing & Delivery

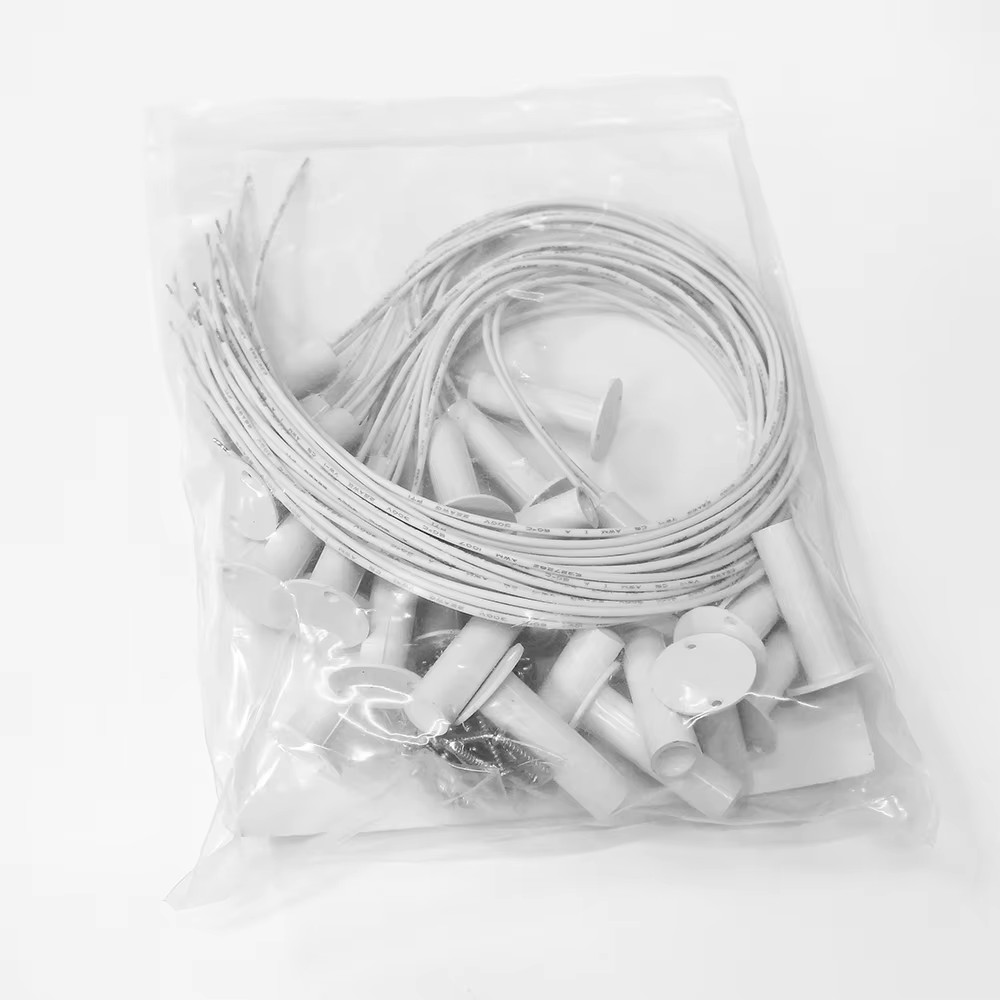

Package	20pcs/bag
Carton package	1000pcs
G.W.	16.00kgs/ctn
N.W.	15.50kgs/ctn
Carton size	383030CM
Shipment way

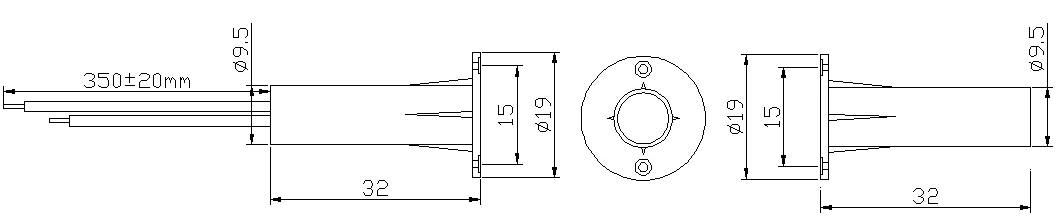

Installation drawing

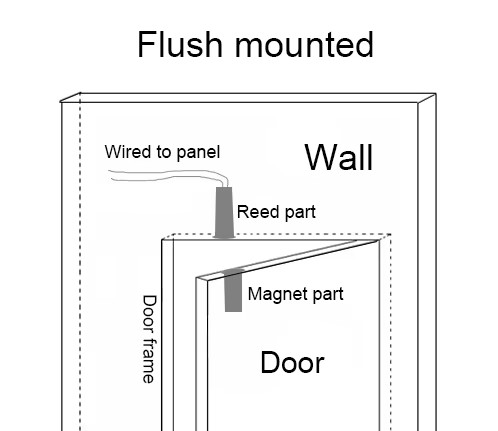

Flush mounted should be fixed in the hole between the door and door frame.

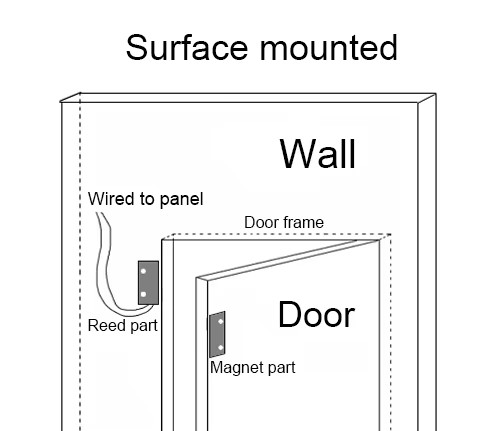

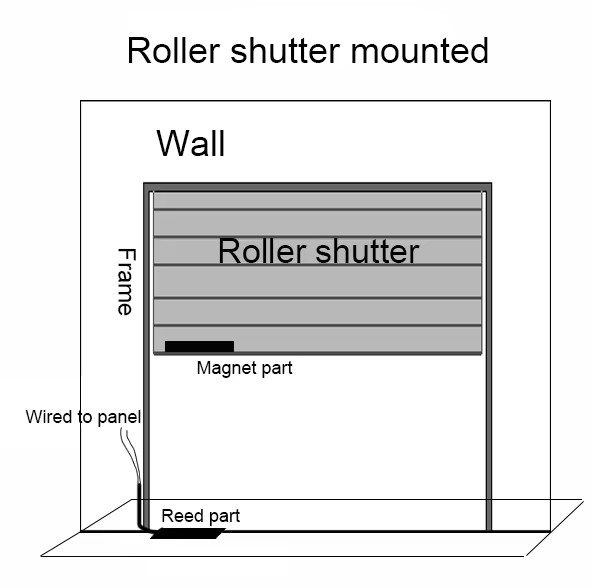

Surface/Roller shutter mounted should be fixed with screw or double-side tape. Magnet part install on the edge of door, reed part install on the edge of door frame as close to magnet part as possible . Wired reed part to alarm system (panel).
