On-Off 16mm Metal Key Switch SPST 1A

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	SPST
Contact Material	Silver Plated
Contact Rating	1A 250VAC
Current Rating	1A
Key Index Angle	60°
Material	Chrome Plated Zinc Alloy
Key Withdrawal Position	1 & 2
Mounting Style	Panel Mount
Number of Positions	2
Protection Level	Silver Plated

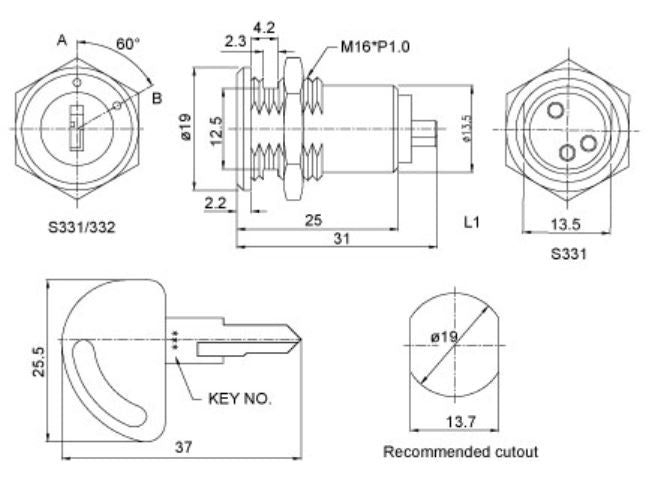

Panel Cut Out	16mm
Switch Operation	On-Off
Terminal Type	Solder
Voltage Rating	250VAC

Description

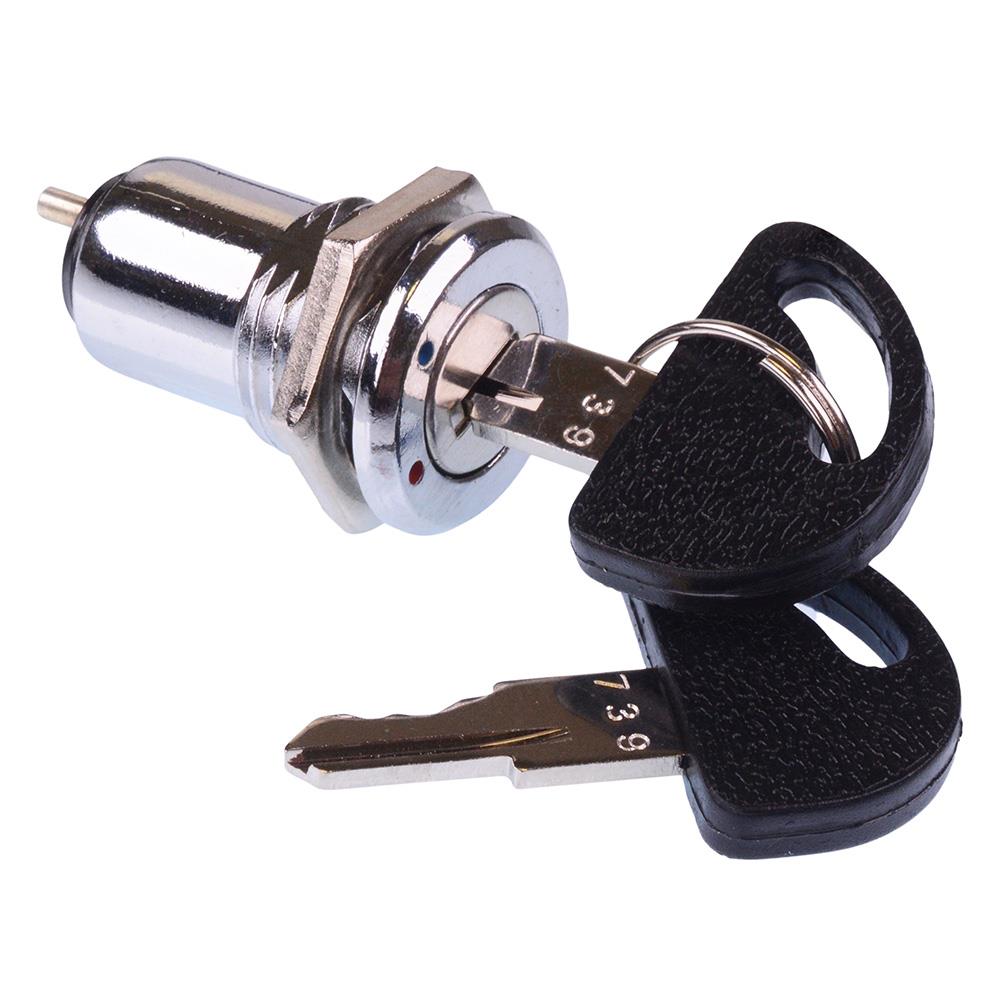

Metal key switch featuring SPST contacts and On-Off function, suitable for panel mounting. The switch features 2 keys removable in both positions and requires a 16mm panel cut-out size.

On-Off function

SPST contacts

Solder terminals

Panel cut-out: 16mm

Key removable in both positions

Chrome plated zinc alloy housing

Rating: 1A 250VAC
