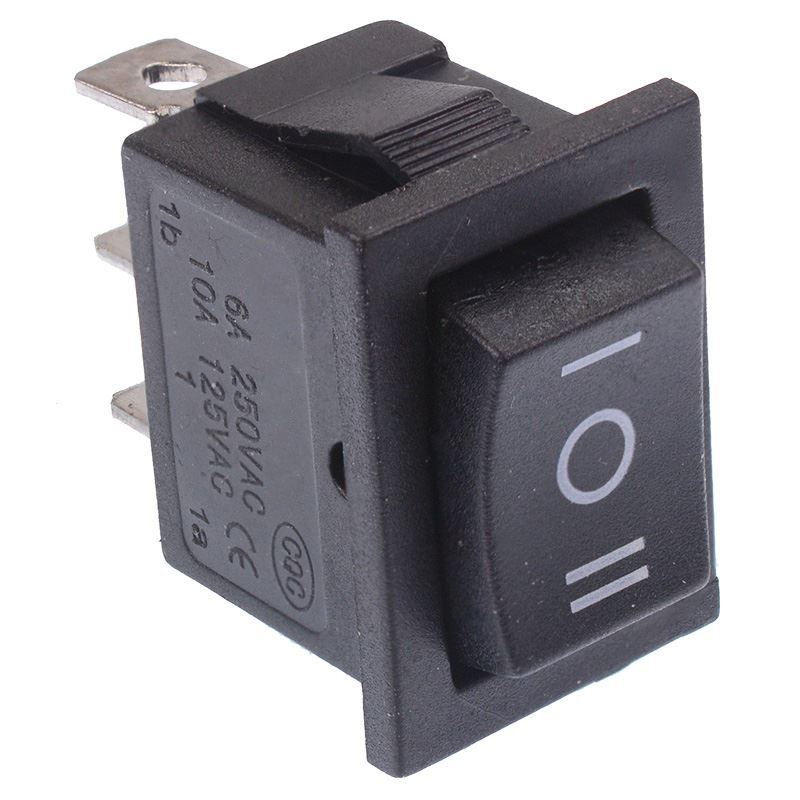

(On)-Off-(On) Momentary Rectangle Rocker Switch SPDT

(On)-Off-(On) Momentary Rectangle Rocker Switch SPDT 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	SPDT
Contact Rating	6A 250VAC
Current Rating	6A
Illuminated	No
Electrical Life	10,000 Cycles
Mounting Style	Panel
Number of Poles	1
Number of Positions	3
Operating Temperature	-25°C to +85°C
Panel Cut Out	19.2 x 13mm
Switch Operation	(On)-Off-(On)
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

(On)-Off-(On) Momentary Rectangle Rocker Switch SPDT

Momentary rectangle rocker switch with SPDT contacts and 3-position action. The switch is designed for snap-in mounting and is suitable for a wide range of applications.

(On)-Off-(On) action

SPDT contacts

4.8mm quick connect terminals

Panel cut-out: 19.2 x 13mm

Dimensions: 25 x 21 x 15mm (Height x Length x Width)

Maximum current: 6A

Maximum voltage: 250VAC
