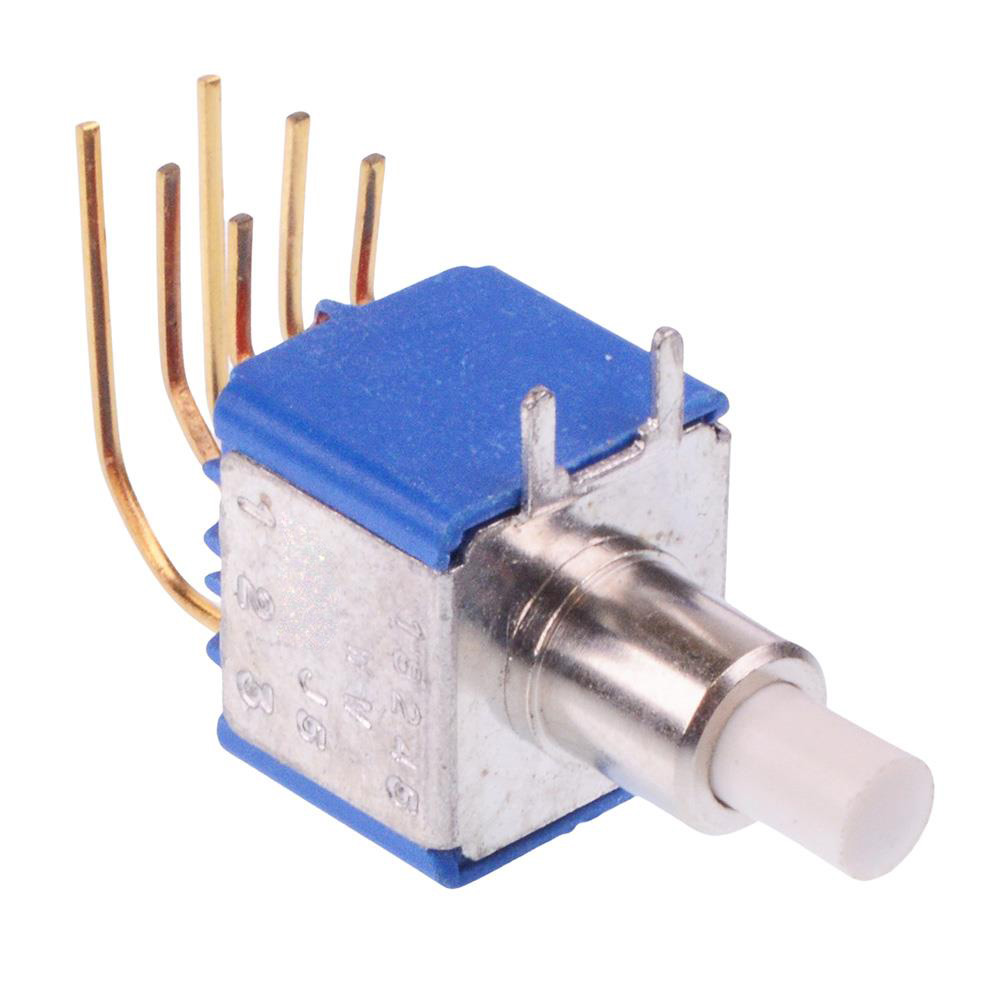

18245WWCD3 On-(On) Right Angle Momentary PCB Push Button Switch DPDT 0.1A 30VDC

18245WWCD3 On-(On) Right Angle Momentary PCB Push Button Switch DPDT 0.1A 30VDC 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	DPDT
Contact Material	Gold Plated Brass
Contact Rating	0.1A 30VDC
Current Rating	0.1A
Illuminated	No
Electrical Life	60,000 Cycles
Mounting Style	PCB
Number of Poles	2
Number of Positions	2
Operating Temperature	-30°C to 65°C
Pitch	4.7mm
Product Series	18000
Switch Operation	On-(On)
Terminal Type	Through Hole
Voltage Rating	30VDC

Description

18245WWCD3 On-(On) Right Angle Momentary PCB Push Button Switch DPDT 0.1A 30VDC
The 18245WWCD3 is a snap-action momentary push button switch featuring a positive tactile feedback when pressed, suitable for PCB applications.

On-(On) momentary operation

DPDT contacts

Rating: 0.1A 30VDC

Plain bushing

Right angle PCB terminals

Vertical mounting

Gold plated brass contacts

Short plunger (4mm diameter)

Terminal pitch: 4.7mm
