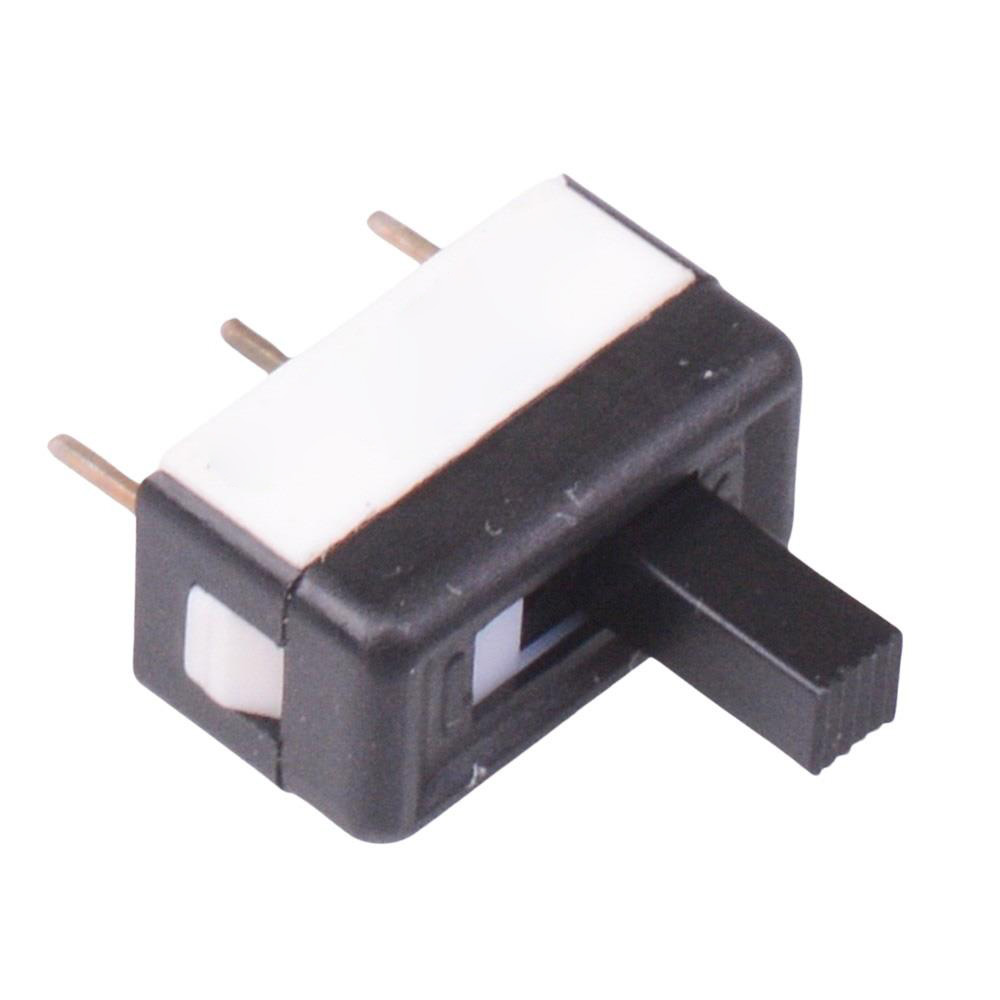

25436NAH6 On-On Professional PCB Slide Switch High Actuator SPDT

25436NAH6 On-On Professional PCB Slide Switch High Actuator SPDT 1

Buy Now

Specifications

Attributes List
Actuation	Latching
MOQ	1
Contact Configuration	SPDT
Contact Material	Silver
Contact Rating	1A 30VDC
Current Rating	1A
Electrical Life	10,000 Cycles
Material	PBT
Mounting Style	PCB
Number of Poles	1
Number of Positions	2
Operating Temperature	-40°C to +85°C
Pitch	2.54mm
Product Series	25000N
Switch Operation	On-On
Terminal Type	PCB
Voltage Rating	30VDC

Description

The 25436NAH6 is a professional grade slide switch manufactured by socoje, featuring SPDT contacts and approved to UL1054. The switch is suitable for wave soldering and a wide range of PCB mounting applications.

SPDT contacts

On-On operation

5.08mm terminal spacing

Silver contacts

6.0mm high actuator

Rating: 100mA 30VDC
