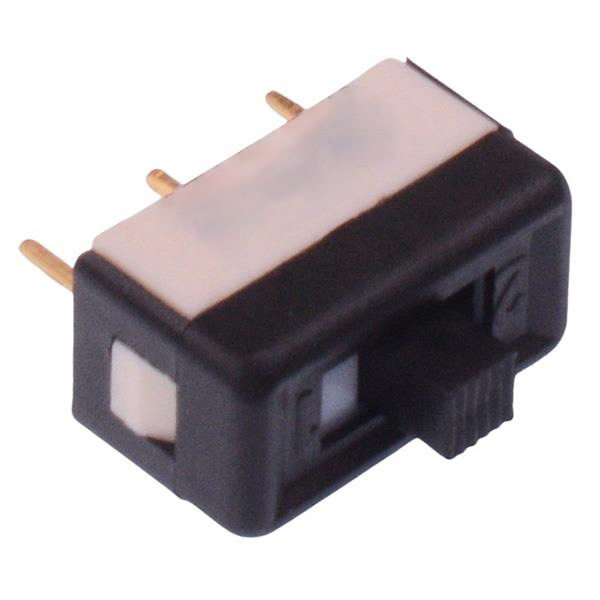

25439NLDH On-Off-On Professional PCB Slide Switch High Actuator SPDT

25439NLDH On-Off-On Professional PCB Slide Switch High Actuator SPDT 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	SPDT
Contact Material	Gold Plated Brass
Contact Rating	0.1A 30VDC
Current Rating	0.1A
Electrical Life	10,000 Cycles
Material	PBT
Mounting Style	PCB
Number of Poles	1
Number of Positions	3
Operating Temperature	-40°C to +85°C
Pitch	5.08mm
Product Series	25000N
Switch Operation	On-Off-On
Terminal Type	PCB
Voltage Rating	30VDC

Description

The 25439NLDH is a professional grade slide switch manufactured by socoje, featuring SPDT contacts and approved to UL1054. The switch is suitable for wave soldering and a wide range of PCB mounting applications.

SPDT contacts

On-Off-On operation

5.08mm terminal spacing

Gold plated brass contacts

2.8mm high actuator

Rating: 100mA 30VDC
