- Stock: In Stock
- Model: SCJ009828
- SKU: SCJ009828
Ask a Question About This Product
Brief
Description
Features
- CNC router tool with 3 axis/ 4 axis version, easyĀ operationĀ andĀ installation
- MoreĀ steadyĀ andĀ strongĀ equipedĀ withĀ aluminumĀ alloyĀ frameĀ materials
- CanĀ beĀ controlledĀ onlyĀ byĀ desktopĀ computer, notĀ suitableĀ forĀ laptop
- MachĀ 3Ā softwareĀ isĀ simpleĀ andĀ intelligent
- FlexibleĀ couplingĀ canĀ beĀ usedĀ forĀ highĀ torqueĀ transmission
- SpindleĀ motorĀ knobĀ isĀ usefulĀ forĀ smallĀ positioningĀ adjustment, withĀ steadyĀ andĀ strongĀ supportĀ structure
- TheĀ chromeĀ shaftsĀ isĀ notĀ easyĀ toĀ deform, suitableĀ forĀ longĀ timeĀ use

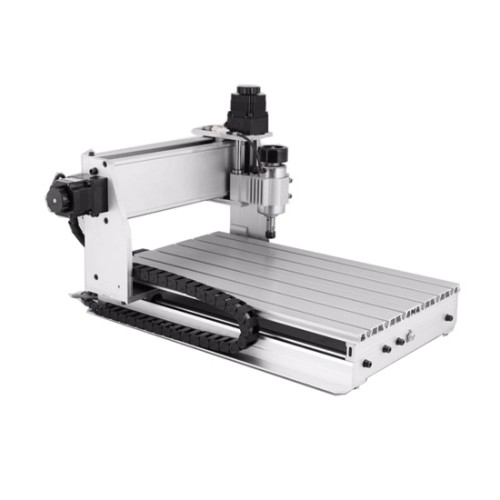

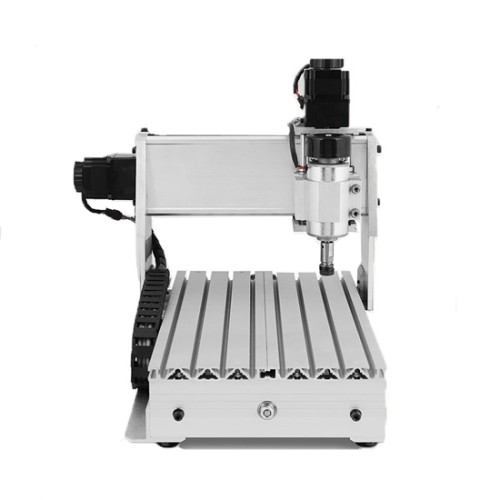

Application: This high quality CNC router is a USB engraving machine suitable for various material such as wood, plastic, MDF board, PVC, acrylic, composite board plywood. It can be used widely to process or make advertising signs, PCB, nameplates, badges, seals, bronzing plate, aluminium alloy, acryl plates, ABS resin double color plate, PVC foaming board, indentation plates, signs, construction models, instrument panels, wooden products etc..
Specification
| Router Machine Parameters | |||||
| Model | SCJ009828 | 3020T4Z | |||
| Machine Type | CNC router engraving machine | ||||
| Operating Voltage | AC 110V or AC 220V | ||||
| Frequency | 50Hz/ 60Hz | ||||
| Number of Motor Axis | 3 axis | 4 axis (added a rotation axis) | |||
| Effective Working Travel | 200 (X ) mm x 300 (Y) mm x 50 (Z) mm | ||||
| Shape Dimension | 550 x 400 x 350mm | ||||
| Max.Workpiece Dimension | 200mm x 300mm < 65mm | ||||
| Work Table Dimension | 200mm x 300mm x 15mm | ||||
| Carving Deepth | 55mm | ||||
| Frame Materials | Aluminum alloy 6063 and 6061 | ||||
| Driving Units X Axis | 1204 trapezoidal screws | ||||
| Driving Units Y Axis | 1204 trapezoidal screws | ||||
| Driving Units Z Axis | 1204 trapezoidal screws | ||||
| Sliding Units X Axis | Dia.13mm chrome plate shafts | ||||
| Sliding Units X Axis | Dia.16mm chrome plate shafts | ||||
| Sliding Units Z Axis | Dia.12mm chrome plate shafts | ||||
| Stepper Motor Type | Nema 23, two-phase, 1.45A-2A | ||||
| Spindle Motor | 200w DC motor | ||||
| Principal Axis Collet | ER11/3.175 mm | ||||
| Spindle Speed | 300-8000rpm/min (PWM stepless speed regulation) | ||||
| Repeat Accuracy | 0.05mm | ||||
| Empty Line Speed | 0-2500mm/min (16 subdivided driving down) | ||||
| Spindle Precision | Radial beat acuities 0.03 mm | ||||
| Control Unit | Triaxial one-piece drive + ring variable power + PWM speed | ||||
| Carving Instructions | G code/ TAB files/ NC file/ NCC files | ||||
| Communication Interface | Through parallel or USB connection with computer | ||||
| Software Environment | All | ||||
| Carving Speed | 0-2000mm/min (different materials differ) | ||||
| Machine Weight | 25 kg | ||||
| Certification | CE, ISO | ||||
| Warranty | 2 years | ||||
| Control Box Parameters | |||||
| Voltage | AC 110V or AC 220V, 50Hz/ 60Hz (We also stock USA, UK, EU, AU plugs) | ||||
| Control Unit | 2.5A stepper motor driver plus adjustable spindle speed controller | ||||
| Computer Connection | On board palrallel port, USB | ||||
| Command Code | G code | ||||
| Acceptable Software | Only CNCUSB | ||||
| Protection | Emergency stop button | ||||
| Package Included | |||||
| |||||
Power Plug Selection
Tips: Why the engraving accuracy of CNC router is an important parameter?
CNC router machine engraving accuracy directly affects the quality of the workpiece processed by the engraving machine. Setting aside the quality of the workpiece itself, the better the engraving accuracy, the better the quality of the processed workpiece. The engraving accuracy of a engraving machine mainly depends on two aspects, one is positioning accuracy, and the other is repeated positioning accuracy.
1. Positioning accuracy of CNC router engraving machine
The positioning accuracy of the engraving machine can be understood as the error of the tool reaching a specified coordinate of the workpiece, and this error is expressed by "Ā±". For example, a value such as Ā± 0.005mm represents the error between the actual coordinates and the ideal coordinates after the tool reaches the specified coordinates. This is an intuitive understanding of positioning accuracy.
2. Repeated positioning accuracy of CNC router engraving machine
When the engraving machine is actually processing, it is often necessary to perform multiple processing with different tools on the same coordinate. The repeat positioning accuracy is the error between the actual and ideal coordinates of the tool reaching the specified coordinates multiple times. The parameter form is the same as the positioning accuracy, but the repeated positioning accuracy is generally more accurate than the positioning accuracy.
