50W Desktop Fiber Laser Marking Machine,Fiber Laser Engraver 6.9in

Buy Now

Specifications

attribute-list
Model	80mm
Laser Power	50W
Laser Type	JPT
Marking Area	175175mm(6.96.9in)
Lens Size	175175mm(6.96.9in) 1064nm
Lens Brand	SOCOJE
Max. Material Thickness	206mm(8.1in)
Repetition Rate	1-400kHZ.
Control board	BJ JCZ board(Original)
Package Weight	154KG by Wooden Box
Program	EZCAD Stable performance and high reliability.
Engraving Depth	≤1mm(0.039in)
Output Power Adjustment Range	10%-100%
Marking Speed	7m/s(275.6in/s)
Min. Line Width	0.01mm(0.0004in) Depends on the material
MIn. Character	0.2mm(0.008in) Depends on the material
Electrical Requirements	110V 50hz
Marking Interface	USB connection.Compatible with Windows XP/Vista/7/8/10.
Power Consumption	1000W
Communication MODE For Automation	TCP/IP, IO, RS232
Marking Content	Barcodes,serial number,text,vector,and logos
Weight	5.7KG
Internal Clamping Range(A-A1)	2-22mm
Clamping Range(B-B1)	25-70mm
External Clamping Range(C-C1)	22-63mm
Elevation Angle	45/90°

Description

About this product

1. Metal Deep Engraving

2. Metal Surface Processing

3. High Frequency Line Processing

4. Silicone Keypad Marking

5. F-theta Scan Lens.Typically distortion less than 1%, Air-spaced design and high efficiency AR coatings excellent throughput and durability.

6. EZCAD Stable performance and high reliability,ensuring higher stability and shield-utilizing part of complex functions. Compatible with Windows XP/Vista/7/8/10.

SFX Fiber Laser Engraving Machine For Metal Desktop Marker Fiber Laser Engraver 50W, 175×175mm+D80 Rotary Axis

80mm Rotary Axis

-- 80mm (3.15in) Three-jaw Rotary Axis + Drive.
-- Internal Clamping Range : 2-22mm. External Clamping Range : 22-63mm
-- This rotary fixture is mainly for small hardware such as rings , bracelets , Cigarette holder , Pen , Bearinge,tc.
-- Rotary spring clamping , fast mounting and dismounting to improve work efficiencyAccurate Position.180°Rotary Positioning.Stable Positioning.
-- Industrial Standard Interface. Use Aviation Plug Fits Various Board Card

Machine Parameters

Marking Area : 175×175mm(6.9×6.9in)
Maximum Material Thickness : 206mm(8.1in)
Laser Type : Lasers Repetition Rate:1-400kHZ
Control board : BJ JCZ board(Original)
Program : EZCAD2 (Compatible with Windows XP/Vista/7/8/10)
Output poweradjustment range : 10%-100%
Marking Speed : ≤7000mm/s(275.6in/s)
Engraving Depth : ≤1mm(0.039in)
Power consumption : 1000W
Electrical Requirements : 110V-240V/50Hz-60Hz(According to local electricity supply).
Connection：USB Connection.Compatible with Windows XP/Vista/7/8/10.

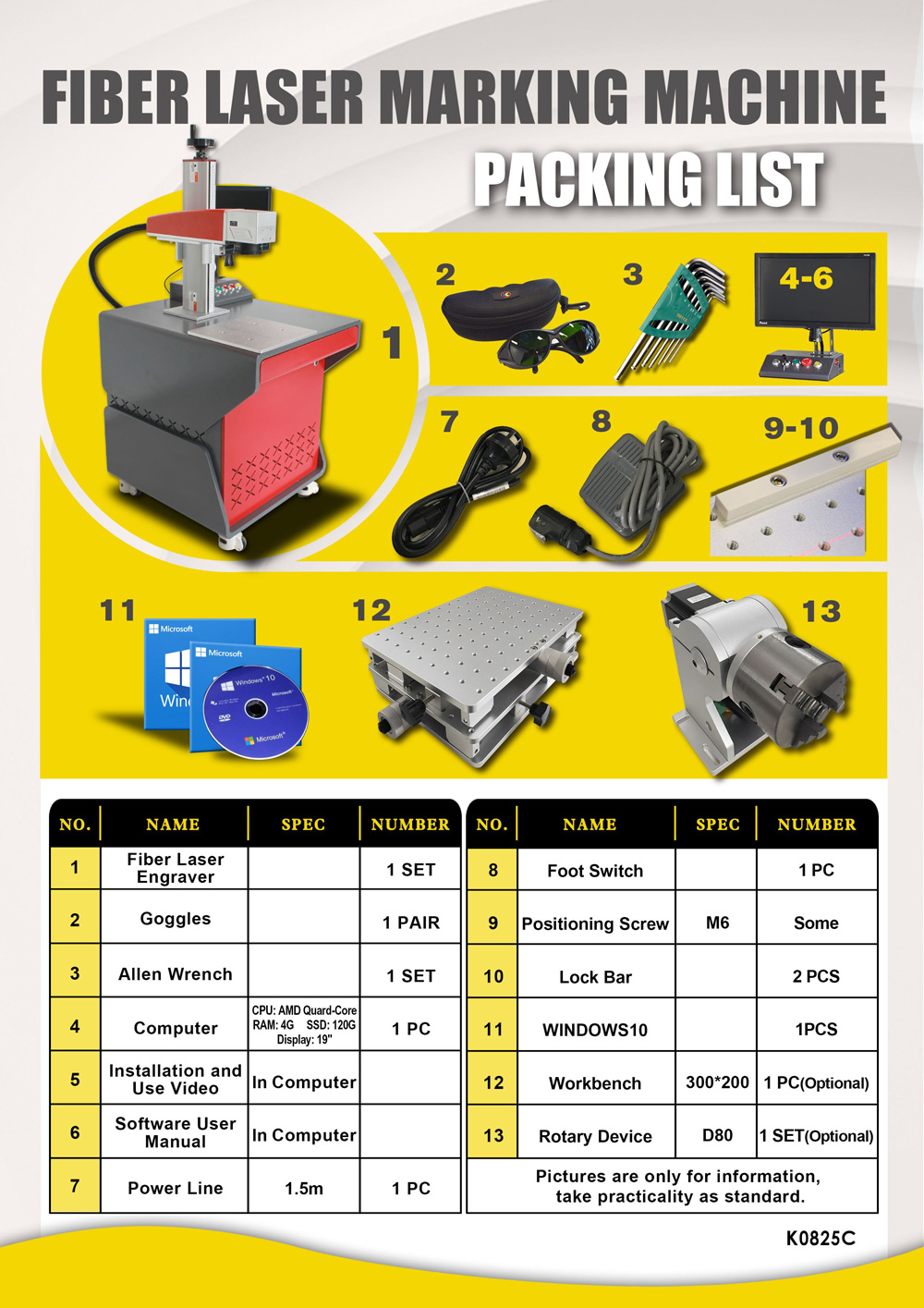

Regular Packing List:

50W Laser Engraver
175 × 175mm Lens. Brand : SOCOJE
80mm Rotary Axis
Desktop Computer configuration : CPU : AMD Quad Core. RAM : 4G. SSD:120GB. Display : 19''
