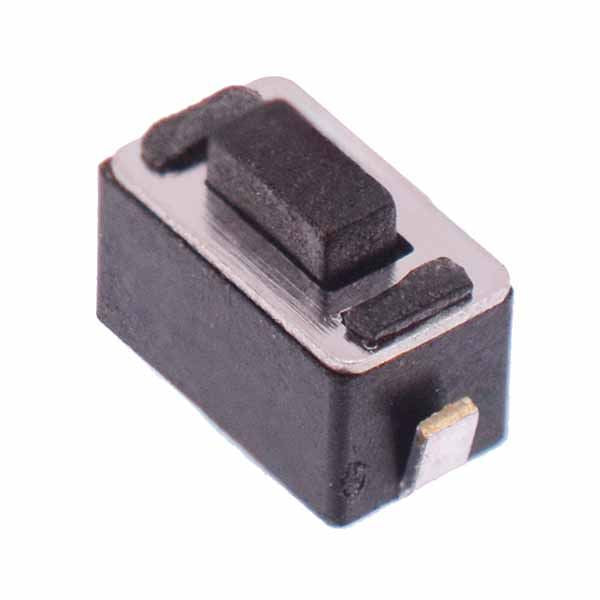

6x3.5x4.3mm SMT Momentary PCB Tactile Switch

6x3.5x4.3mm SMT Momentary PCB Tactile Switch 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Height	4.3mm
MOQ	10
Contact Configuration	SPST
Contact Rating	50mA 12VDC
Current Rating	50mA
Electrical Life	100,000 Cycles
Mounting Style	PCB
Number of Positions	2
Operating Force	180gf
Operating Temperature	-20°C to +70°C
Switch Operation	Off-(On)
Terminal Type	Through Hole
Voltage Rating	12VDC

Description

4.3mm height miniature tactile switch housed in a 6.0 x 3.5mm package suitable for PCB mounting.

4.3mm height

SPST normally open contacts

Positive click action

4 terminal mounting

Rating: 50mA 12VDC

180gf operating force

Download
