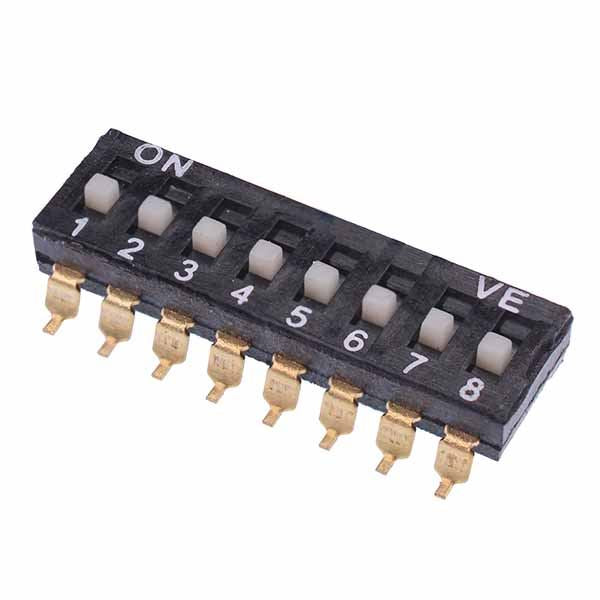

8 Way SMD DIL Switch 2.54mm

8 Way SMD DIL Switch 2.54mm 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Black
Contact Configuration	SPST
Contact Rating	25mA 24VDC
Current Rating	25mA
Electrical Life	1,000 Cycles
Material	PPS
Mounting Style	Through Hole
Number of Positions	2
Number of Ways	8
Operating Force	8N
Operating Temperature	-40°C to +85°C
Pitch	2.54mm
Switch Operation	On-Off
Terminal Type	Solder
Voltage Rating	24VDC

Description

8 way low profile DIL switch featuring SPST contacts and a 2.54mm pitch, suitable for mounting to a PCB.

8 ways

2.54mm terminal pitch

Switching rating: 25mA 24VDC

Steady state rating: 100mA 50VDC

SPST contacts

Height above PCB: 3.8mm

Body width: 6.8mm
