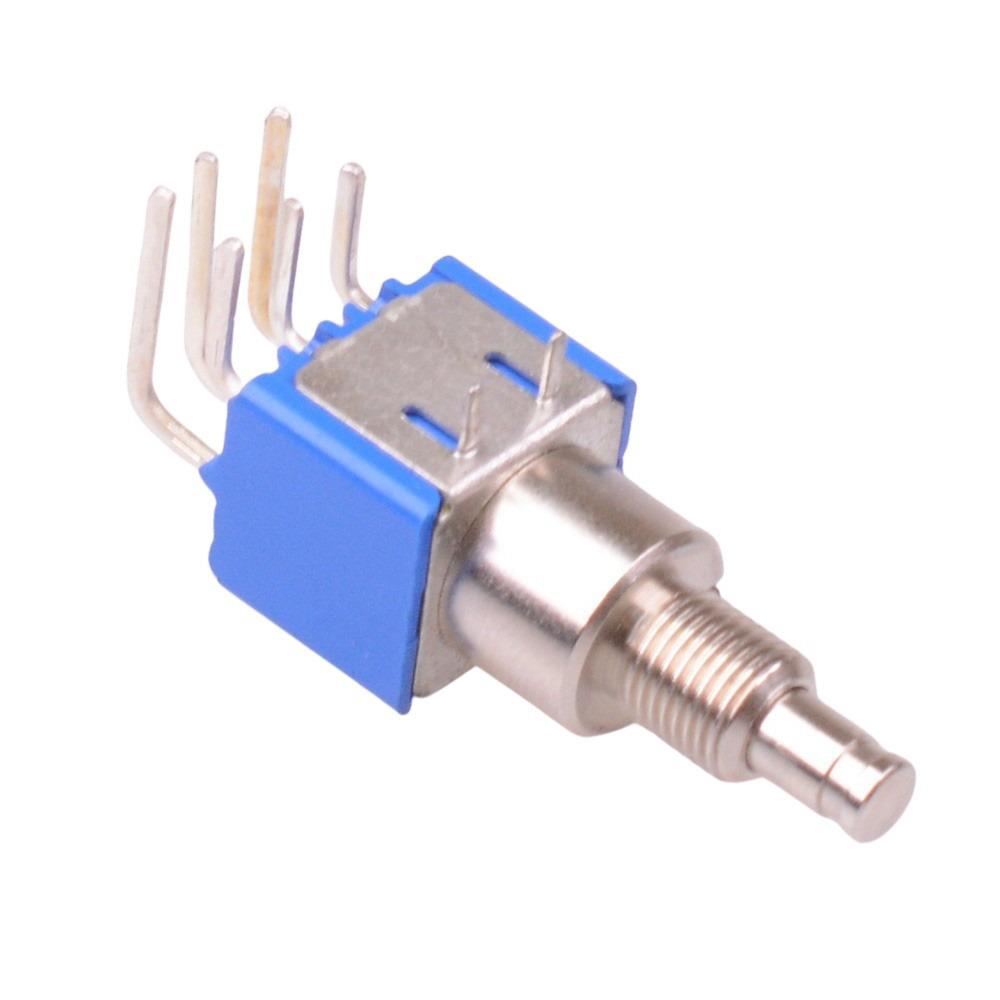

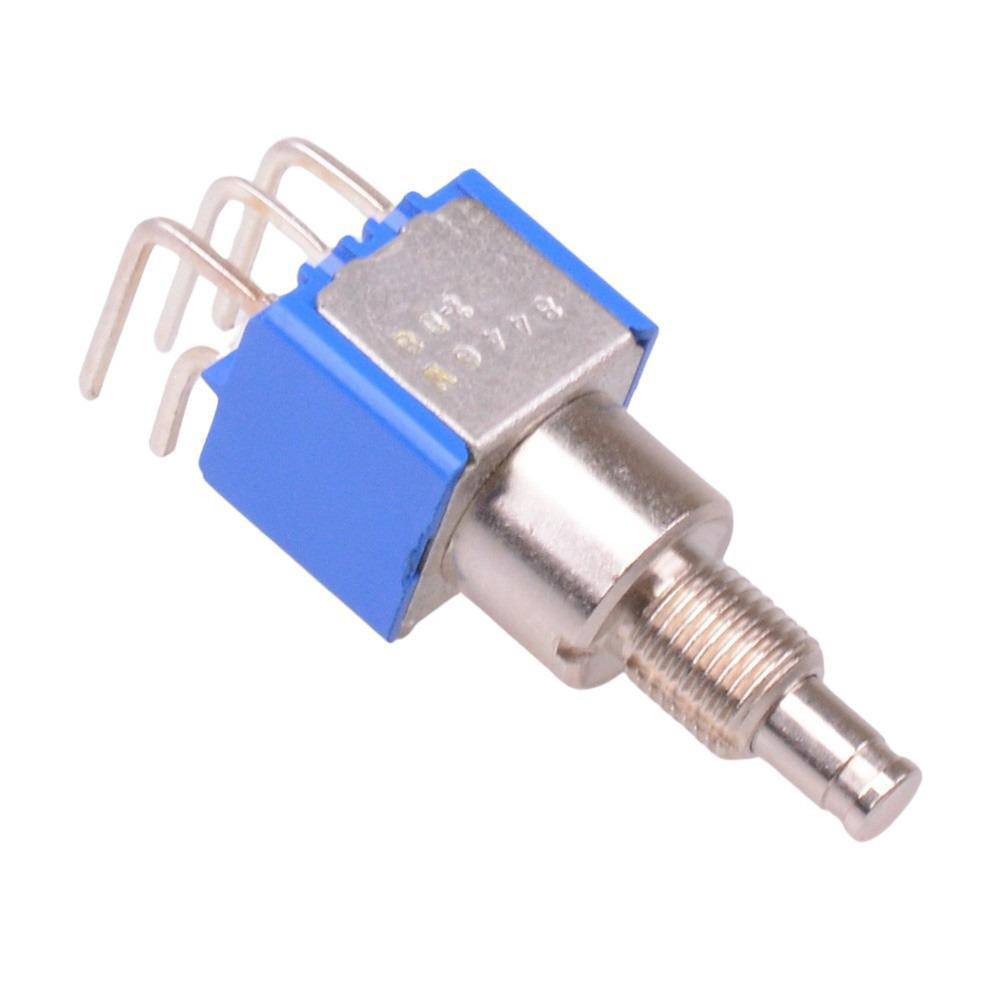

Latching On-On Right Angle PCB Push Button Switch DPDT 8446WA

Latching On-On Right Angle PCB Push Button Switch DPDT 8446WA 1

Buy Now

Specifications

Attributes List
Actuation	Latching
MOQ	1
Contact Configuration	DPDT
Contact Material	Silver
Contact Rating	4A 30VDC
Current Rating	4A
Illuminated	No
Electrical Life	30,000 Cycles
Mounting Style	PCB
Number of Poles	2
Number of Positions	2
Operating Temperature	-40°C to +85°C
Panel Cut Out	6.5mm
Pitch	4.0mm
Product Series	8000
Switch Operation	On-On
Terminal Type	Solder
Voltage Rating	30VDC

Description

Latching On-On Right Angle PCB Push Button Switch DPDT 8446WA

The 8446WA is a On-On latching push button switch by socoje, featuring SPDT contacts and 6.35mm bushing. The switch features 4A 30VDC rating and right angle PCB terminals.

SPDT contacts

On-On latching function

Right angle PCB terminals

Silver contacts

6.35mm threaded bushing

Rating: 4A 30VDC

Terminal pitch: 4.0mm
