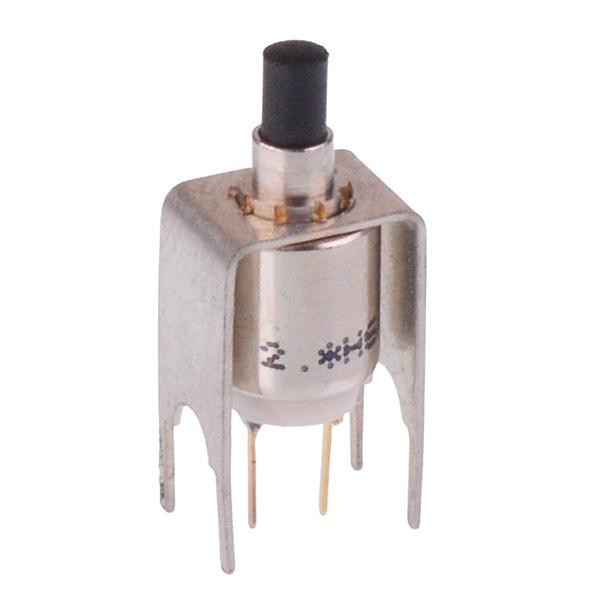

9232YCD Subminiature Right Angle Momentary Normally Closed Push Button Switch SPST

9232YCD Subminiature Right Angle Momentary Normally Closed Push Button Switch SPST 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	SPST
Contact Material	Gold Plated Brass
Contact Rating	0.1A 30VDC
Current Rating	0.1A
Illuminated	No
Electrical Life	100,000 Cycles
Mounting Style	PCB
Number of Poles	1
Number of Positions	2
Operating Temperature	-30°C to +65°C
Product Series	9000
Switch Operation	On-(Off)
Terminal Type	Through Hole
Voltage Rating	30VDC

Description

The 9232YCD is a subminiature momentary push button switch manufactured by socoje, with SPST contacts and plain bushing. The switch features solder terminals and is suitable for low power pcb mount applications.

SPST-NC contacts

Plain bushing

Gold plated brass terminals

Rating: 0.1A 30VDC

Support bracket

Terminal pitch: 7.62mm

Case height: 8mm
