Subminiature Off-(On) Normally Open Push Button Switch SPST 9633NCDKX944

Subminiature Off-(On) Normally Open Push Button Switch SPST 9633NCDKX944 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	SPST
Contact Material	Gold Plated Brass
Contact Rating	0.1A 30VDC
Current Rating	0.1A
Illuminated	No
Electrical Life	250,000 Cycles
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Operating Temperature	-30°C to +65°C
Panel Cut Out	6.5mm
Product Series	9600
Switch Operation	Off-(On)
Terminal Type	Solder
Voltage Rating	30VDC

Description

Subminiature Off-(On) Normally Open Push Button Switch SPST 9633NCDKX944

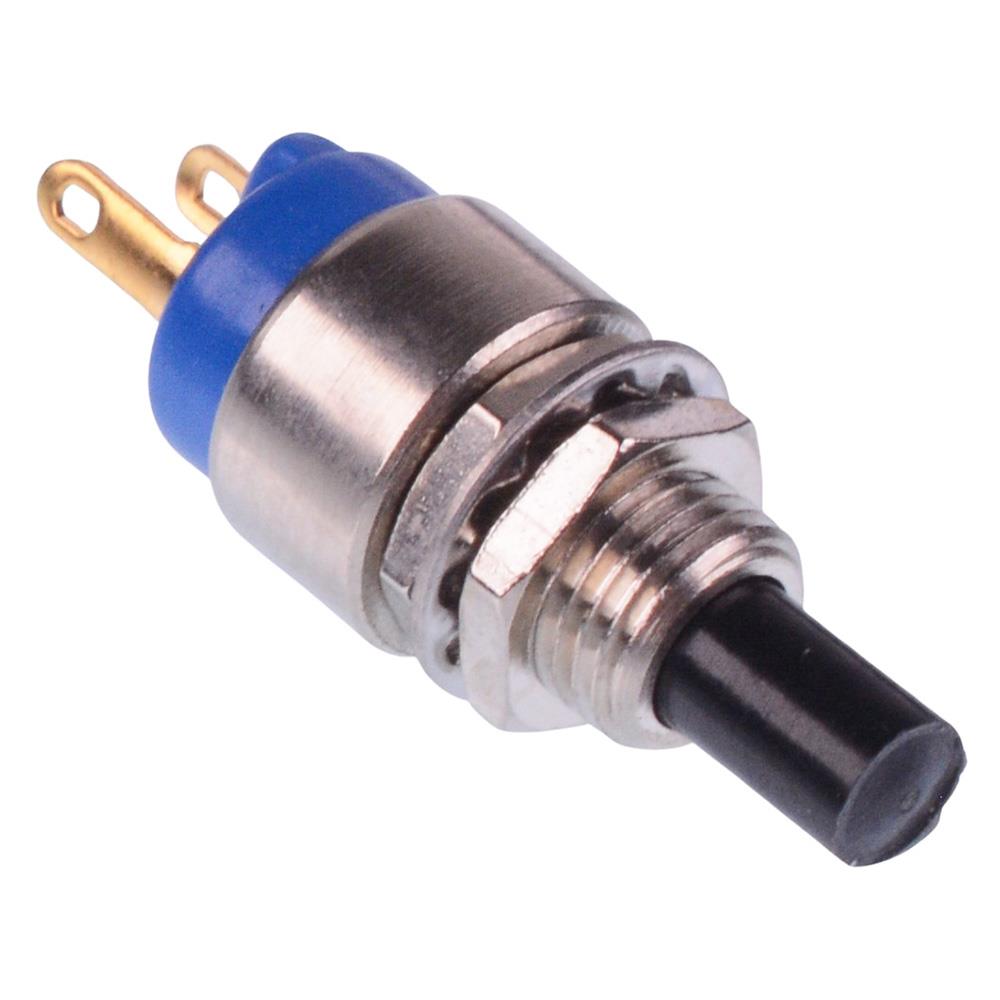

The 9633NCDKX944 is a subminiature momentary push button switch manufactured by socoje, with SPST contacts and 6.35mm bushing. The switch features solder terminals and is suitable for low power panel mount applications.

SPST-NO contacts

6.35mm threaded bushing

Gold plated terminals

Rating: 0.1A 30VDC

Panel cut-out: 6.5mm
