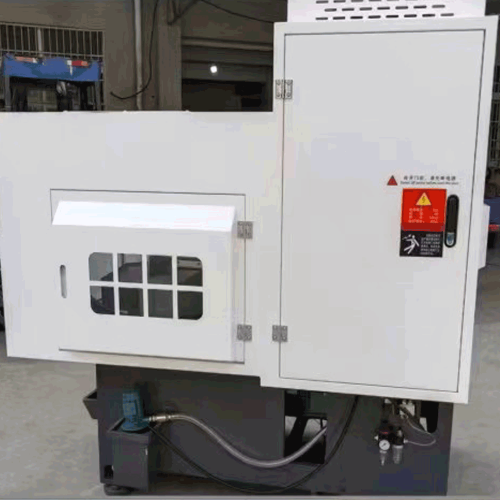

CNC Lathe Machine - GS-0625 - Flat Bed - Horizontal for Metal Processing - Main Spindle Rotation Speed 0-5000rpm

Buy Now

Specifications

Industry-specific attributes
Type	Horizontal
Max. Length of Workpiece (mm)	400
Other attributes
Condition	New
Machining Capacity	Medium Duty
CNC or Not	CNC
Spindle Bore(mm)	25
Place of Origin	Zhejiang, China
Spindle Motor Power(kW)	2.2
Weight (KG)	750
Number of Axes	3
Key Selling Points	High-accuracy
Travel (X Axis)(mm)	250 mm
Showroom Location	None
Travel (Z Axis)(mm)	250 mm
Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Home Use, Retail, Construction works , Energy & Mining
Marketing Type	New Product 2020
Tool Post Stations	4
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Core Components	Bearing, Motor, Pump, PLC, Engine
Model Number	GS-0625
Voltage	220V/380V,50HZ
Dimension(LWH)	120011001620
Max. Spindle Speed (r.p.m)	5000 r.p.m
Year	2022
Max. Weight of Workpiece(kg)	100
Product name:	CNC Lathe Mechine
Width of bed (mm)	290 mm
Max. Turned Length (mm)	250
No. of Spindles	4
Precision	0.003mm
Type	Horizontal
Function	Machining Metal Lathe
Positioning Accuracy (mm)	±0.003
Repeatability (X/Y/Z) (mm)	±0.003
Color	Customized Color Acceptable
CNC Control System	CUSTOMIZED
Toolpost Brand	CUSTOMIZED
Chuck	3 Jaw Chuck
Max. swing over bed	250mm
Controlling Mode	CNC Automatic CNC Lathe Machine
Packaging and delivery
Packaging Details	Each CNC Lathe Machine is wrapped with stretch film or packed in a wooden case.
Port	ningbo/shanghai/shenzhen
Supply Ability
Supply Ability	500 Set/Sets per Month 500sets/mon drilling machine

Description

CNC Lathe Machine Flat Bed - Horizontal for Metal Processing - Main Spindle Rotation Speed 0-5000rpm

Product Description

Specification

Max. Spindle Speed (r.p.m)	5000r.p.m
Spindle Bore(mm)	25
Width of bed (mm)	290mm
Spindle Motor Power(kW)	2.2
Travel (X Axis)(mm)	250mm
Travel (Z Axis)(mm)	250mm
Positioning Accuracy (mm)	±0.003
Dimension(LWH)	120011001620
Model Number	GS-0625
Voltage	220V/380V,50HZ
Weight (KG)	750
Product name	CNC Lathe Mechine
Chuck	3 Jaw Chuck
Type	Horizontal
Function	Machining Metal Lathe
Max. swing over bed	250mm

China Supplier Flat Bed Horizontal CNC Lathe Machine GS-0625 for Metal Processing Main Spindle Rotation Speed 0-5000rpm
