ER-32 R8 x 4 inch 12 ps/set ER Collet Systems with R8 Shank

Buy Now

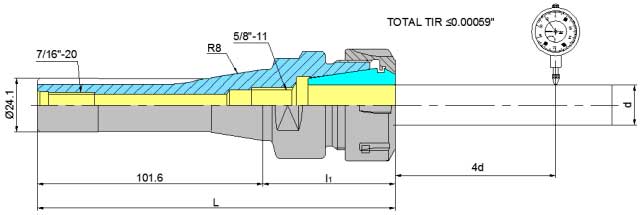

Specifications

attribute-list
Size	R8 ER32
TOTAL TIR	≤0.00059"
Through Coolant	YES
Collet Nut Diameter	1-31/32"
Rear Thread	7/16"-20
Collet Qty	12Pcs
Collet Range	3/32" - 3/4"
GROSS WEIGHT	7.16 lbs
Projection L1	2.36"
Overall Length (L)	6.36"
Meas	13.58 x 11.02 x 3.94 in.
Net weight	5.84 lbs

Description

About this product

1. 12pcs. Set includes the following collet sizes:3/32", 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16" and 3/4"

2. All collets are made of high quality alloy spring steel 0.0005" accuracy

3. The thread for an R-8 drawbar is 7/16(.4375) x 20 tpi

4. 1pc R8-ER32 collet chuck, 12PCS ER32 collets, 1pc ER32 spanner

1. 12pcs. Set includes the following collet sizes:3/32", 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16" and 3/4"

2. All collets are made of high quality alloy spring steel 0.0005" accuracy

3. The thread for an R-8 drawbar is 7/16(.4375) x 20 tpi

4. Hardened and precision ground

5. 1pc R8-ER32 collet chuck, 12PCS ER32 collets, 1pc ER32 spanner

6. Suitable for all milling and drilling operations

7. Wide holding range requires fewer collets and changes

8. Fitted plastic case
