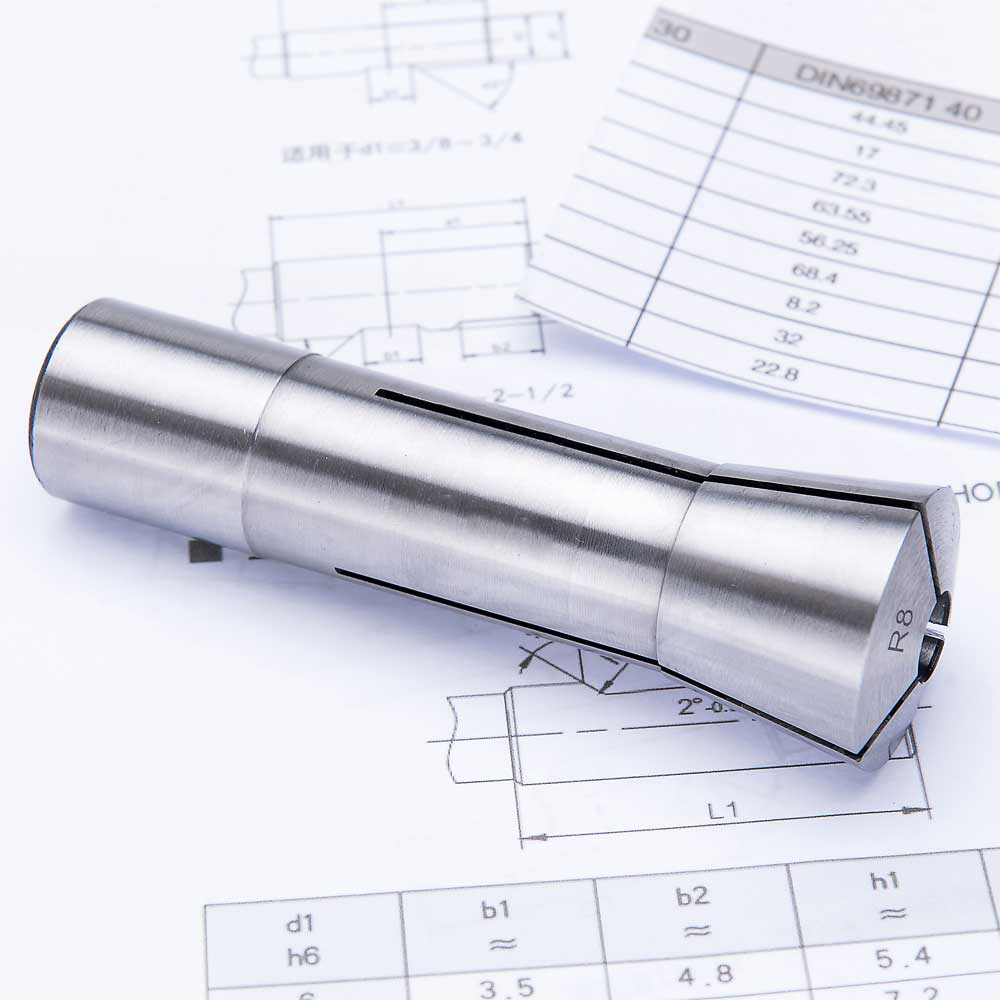

High Precision 1/8 inch, 7/8 inch Round R8 TIR Hardened

Buy Now

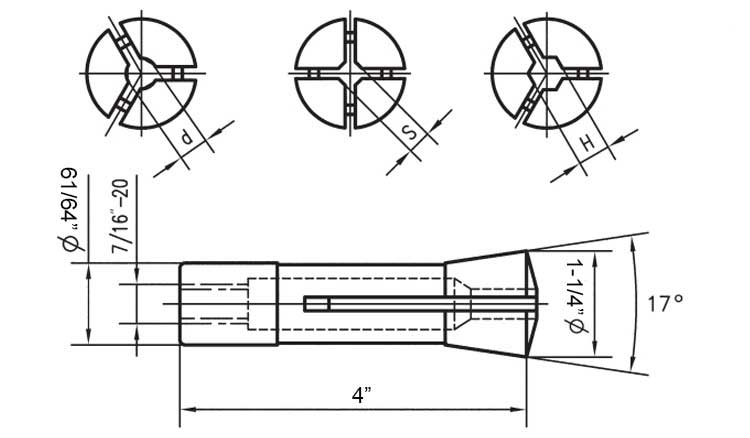

Specifications

attribute-list
Brand	SOCOJE
Material	65Mn Steel
Overall Length	4"
Condition	Brand New
Hole type	Round
Top Diameter	ø 1-1/4"
Bottom Diameter	61/64"
Drawbar Thread	7/16"-20
Run out	0.0006''
Package size	4.33'' × 1.38'' × 1.38''
Gross Weight	0.68 lb
Net Weight	0.53 lb

Description

About this product

1. Material: 65Mn

2. Hardness: clamping part HRC55～60, elastic part HRC40～45

3. Drawbar thread: 7/16" - 20 UNF

4. High precision, Run-out tolerance 0.0006"

Collet Size (d)	Hole Diameter	Net weight
R8-1/8"	1/8"	0.65 lb
R8-7/8"	7/8"	0.53 lb

1. Made of highest grade steel available.

2. Hardened and ground throughout

3. Used for holding workpieces in a lathe or other machine tool
