High Precision 3/16 inch ~ 15/16 inch Series Round 5C Collet 0.0006 inch TIR Hardened

Buy Now

Specifications

attribute-list
Collet Category	5C Collets
Collet Style	Round

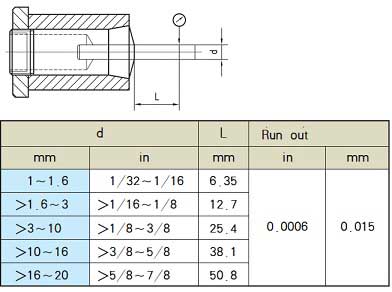

TIR (INCH)	0.0006"
Collet Material	65Mn

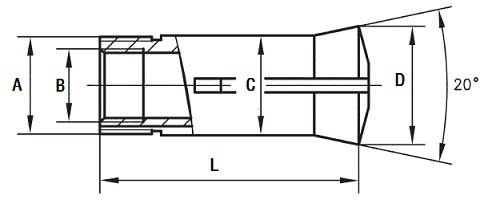

Drawbar Thread Size (B)	1.041-24
Overall Length (L)	3.28" (83.3mm)
External Thread Size (A)	1.242-20
Dia. (C)	1.25" (31.75mm)
Dia. (D)	1.469" (37.3mm)

Description

About this product

1. Hole size 9/16''

2. Collet style: 5C Round

3. Material: 65Mn

4. T.I.R.: 0.0006"

5. Widely used on lathe machine with 5C spindle and fixtures 5C hole

⒈ Material: 65Mn.
⒉ Hardness: clamping part HRC 55～60 elastic part HRC 40～45

⒊ This unit is applicable to all sorts of lathes, which spindle taper hole is 5C, such as automatic lathes, CNC lathes etc.
