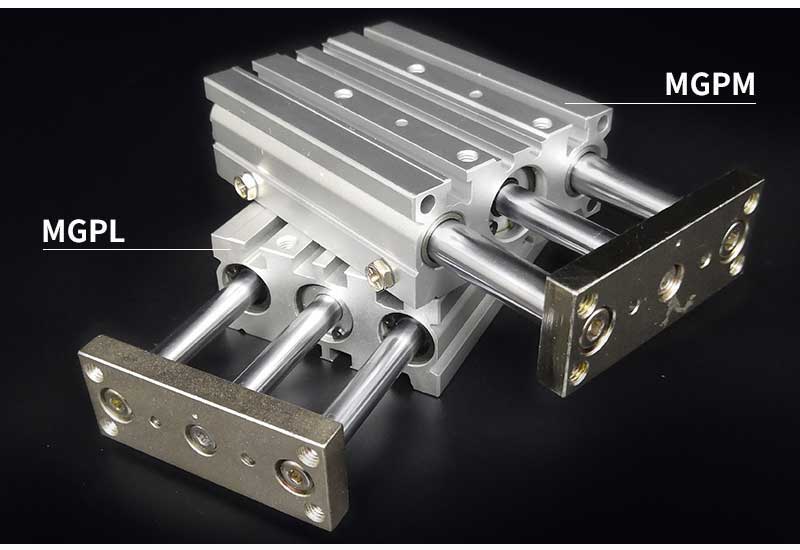

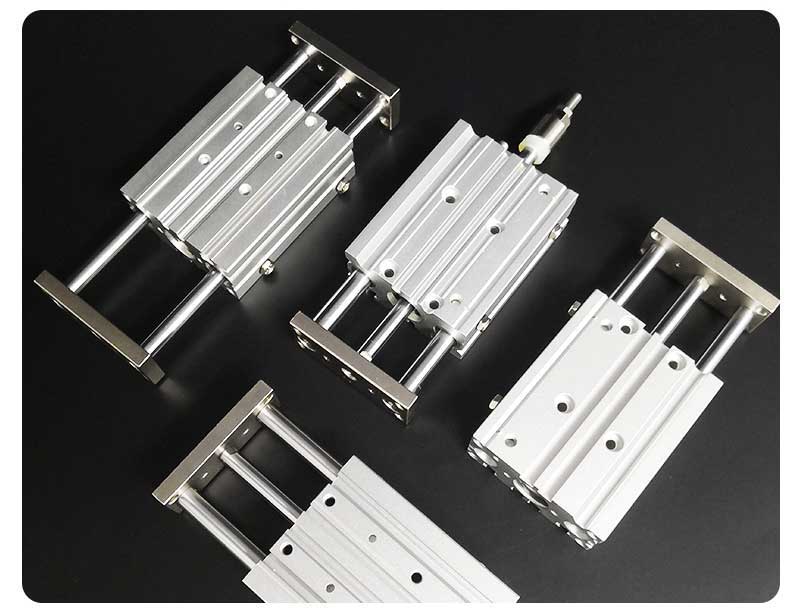

MGPM50X25 MGPM50X50 MGPM50X75 MGPM50X100 MGPM50X125 MGPM50X150 MGPM50X200 Tri-rod MGPL TCM TCL pneumatic cylinder

from

$291.51

Ex Tax: $291.51

Products Sold: 0

Product Views: 299

Maximum Stroke

500mm

Shaft Diameter

50mm

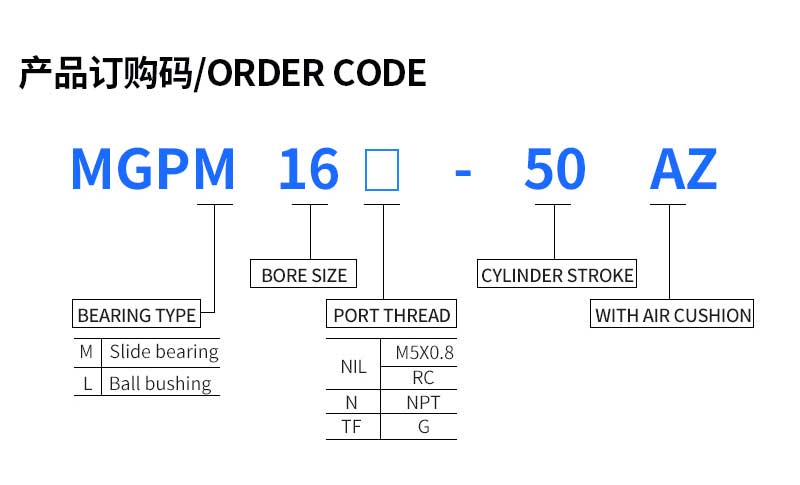

Model Number

Qty

Other attributes
Condition	New
Place of Origin	Shanghai, China
warranty:	3 months
Applicable Industries:	Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Construction worksxa0, Energy & Mining, Food & Beverage Shops, Advertising Company
Standard or Nonstandard	Standard
Marketing Type	New Product 2020
Machinery Test Report	Not Available
Body Material:	Aluminum
Video outgoing-inspection	Provided
Operation Fluid	Air
Warranty of core components	Not Available
Core Components	cylinder
Anti-pressure testing pressure	1.5Mpa(15.3kgf/c㎡)
Power	Pneumatic
Operation Pressure	1.5Mpa(15.3kgf/c㎡)
Min Operation Pressure	1.5Mpa(15.3kgf/c㎡)
Ambient and fluid temperature	5~+60℃
Bore size	12--100 Mm
Piston Speed	50~500mm/s
Buffer	Rubber Buffer

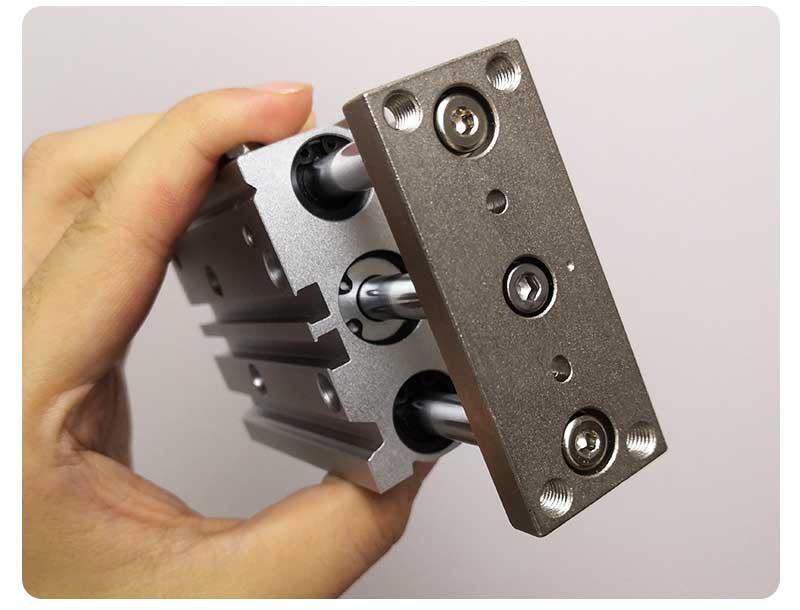

Product name:	MGPM Bore 50mm Tri-rod PNEUMATIC cylinder
Structure:	General Cylinder
Operation	Double Acting
Packaging and delivery
Selling Units:	Single item
Single package size:	9.5X10X5 cm
Single gross weight:	13.000 kg
Packaging Details	20PCS/CARTON for MGPM Bore 50mm Tri-rod cylinder
