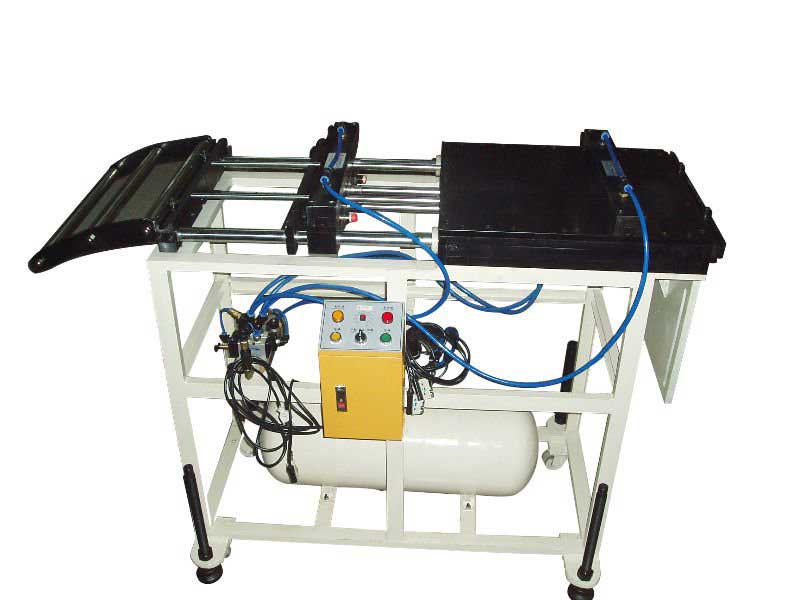

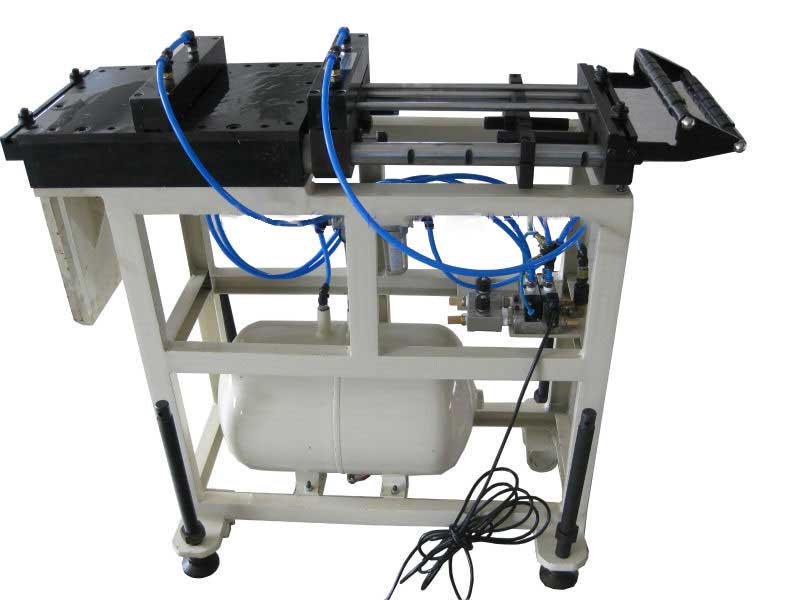

Metal sheet feeding machine pneumatic air feeder for punching press machine
from
$999.00
Ex Tax: $999.00
10 or more $699.00
- Stock: In Stock
- Model: SCJ006748
- SKU: SCJ006748
Products Sold: 0
Product Views: 315
Ask a Question About This Product
- Description
Product Description
Specification:
Type | Strip Width Max. | Stroke max. | Strip Thickness Max. | Max. Stroke/min |
AF-1C | 50mm | 50mm | 0.5mm | 250 |
AF-2C | 65mm | 80mm | 0.8mm | 200 |
AF-3C | 80mm | 80mm | 1.2mm | 180 |
AF-4C | 100mm | 130mm | 1.5mm | 130 |
AF-5C | 150mm | 150mm | 2.0mm | 100 |
AF-6C | 200mm | 200mm | 2.0mm | 50 |
AF-7C | 250mm | 250mm | 2.5mm | 50 |
AF-8C | 300mm | 300mm | 2.5mm | 45 |
AF-9C | 350mm | 350mm | 3.0mm | 35 |
AF-10C | 400mm | 400mm | 3.0mm | 30 |
| AF-11C | 450mm | 450mm | 3.0mm | 25 |
Features:
Coil stock can be fed in any direction or angle at any time during the machine cycle. A single feed can push or pull through long or short progressions.
A variety of stock widths and thicknesses can be fed at different speeds and feed lengths. Two or more strips can be simultaneously fed by the same feed.
