Precision U-Type Multi Spindle Head (MU110) for Drilling and Tapping - Motor Included

Buy Now

Specifications

Other attributes
Place of Origin	Zhejiang, China
Weight (KG)	20
Showroom Location	None
Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Control	gear drive multi-spindle head
Marketing Type	Ordinary Product
Machinery Test Report	Provided
Maximum Torque	by case
Drive	Motor
Video outgoing-inspection	Provided
Operating Speed	by case
Core Components	Engine, Gear
Collet	ER collet multi-spindle head
number of the axis	2 axis multi-spindle head
modle	U-110 multi-spindle head
Description	precision multi-spindle head
Name	multi-spindle head
Type	U type multi-spindle head
Application	DRILLING
Material	aluminum multi-spindle head
Color	Silver multi-spindle head
Packaging and delivery
Selling Units:	Single item
Single package size:	35X35X20 cm
Single gross weight:	13.000 kg
Packaging Details	wooden crate with fumigation process

Video

Description

Precision U-Type Multi Spindle Head (MU110) for Drilling and Tapping - Motor Included

Product Description

U-type Adjustable Multi-spindle Head
Dimensions / Model		U110	U165	U200	U250	U300
Max. Spindle Pitch		110 mm	165 mm	200 mm	250 mm	300 mm
Min. Spindle Pitch		13 26 28 mm	13 26 28 mm	13 26 28 mm	13 26 28 mm	13 26 28 mm
Max. Working capacity	Drilling	5/6 7/9 10/13 mm	5/6 7/9 10/13mm	5/6 7/9 10/13mm	5/6 7/9 10/13 mm	5/6 7/9 10/13 mm
	Tapping	5/6 7/9 10/13	5/6 7/9 10/13	5/6 7/9 10/13	5/6 7/9 10/13	5/6 7/9 10/13
RPM Ratio to Main Spindle		1:1	1:1	1:1	1:1	1:1
Numbers of Spindle		2~6	2~10	4~12	4~16	4~16

Product Images

Precision Drilling Tapping Head Multi Spindle Head Motor U Type Multi-spindle Head by Case MU110

Detailed Images

Machine Parts

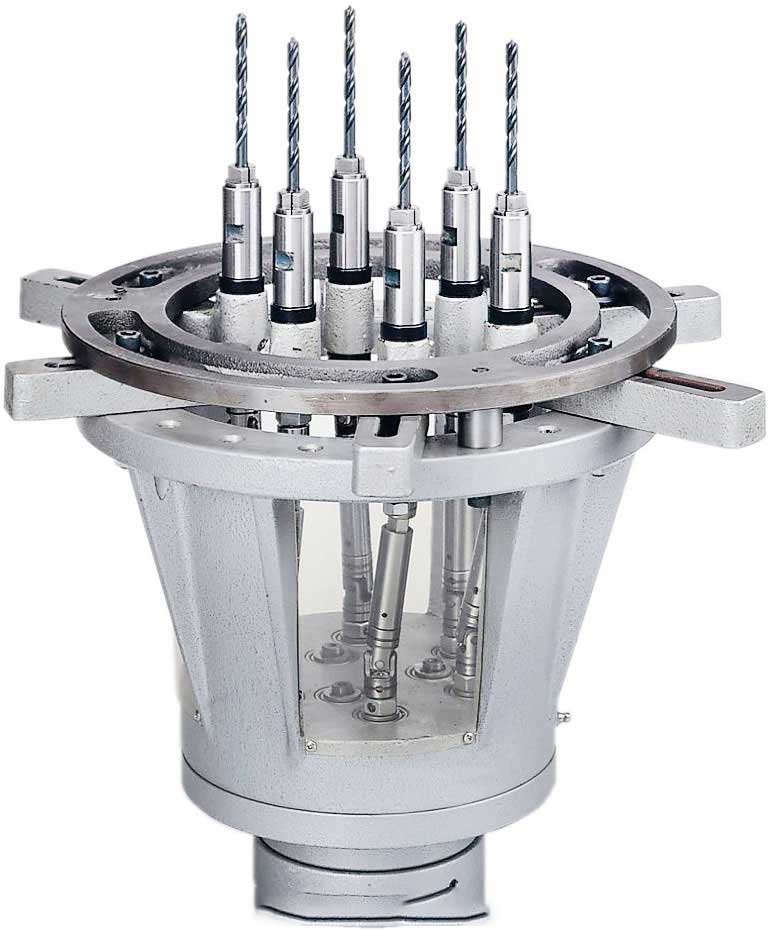

Name: U-type Adjustable Multi-spindle Head

Main Features

Name: output shaft

Machine Parts

Name: Nut

Main Features

Name: ER Collet
