Socoje VM25L 7" x 27" Benchtop Milling Machine Variable Speed 100-2250 RPM 1.5HP(1100W) Brushless Compact Mill Drill with R8 Spindle

Buy Now

Specifications

attribute-list
Model No.	VM25L
Item No.	10203275
Table size:	27-9/16" x 7 - 1/16"
Max. Drilling Capacity	1"
Max. End Milling Capacity	5/8"
Max. Face Milling Capacity	2-1/2"
Spindle Stroke	2"
Range of Spindle Speeds	Variable 100-2250 rpm
Taper of Spindle	R8
Drawbar	7/16"-20
GROSS WEIGHT	302 lbs
Max. Distance Spindle to Table	13"
Max. Distance Spindle to Column	7-1/2"
Packing Size	29-1/2" x 27-3/4"x37-3/8"
T-Slot Size	3 @ 7/16"
T-Slot Centers	2-1/2"
Cross Travel (Y-Axis)	5-1/2"
Longitudinal Travel (X-Axis)	18-7/8"
Power Requirement	Single Phase 110V 60Hz
Vertical Travel (Z-Axis)	11-1/8" (w/o spindle cover) 10-7/8" (w/ spindle cover)
Table Leadscrew Pitch	10 TPI (.100" Per Turn)
Headstock Tilt Lef&Right	±90°
Motor Power (Brushless type)	1.5 HP
Net weight	255 lbs

Description

About this product

1. 3rd generation mill has excellent value and good features found on larger mill drills. It is easily operated by novice, also great for a dedicated.

2. Big powerful 1.5 HP (1100W) Brushless DC Variable Speed Motor

3. Single speed tooth belt driving system with 100-2250 RPM speed, provides easy and reliable operation, super silence runnning

4. Su per-rigid precision-ground dovetail headstock column and table ways, precision handwheel control for X, Y, and Z-axis

5. All leadscrews are true inch pitch screws, larger dials with .002" graduate for easier reading

Want TOP quality from China? Come to , you can get the excellent value!

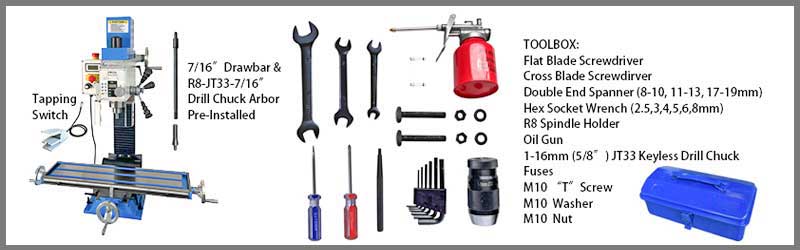

STANDARD ACCESSORIES:

- Keyless drill chuck capacity 5/8" with JT33 taper

- Drill chuck arbor R8/JT33-7/16"

- 7/16" -20 Drawbar

- Tapping pedal

- Toobox & tools

- Technical documentation

New update features with Keyless Chuck, Metal oil gun & Toolbox, Foot tapping switch, Super Value!

· Variable speed enables to operate easily

· Spindle is supported by high precision taper roller bearing

· Spindle RPM can be monitored on the digital readout.

· Spindle movement can be monitored on depth ruler in both inch or metric way

· VM25L has 1.5 HP POWERFUL brushless motor with silent running. Compare to old DC motor with brush, no need to change the carbon brush any more.

· High quality electronics used throughout machine for long term reliability

· Brushless motors has high efficiency, low noise (quiet), smooth operation, long life, low maintenance costs. Especially with low energy consumption brings better economic benefits to users

· Precision manual fine down feed can be adjusted with the min. feed rate up to 0.002"

· A clear chip guard with switch-off function on the spindle keeps debris from flying at the operator.

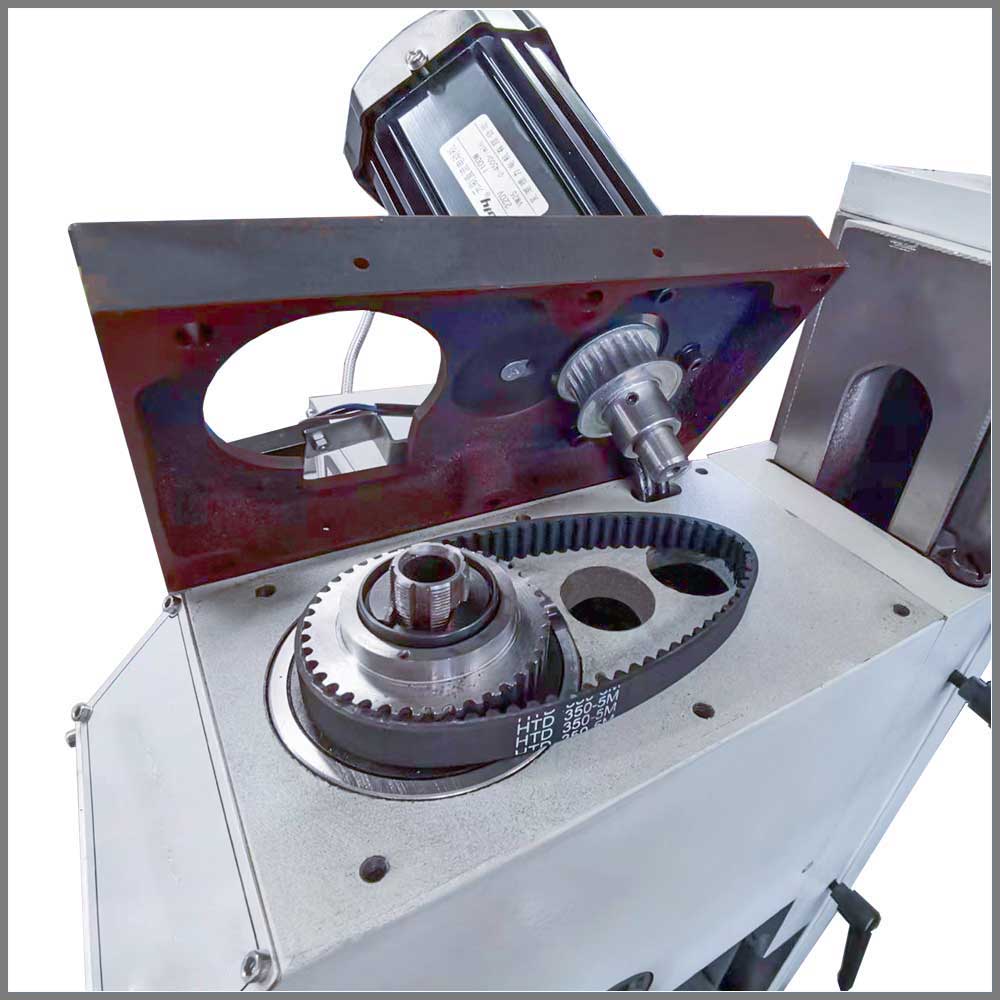

· Single speed belt drive system provides more quiet and easy operation, avoid any failure prone plastic gears and the hassle of changing them when stripped (on old version mill)

· Tooth Belt provide strong and precision transmission

The dovetail rails are equipped with adjustable taper inserts for greater wear resistance

· VM25L features tapered gibs with double locks which adds accuracy and rigidity

Dovetail column

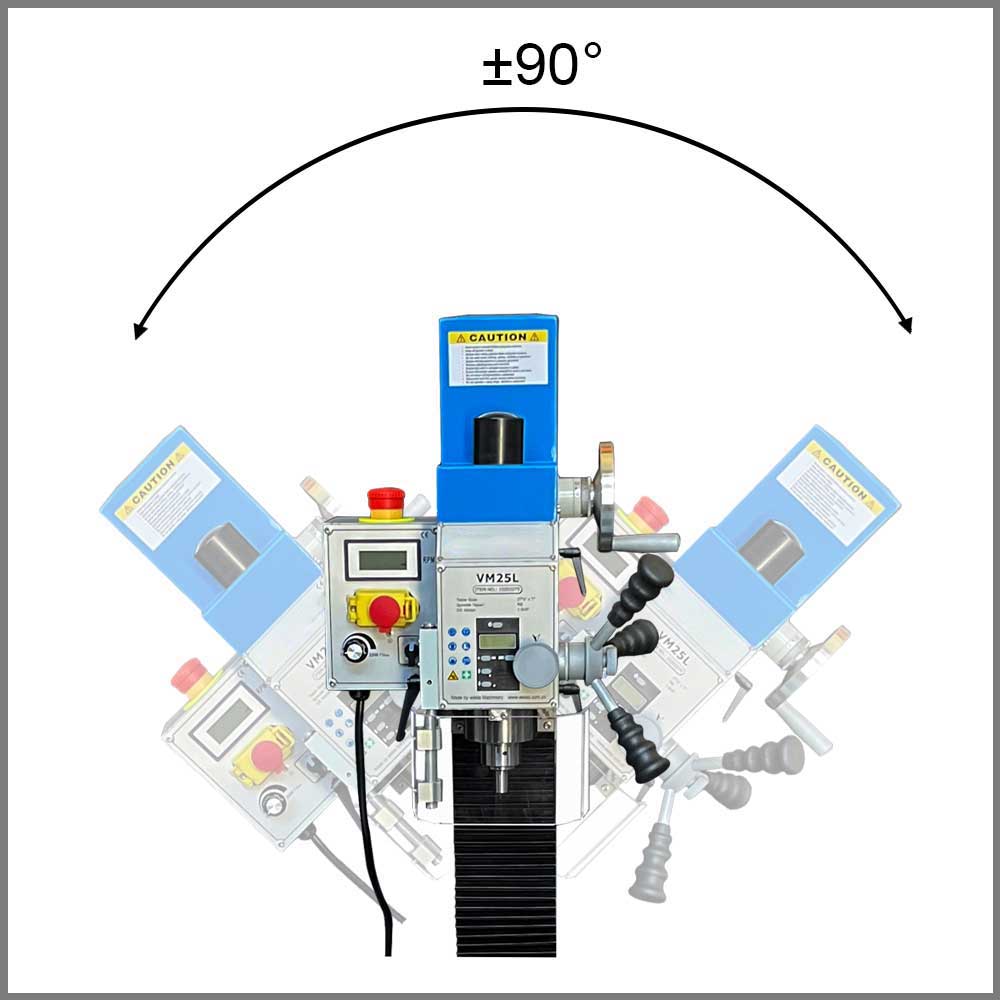

Mill head can be tiltled 90 degrees

· Loosen three nuts and one bolt to adjust the mill head angle

All leadscrews are true inch pitch screws. Large dials with .002" graduation for easier reading
