- Stock: In Stock
- Model: SCJ004130
- SKU: SCJ004130
Ask a Question About This Product
- Specifications
| attribute-list | |
| Model | SL- FM-30W |
| Item Name | Technical Parameter |
| Laser Power | 30W |

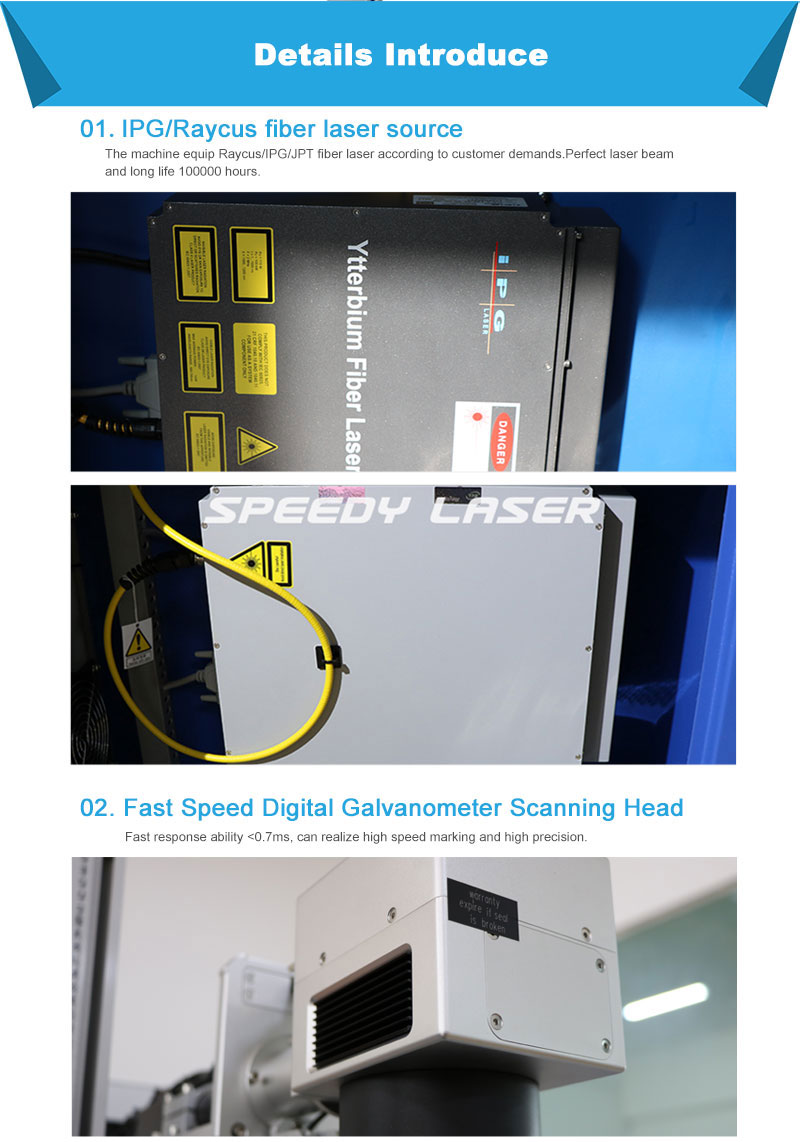

| Laser Type | SOCOJE fiber laser source |
| Marking Area | 4.3 x 4.3 in. (110 x 110mm) |
| Beam Diameter | 7mm±1 |
| Laser wavelength | 1064nm |
| Pulse Width | 131ns |
| Marking Depth | 0.0004-0.02 in. (0.01-0.5mm) |
| Repeat frequency | 30KHz-60KHz |
| Cooling | Air Cooling |
| GROSS WEIGHT | 132.3 lbs 60 KG |
| Rated power consumption | 800W |
| Operating voltage | 110V-60 Hz/15A |
| Packing Size | 34.6 x 16.5 x 31.5 in. (880 x 420 x 800 mm) |
| Package | Standard export wooden case |
- Description
1. Laser Power: Fiber Laser 30W

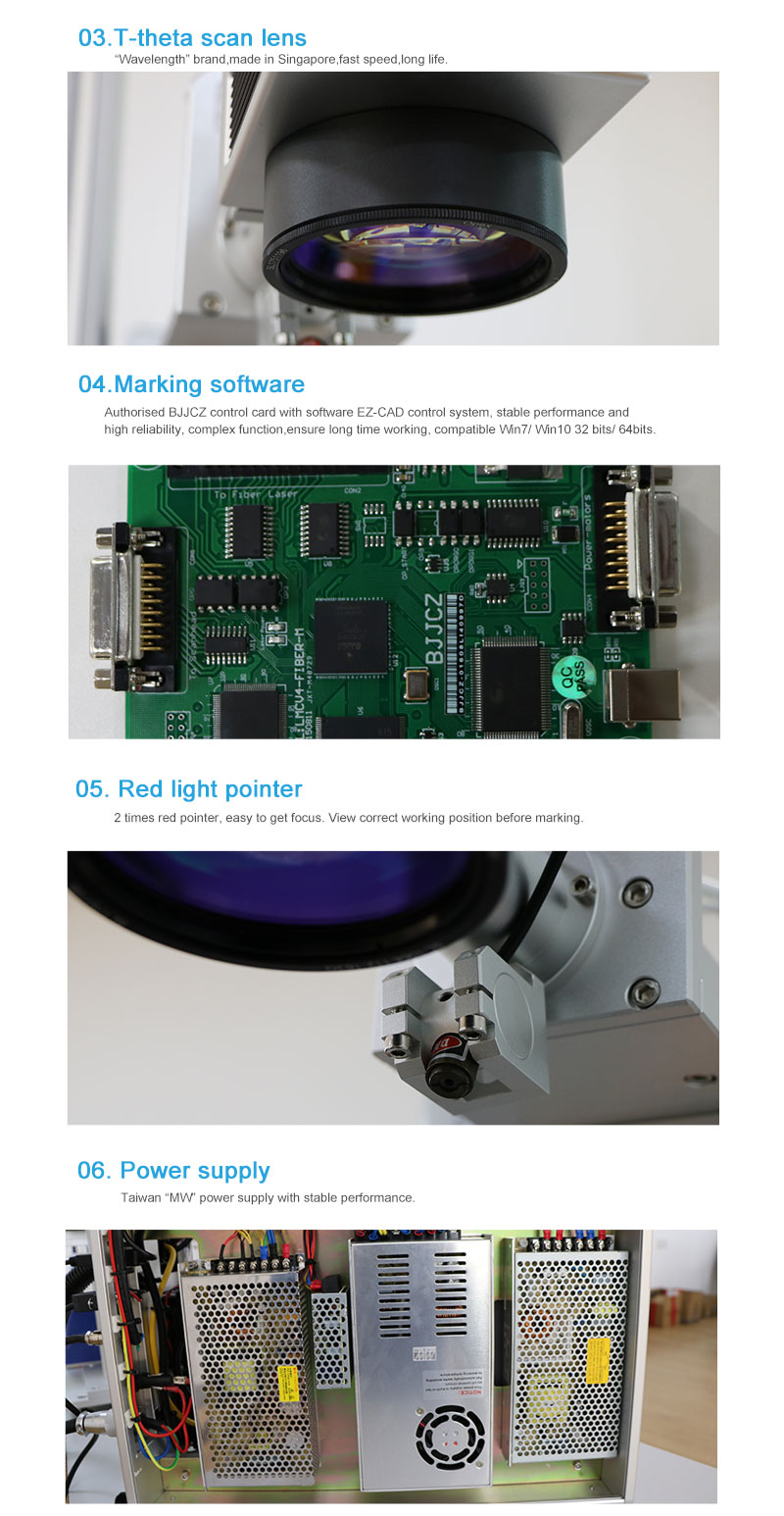

2. Software: Genuine EZCAD
3. Marking Area: 4.3 x 4.3 in. (110 x 110mm)
4. Certification: FDA Certified
5. High quality beam, consumable free, small machine dimension
6. Smaller output laser beam, finer marking line.
7. Long life, laser generator life over 70,000 hours.
Items | Specification | Qty. |
Laser marking machine | SL-FM-30W | 1 |
Software program | EZCAD | 1 |
User manual & Video | USB | 1 |
Laser Safety Goggle | 1064nm Laser ONLY | 1 |
Power Adapter | CN to US | 1 |

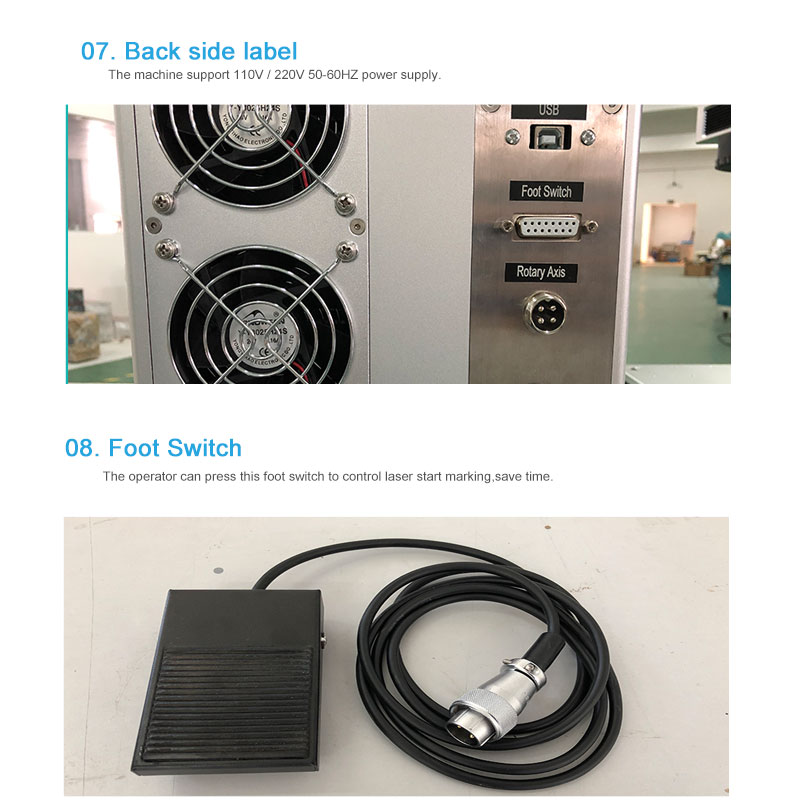

Foot Switch | 1.5 Meter | 1 |
Power Cable | 110V power supply | 1 |

Our fiber laser marking machine, easy to move equipment,air-cooling, compact machine, Perfect output beam quality, high reliability, noconsumables, maintenance-free, fiber laser source, Long life Working. The internationallatest, most reliable structure, small size, power consumption is small, nohigh-voltage without large water-cooled system. Close to the ideal beam, USBinterface, output control, optical scanning system, laser repetition rate high,high-speed without distortion.

Available for rotation axis, but it doesn't include the rotation axis. You can purchase a rotation axis with TPIN: L9BI0SH3I.
