Air Conditioning illuminated Automotive Momentary 12mm Push Button Switch SPST IP67
from
$26.08
Ex Tax: $26.08
5 or more $23.20
10 or more $21.64
25 or more $20.33
50 or more $19.30
- Stock: In Stock
- Model: SCJ014280
- SKU: SCJ014280
Products Sold: 0
Product Views: 525
Ask a Question About This Product
- Description
Air Conditioning illuminated Automotive Momentary 12mm Push Button Switch SPST IP67

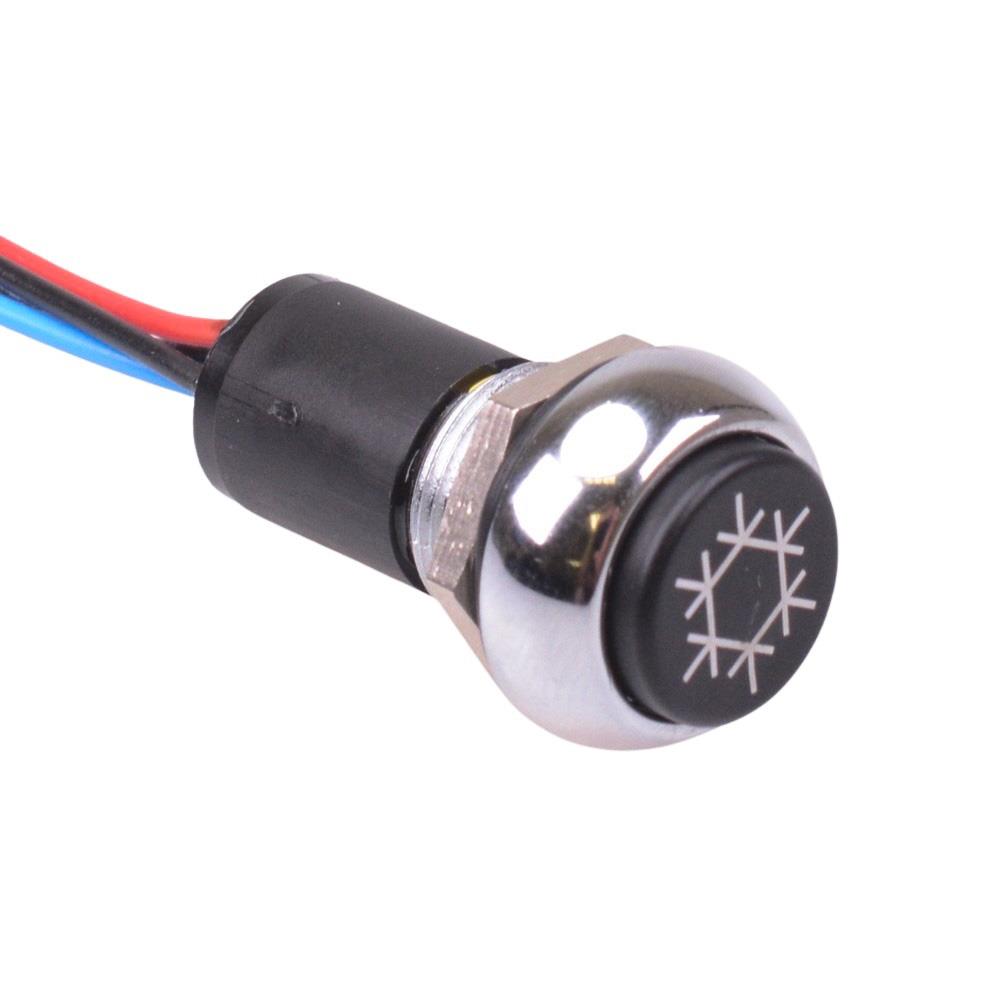

The IPP3FAD2R0Y101X1223-21 is a momentary round push button switch with a 12mm chrome bushing and illuminated with a yellow LED. The switch is prewired with 150mm flying leads and features SPST contacts. Suitable for automotive applications.
Air conditioning illuminated symbol Momentary NO operation Yellow LED LED forward voltage: 2.1V LED forward current: 20mA 150mm flying leads SPST contacts 12mm bushing Sealed to IP67 Panel cut-out: 13.6mm Solder lug terminals Rating: 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC Panel thickness: 1.5-4mm Dimensions: 29.8 x 17.5mm (height x diameter)
