Green LED 24VDC Momentary NO/NC Push Button Vandal Switch IP67 AV3V22F202084BK

Buy Now

Specifications

Attributes List
Actuation	Momentary
MOQ	1
Colour	Green
Contact Configuration	NO/NC
Contact Material	Silver
Contact Rating	1A 30VDC
Current Rating	1A
Illuminated	Yes
Electrical Life	250,000 Cycles
Illumination Voltage	24VDC
Material	Stainless Steel
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP67
Operating Temperature	-30°C to +85°C
Panel Cut Out	19.2mm
Panel Thickness	1-6mm
Product Series	AV
Switch Operation	On-(On)
Terminal Type	Flying Leads
Voltage Rating	30VDC

Description

Green LED 24VDC Momentary NO/NC Push Button Vandal Switch IP67 AV3V22F202084BK

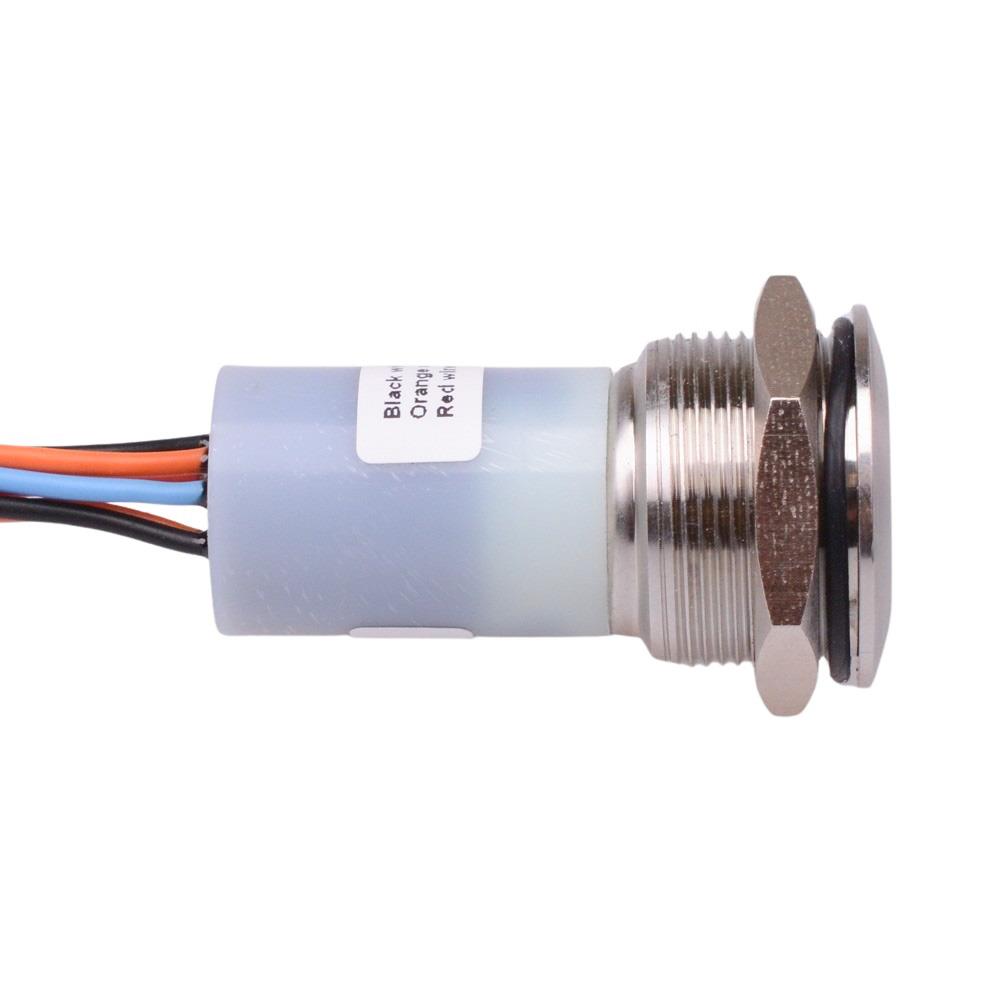

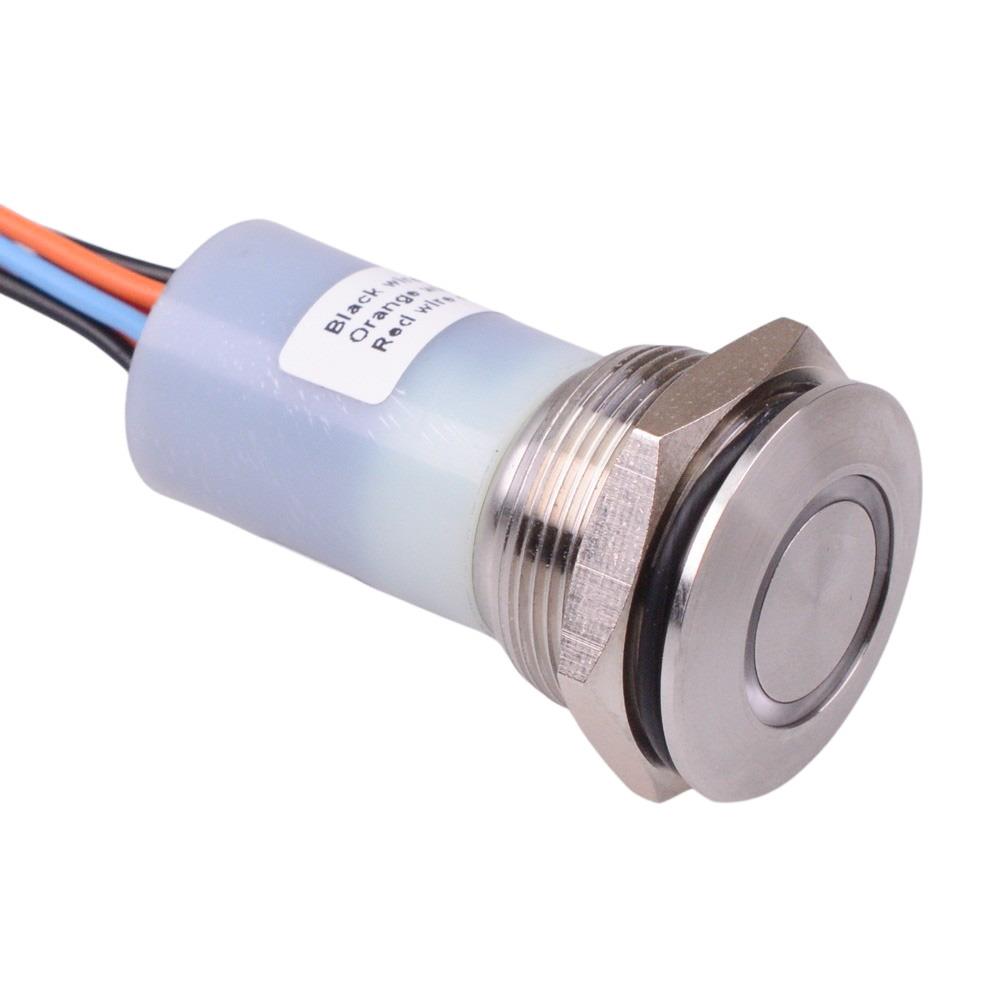

The AV3V22F202084BK is an illuminated prewired security vandal resistant 19mm push button switch with momentary NO/NC contacts and green LED. The switch features a stainless steel bushing sealed to IP67, suitable for applications requiring a reliable and durable switch over a long lifespan.

Momentary NO/NC contacts

Green 24V LED

Long life

20cm flying leads

Silver contacts

Stainless steel brushing

IP67 protection level

Panel cut-out: 19.2mm

Rating: 1A 30VDC

Panel thickness: 1-6mm

Diameter: 22mm
