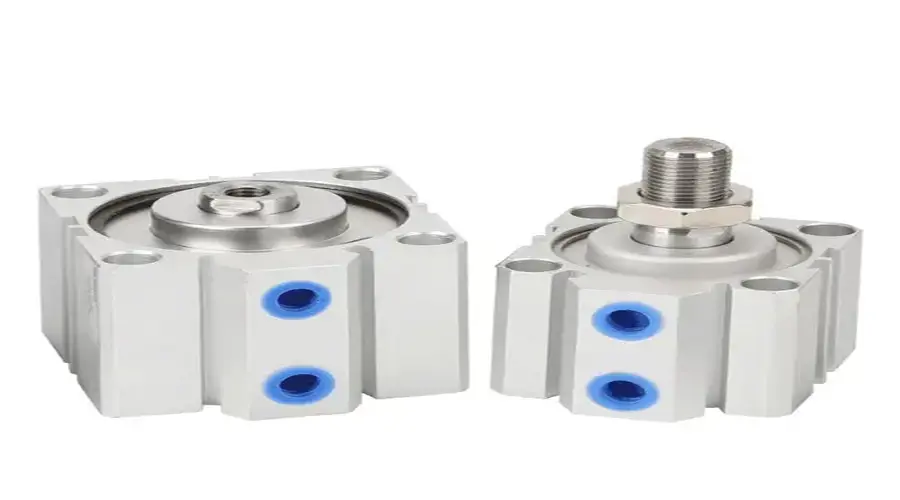

In today's automated industrial landscape, precision motion control solutions demand reliability and versatility. The SDA80 Mini Pneumatic Cylinder represents a breakthrough in compact pneumatic technology, delivering exceptional performance across diverse applications from food processing to manufacturing. Engineered with aircraft-grade aluminum and ISO-certified manufacturing processes, this rotary clamping cylinder offers maintenance-free operation with precise linear motion control - all in a remarkably space-saving package.




Why Compact Pneumatic Cylinders Matter in Modern Automation

Traditional pneumatic actuators often compromise between size and performance. The SDA80 series eliminates this tradeoff with:

- Ultra-compact footprint (10x10x10cm)

- Aircraft-grade aluminum construction

- Precision-guided piston movement

- Maintenance-free operation

- Energy-efficient pneumatic operation




Technical Specifications & Performance Advantages

1. Superior Engineering Design

- Body Material: High-grade aluminum alloy

- Operating Pressure: 0.05-0.9MPa

- Temperature Range: -10°C to +80°C

- Piston Diameter: 80mm standard

- Stroke Options: Customizable from 10-300mm



2. Precision Motion Control

- Repeatability: ±0.01mm

- Maximum Speed: 1000mm/s

- Cushioning Options: Adjustable air cushion

- Mounting Configurations: Multiple standard options



3. Durability & Reliability

- Service Life: 5,000km minimum

- Seal Materials: NBR/PU for different media

- Corrosion Resistance: Anodized surface treatment

- ISO 9001 Certified Manufacturing



Industry-Specific Applications

1.Food & Beverage Processing

- Packaging machine actuation

- Conveyor sorting systems

- Filling valve operation

2.Manufacturing Automation

- CNC machine tool changers

- Robotic end-effector actuation

- Assembly line positioning

3.Printing & Packaging

- Paper feed mechanisms

- Label application systems

- Carton sealing operations

4.Specialty Applications

- Medical device manufacturing

- Laboratory automation

- Clean room environments



The Future of Compact Pneumatic Automation

The SDA80 Mini Pneumatic Cylinder redefines expectations for compact linear motion solutions. With its precision engineering, durable construction, and versatile application potential, this cylinder delivers big performance in a small package - perfect for today's space-constrained automation challenges.



For engineers seeking to optimize their pneumatic systems with reliable, high-performance components, the SDA80 series represents the smart choice for current and future automation projects. Contact our technical team today to discuss your specific application requirements.



Visit our product page for detailed specifications or request a consultation with our pneumatic experts. Discover how the SDA80 can transform your automation performance today.
