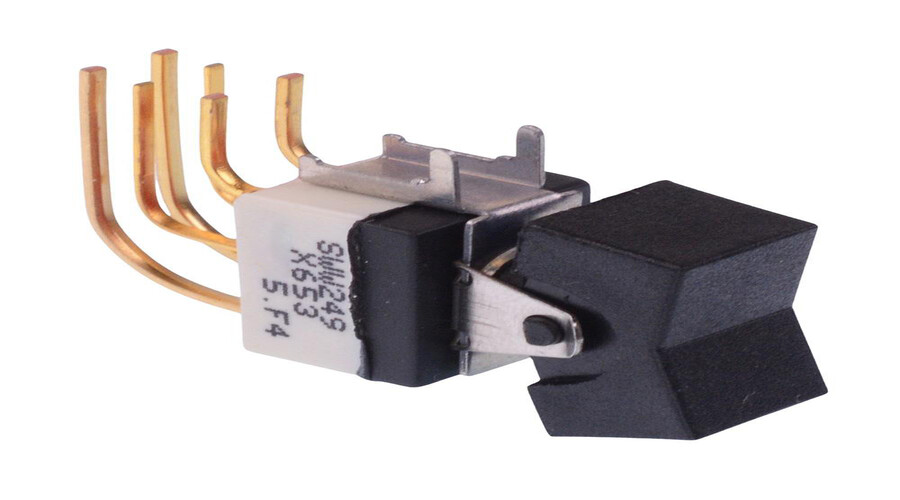

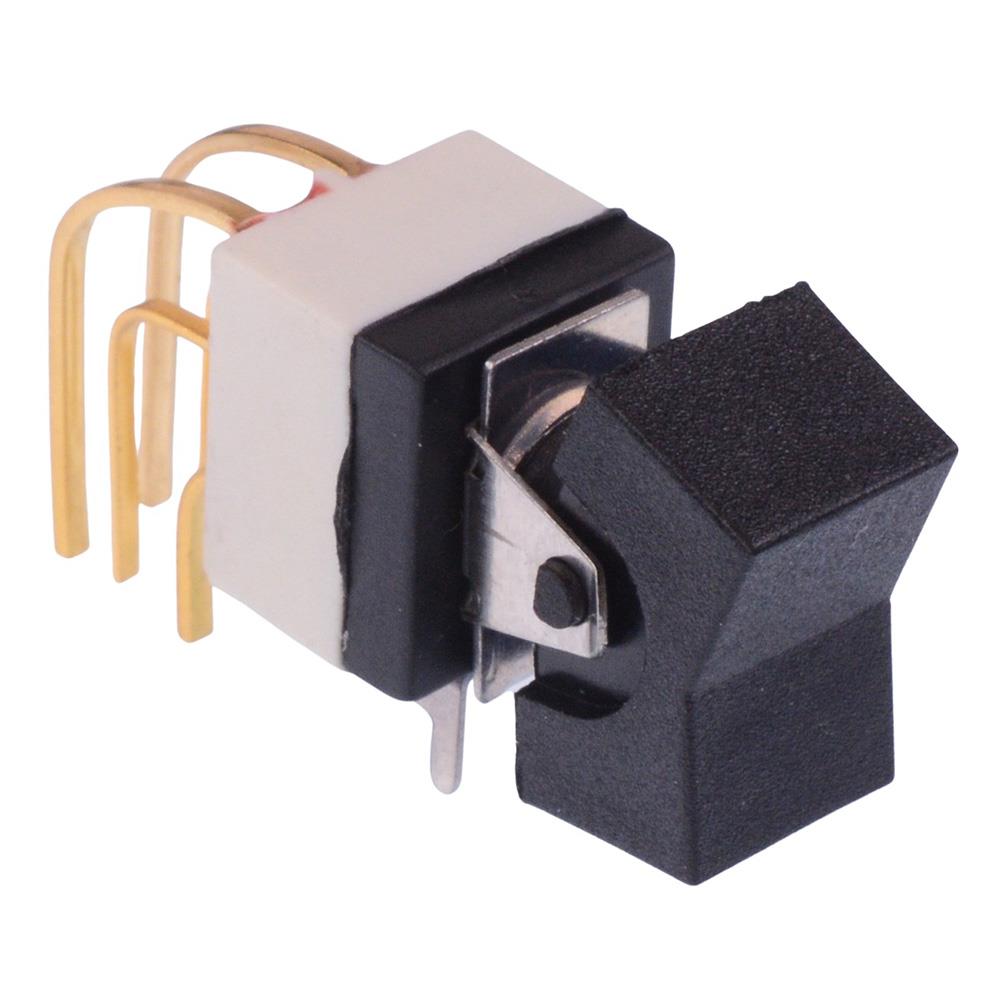

In today’s electronics landscape, the demand for compact, high-performance components that simplify dual-circuit management continues to rise. The Black On-Off-On Washable PCB Miniature Toggle Switch DPDT 0.4A 20V SWW249CD6X653 addresses this need by offering engineers a precise, durable solution for space-constrained applications. This article examines how integrating a DPDT Toggle Switch enhances control flexibility while ensuring reliability in miniature designs.



Precision Engineering for Miniature Applications

Designed for PCB mounting, the SWW249CD6X653 combines a compact footprint with robust functionality. Its DPDT contacts enable simultaneous control of two independent circuits, while the On-Off-On latching action provides clear tactile feedback for accurate mode selection. With gold-plated brass terminals and a 4.7mm pitch, the switch ensures stable conductivity and compatibility with automated assembly processes, including wave soldering.



Core Features Enhancing Performance

• Washable Design: Front and rear sealing protects against contaminants, making it ideal for industrial or medical environments requiring frequent cleaning.

• High Electrical Life: Rated for 50,000 cycles, the switch delivers long-term reliability even in high-frequency switching scenarios.

• Right-Angle Terminals: Vertical PCB mounting optimizes space utilization, critical for densely packed boards in consumer electronics or IoT devices.

• Broad Temperature Range: Operates seamlessly from -20°C to +85°C, ensuring functionality in extreme conditions.



Applications Driving Innovation

This DPDT Toggle Switch excels in applications demanding dual-circuit control within minimal space. Examples include industrial automation systems requiring redundant safety switches, automotive electronics managing dual sensors, or portable devices needing compact power routing. Its 0.4A 20VAC/DC rating suits low-power circuits, while the latching mechanism prevents unintended toggling.



Why Choose Our DPDT Toggle Switch?

For B2B clients, the SWW249CD6X653 offers a strategic advantage by reducing design complexity and enhancing product longevity. The combination of washable construction, high cycle life, and miniature form factor addresses challenges in prototyping and mass production. By minimizing maintenance needs and improving system uptime, this switch becomes a cost-effective solution for evolving electronic designs.



Transform Your Circuit Control Today

Optimize your compact electronics with the precision and durability of the DPDT Toggle Switch. Visit our website，or consult with our engineering experts. Let us help you integrate a solution that balances performance, reliability, and space efficiency for your next project.
