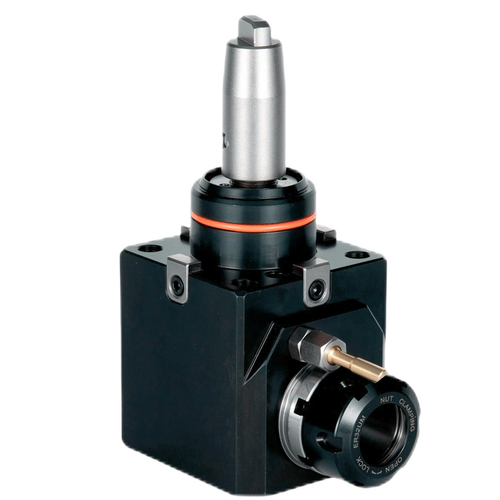

SCJ45 Live Tool Holders for Lathe Turret Driven Tool Holder BMT Tool Holder

It needs to be installed on the BMT power turret for use, with a fixed angle of 90 degrees.
The body is made of high-strength materials to ensure stability and durability under high-speed rotation.

Internally, precision bearings are used to withstand both radial and axial loads, ensuring that the tool holder will not experience dimensional changes under long-term workload.

According to the processing needs, the distance between the tool and the reference axis can be freely adjusted to adapt to the processing of workpieces of different sizes.
Its maximum speed is usually 6000R/min.

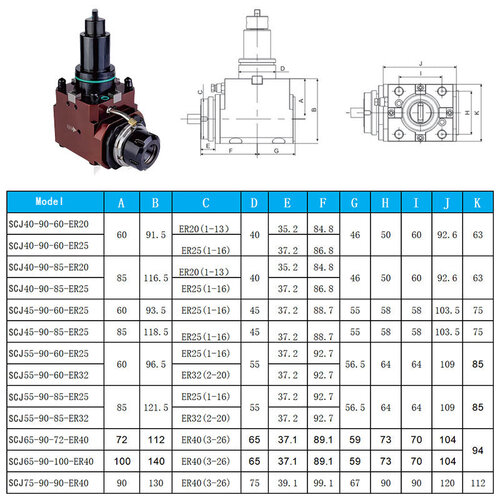

SCJ45-90-60-ER25 Dimensions.pdf
