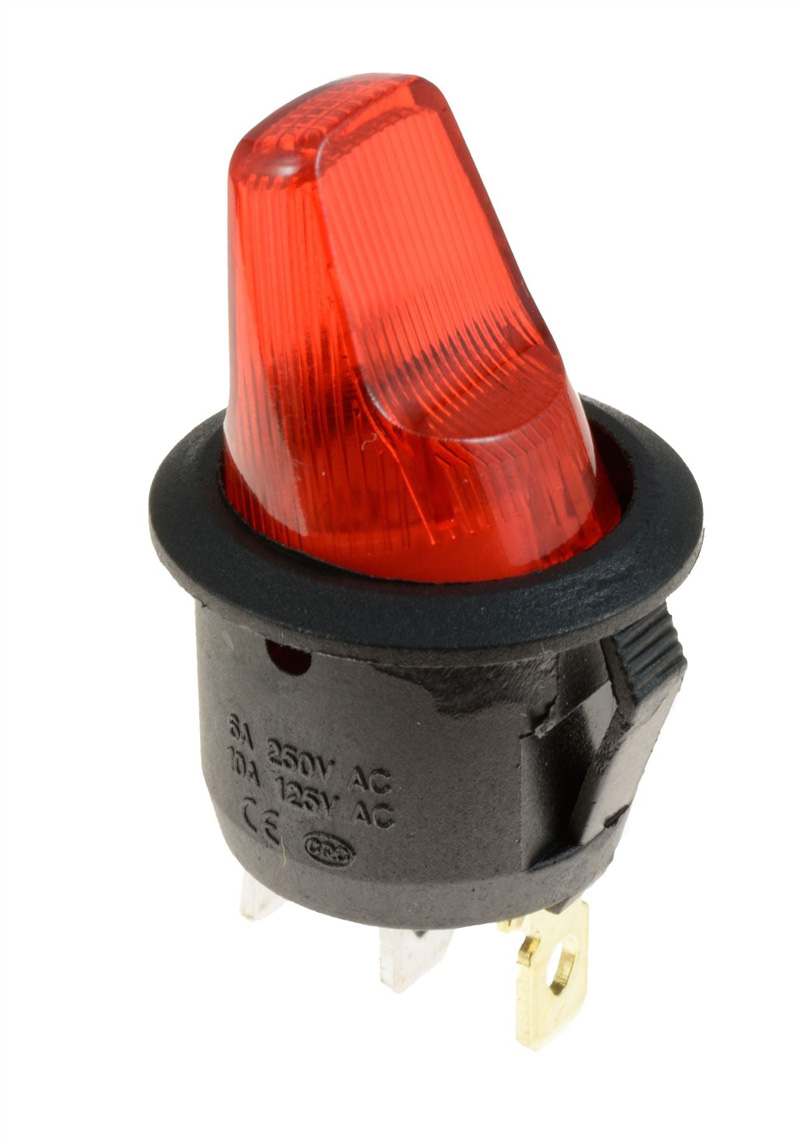

Fat illuminated Red Toggle Switch SPST 12V

Fat illuminated Red Toggle Switch SPST 12V 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Red
Contact Configuration	SPST
Contact Rating	6A 250VAC
Current Rating	6A
Illuminated	Yes
Illumination Colour	Red
Illumination Voltage	12VDC
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Operating Temperature	-25°C to +85°C
Panel Cut Out	20mm
Switch Operation	On-Off
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

Fat illuminated Red Toggle Switch SPST 12V

illuminated toggle switch with a large handle and push-fit mounting.

Requires 20mm cut-out

4.8mm terminals

12VDC illumination

SPST contacts

On-Off operation

Dimensions: 41.4 x 22.8mm (Height x Diameter)
