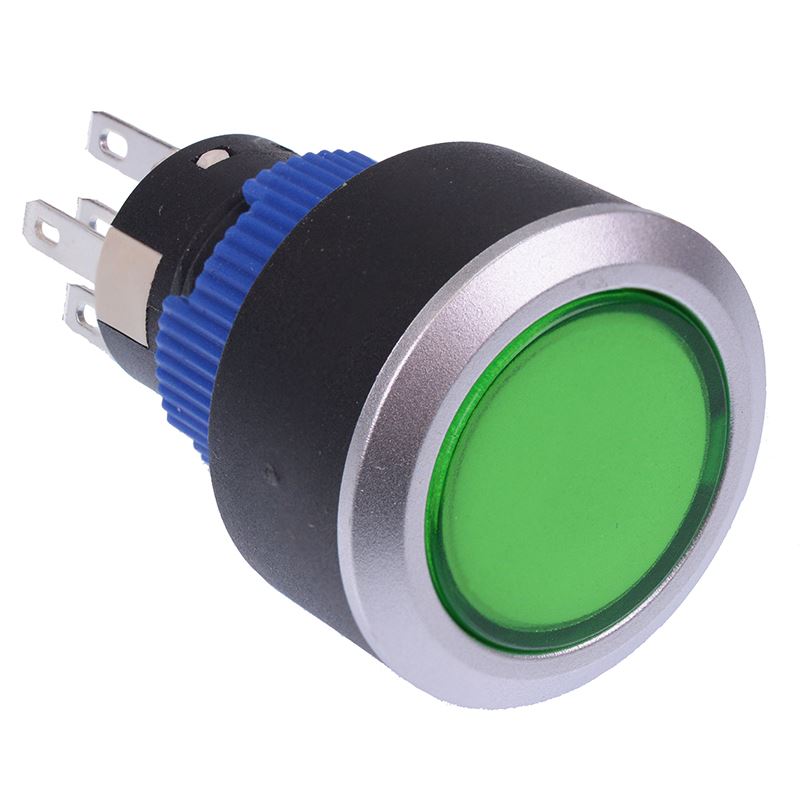

Green On-(On) Momentary 220V Push Button Switch SPDT

Green On-(On) Momentary 220V Push Button Switch SPDT 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	1NO-1NC
Contact Rating	3A 250VAC
Current Rating	3A
Illuminated	Yes
Electrical Life	50,000 Cycles
Illumination Colour	Green
Illumination Voltage	220VAC
Mounting Style	Panel
Number of Positions	2
Protection Level	IP65
Operating Temperature	-20°C to +55°C
Panel Cut Out	22mm
Panel Thickness	6mm
Switch Operation	On-(On)
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

Green On-(On) momentary push button switch featuring SPDT contacts and LED illumination. The switch features a silver bezel and is suitable for panel mount applications requiring a 22mm diameter switch.

Green LED

illumination voltage: 220V

Panel cut-out diameter: 22mm

SPDT contacts

IP65 protection level

Rating: 3A 250VAC

Download
