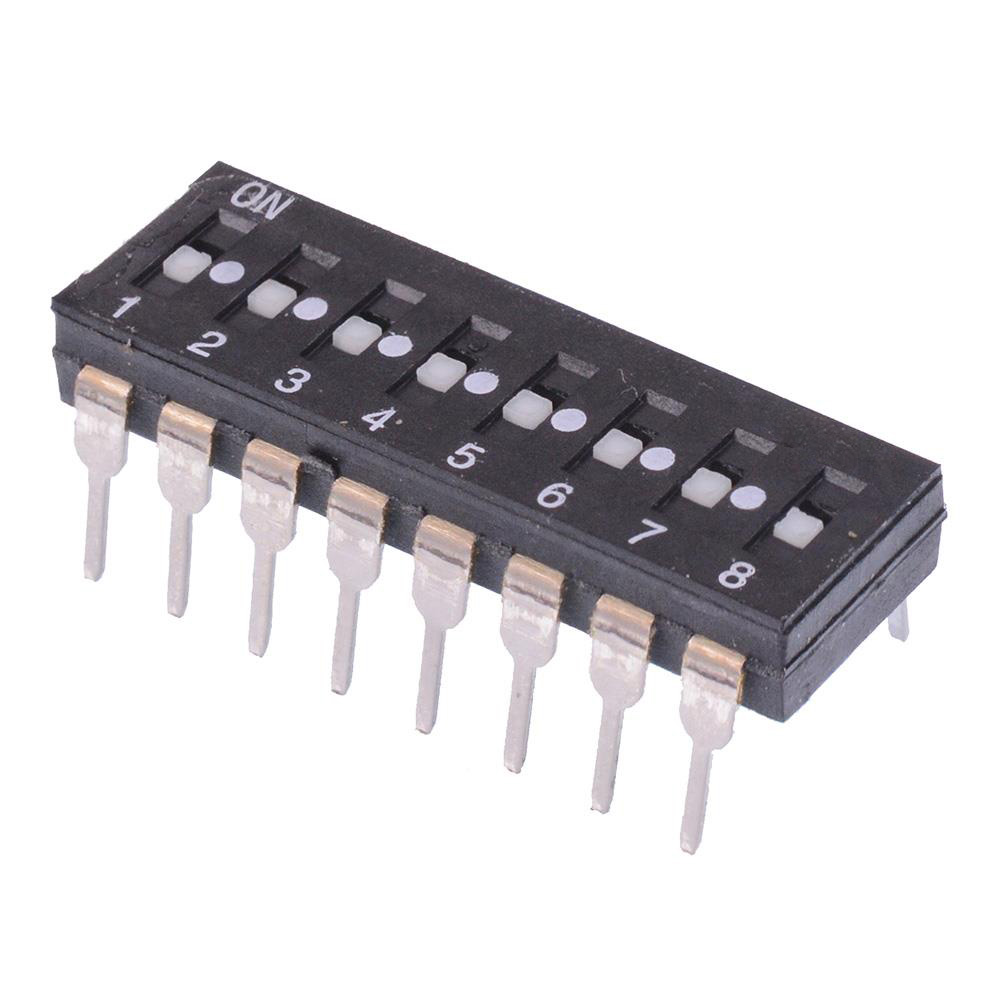

IK0800000 8-Way PCB DIP Switch Flush Actuator SPST

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Black
Contact Configuration	SPST
Contact Material	Gold Plated
Contact Rating	100mA 48VDC
Current Rating	100mA
Electrical Life	2,000 Cycles
Material	PBT
Mounting Style	Through Hole
Number of Positions	2
Number of Ways	8
Operating Temperature	-20°C to +70°C
Pitch	2.54mm
Product Series	IK
Switch Operation	On-Off
Terminal Type	Solder
Voltage Rating	24VDC

Description

The IK0800000 is a 8 way DIP switch featuring SPST contacts and gold plated terminals. The switch features self-cleaning wiping contacts and 25mA 24VDC switch rating, suitable for through hole PCB applications.

8 ways

Flush actuator

Switch rating: 100mA 24VDC

Contact rating: 100mA 48VDC

Gold plated brass terminals

2.54mm pitch
