Green LED Green Button Square 16mm Momentary Push Button Switch SPDT 5A IP67 IRC7Z232L0G
from
$15.23
Ex Tax: $15.23
10 or more $13.56
25 or more $12.80
50 or more $12.02
100 or more $11.42
- Stock: In Stock
- Model: SCJ014180
- SKU: SCJ014180
Products Sold: 0
Product Views: 397
Ask a Question About This Product
- Description

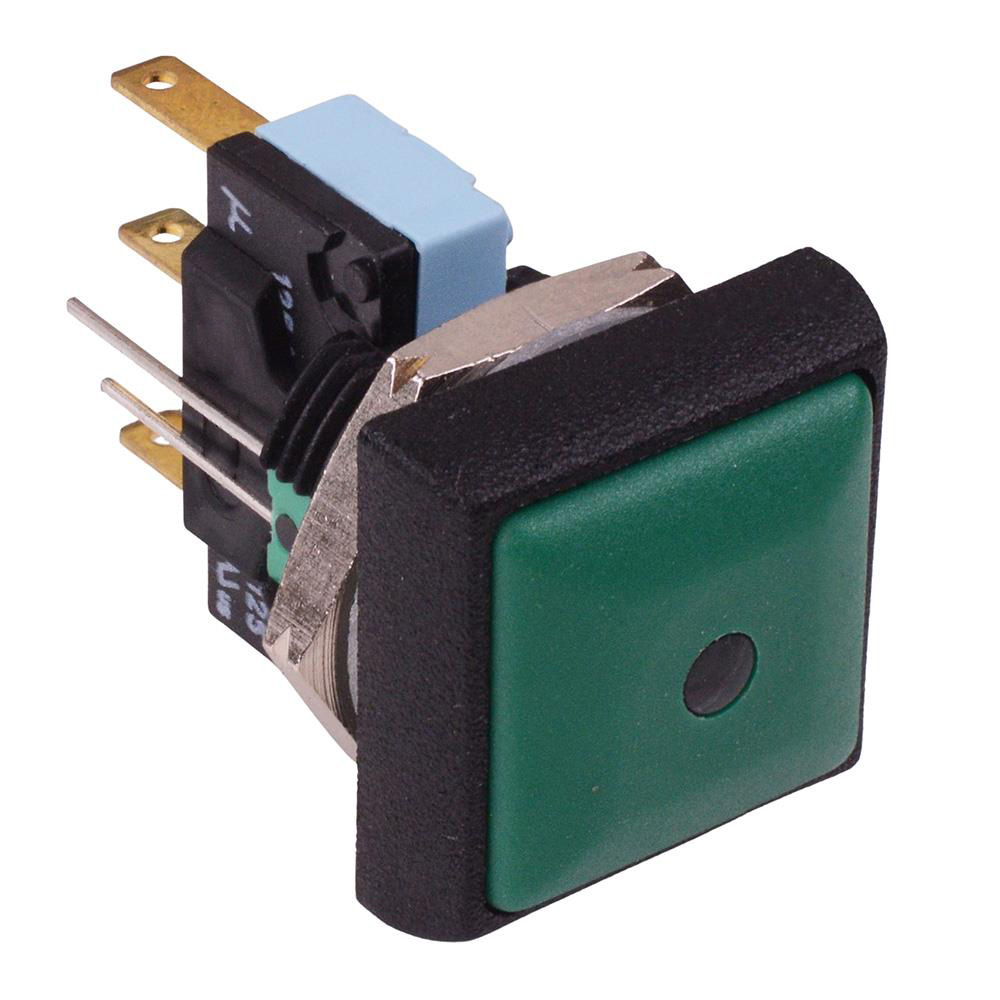

Green LED Green Button Square 16mm Momentary Push Button Switch SPDT 5A IP67 IRC7Z232L0G
The IRC7Z232L0G is a square sealed momentary push button switch with a 16mm bushing and normally open/closed contacts. The switch features a removable microswitch providing a maximum rating of 5A 250VAC. This makes the switch ideal for applications including automotive and marine.
Button colour: green LED colour: green LED forward voltage: 2.1V LED forward current: 20mA Panel cut-out: 16.2mm Contacts: momentary NO + NC Terminals:quick connect / solder lug contacts Contact rating: 5A 250VAC Protection rating: IP67 Maximum panel thickness: 3mm Dimensions: 19.8 x 19.8 x 33.6mm (length x width x height)
