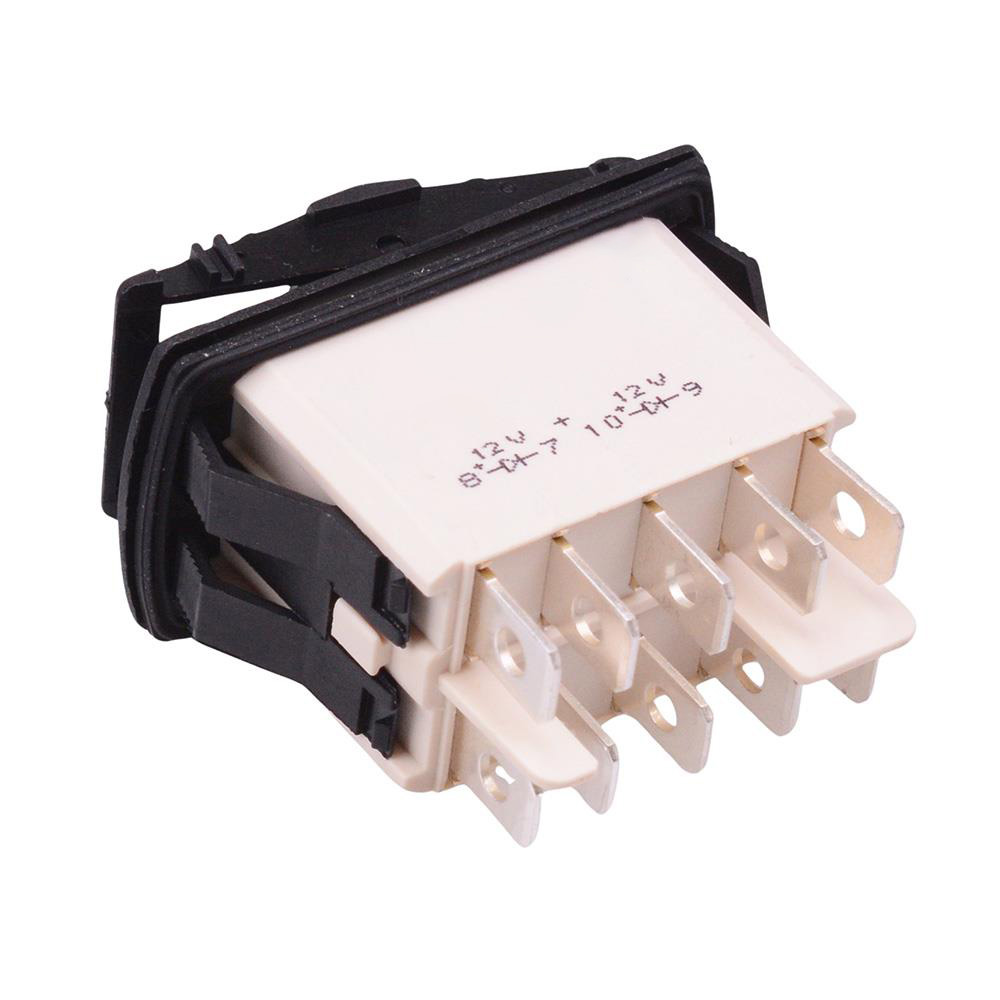

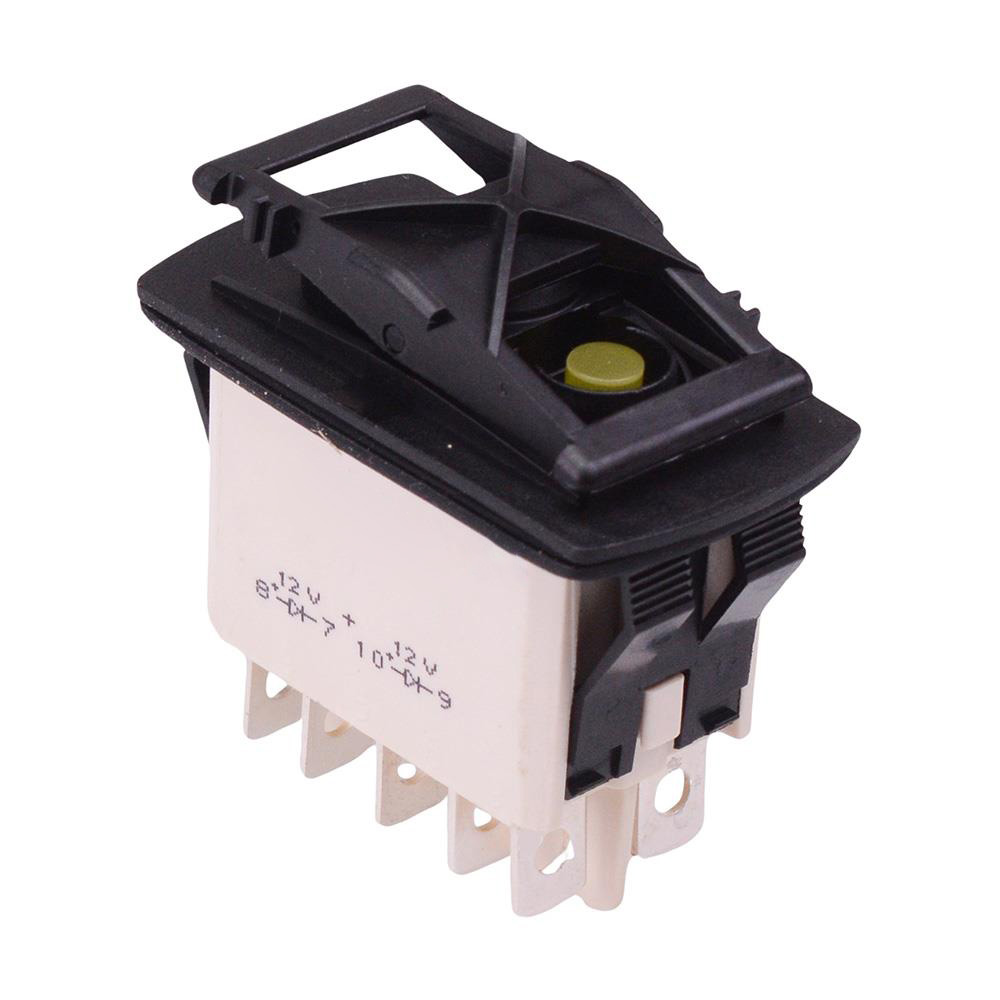

KR46CAKFFG On-On Auto Rocker Switch Yellow 12V illuminated DPDT IP68

KR46CAKFFG On-On Auto Rocker Switch Yellow 12V illuminated DPDT IP68 1

Buy Now

Specifications

Attributes List
Actuation	Latching
MOQ	1
Contact Configuration	DPDT
Contact Material	Silver
Contact Rating	5A 24VDC
Current Rating	5A
Illuminated	Yes
Illumination Colour	Yellow
Illumination Voltage	12V
Mounting Style	Panel
Number of Poles	2
Number of Positions	2
Protection Level	IP68
Operating Temperature	-40°C to +85°C
Panel Cut Out	36.8 x 21.08mm
Panel Thickness	0.8mm to 4.6mm
Switch Operation	On-On
Terminal Type	Quick Connect
Voltage Rating	24VDC

Description

The KR46CAKFFG is an attractive rugged automotive rocker switch from the KR series by socoje. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.

On-On DPDT contacts

Solder/Quick connect terminals

12V Yellow illumination

IP68 Rated Protection

Silver contacts

Rating: 5A 24VDC

Panel cut-out: 36.8 x 21.08mm

Panel thickness: 0.8 to 4.6mm

Compatible with U2292 and U3152 connector

Download
