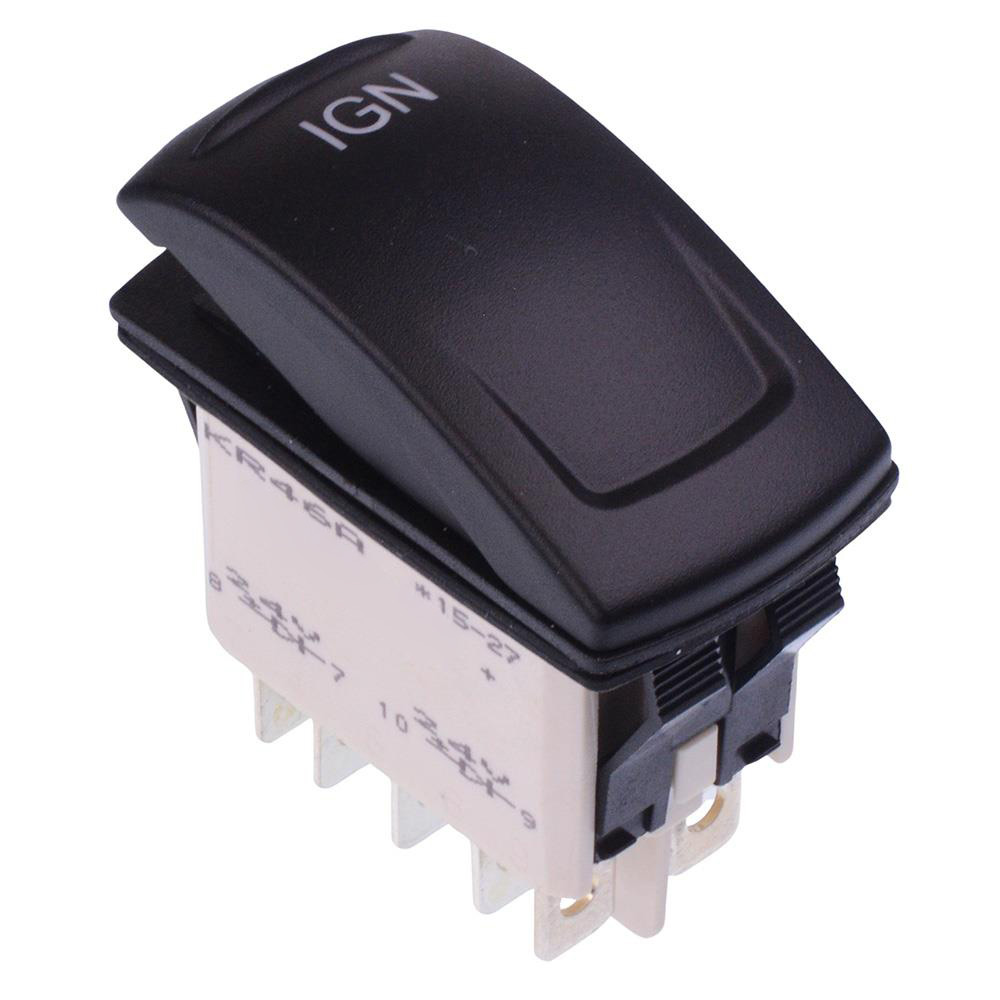

KR46CAKJJG22ND5XXXX IGN On-On Red LED 24V Automotive Rocker Switch DPDT IP68

KR46CAKJJG22ND5XXXX IGN On-On Red LED 24V Automotive Rocker Switch DPDT IP68 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Red
Contact Configuration	DPDT
Contact Material	Silver
Contact Rating	10A 24VDC
Current Rating	10A
Illuminated	Yes
Electrical Life	10,000 Cycles
Illumination Colour	Red
Illumination Voltage	24VDC
Material	PA66
Mounting Style	Panel
Number of Poles	2
Number of Positions	2
Protection Level	IP68
Operating Temperature	-40°C to +85°C
Panel Cut Out	36.8 x 21.08mm
Panel Thickness	0.8-4.6mm
Switch Operation	On-On
Terminal Type	Quick Connect
Voltage Rating	24VDC

Description

The KR46CAKJJG22ND5XXXX is an attractive rugged automotive rocker switch from the KR series by socoje, featuring On-On momentary function and red 24V LED with IGN symbol. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.

Red 24V LED

IGN symbol

On-On DPDT contacts

Solder / quick connect terminals

Silver contacts

Protection level: IP68

Compatible with U2292 and U3152 connectors

Rating: 10A 24VDC

Panel cut-out: 36.8 x 21.08mm

Panel thickness: 0.8 to 4.6mm

Download
