16" x 59" V-Turn 410/1500 Socoje Metal Precision Lathe For Metal Processing with High Capacity 1 set
from
$23,250.00
Ex Tax: $23,250.00
- Stock: In Stock
- Model: SCJ004413
- SKU: SCJ004413
Products Sold: 0
Product Views: 327
Ask a Question About This Product
- Description

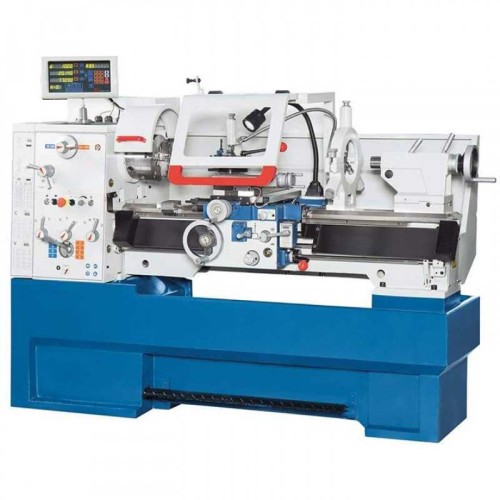

16" x 59" V-Turn 410/1500 Socoje Metal Precision Lathe For Metal Processing with High Capacity 1 set
About this product
- 3-axis position indicator
- 4-jaw face plate chuck Ø 10"
- face plate (13" diam.)
- change gears
Details:
- Constant speed: during face turning, the spindle speed automatically adapts to the changing workpiece diameter – the constant cutting speed at the cutting edge of the turning tool ensures superior turning results with a quality comparable to CNC lathes
- A heavy ribbed machine bed and a massive one-piece cast-iron frame provide the solid basis for this machine
- Wide, hardened and ground guideways ensure superior turning results and long life
- Large spindle bearings and high-precision headstock ensure excellent concentricity
- Headstock gears and shafts are hardened and ground for quiet operation und constant speed
- 7 Hp headstock motor ensures powerful machining
- Spindle speeds are infinitely variable from 30 to 550 and 50 to 3000 rpm
- Micrometer and turret stop are included

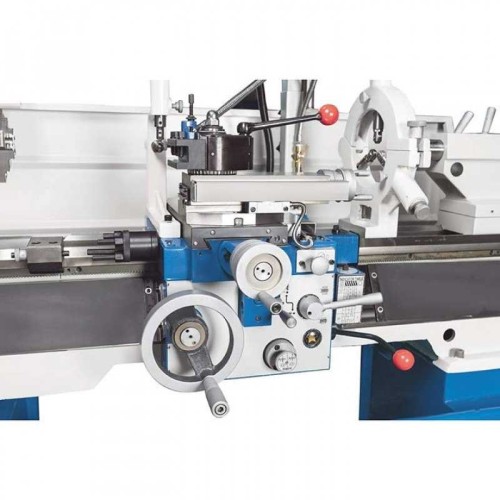

- Integrated central lubrication at the support for low maintenance
- The extensive features of the X.Pos Position Indicator are complemented here with a digital speed indicator and an easy to program auxiliary function
- Incl. 3-axis position indicator with integrated spindle speed display, fully assembled
3-axis position indicator
- More accuracy
- Lower error rate
- Increased productivity
- Resulting in valuable time savings
- For increased productivity
- Easy to read display
- Operator-specific features
- Convenient keyboard layout
- Resolution: 0.0004 / 0.0002"
- Default coordinates
- Axis position is maintained when display is turned off
- Storage for 10 tools
- Radius / diameter toggle
- Mm/inch conversion
- Display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes
*1 year warranty on parts and labor
| Center width | 59.06 in |
| Center height | 8 in |
| Turning diameter over bed | 15 in |
| Turning diameter over gap bridge | 23 in |
| Turning-Ø over support | 10 in |
| Gap bridge length | 7 in |
| Bed width | 10 in |
| Travel X-axis | 8 in |
| Travel Z1-axis | 6 in |
| Swing range of top slide | ± 45° |
| Speed range, high | 550 - 3,000 rpm |
| Speed range, low | 30 - 550 rpm |
| Spindle bore | 2 in |
| Spindle mount | Camlock D1-6 |
| Spindle taper | MK 6 |
| Feed X-axis | 0 - 0.03 in/R |
| Feed Z-axis | 0 - 0.07 in/R |
| Tapping, metric | (39) 0.2-14 in |
| Tapping, diametric | (21) 8-44 DP |
| Tapping, module | (18) 0.01 - 0.14 in |
| Tapping, withworth | (45) 2-72 TPI |
| Tailstock quill diameter | 2 in |
| Tailstock taper | MK 4 |
| Tailstock quill stroke | 5 in |
| Tailstock traverse adjustment | ± 0.5 in |
| Motor rating main drive | 7.4 Hp |
| Supply voltage | 400 V |
| Overall dimensions (length x width x height) | 96.06x39.37x51.97 in |
| Weight | 3,960 lbs |
| Part No. | 300821 |
Standard Equipment:
- 3-axis position indicator
- 4-jaw face plate chuck Ø 10"
- face plate (13" diam.)
- change gears
- Quick-change tool holder head WB
- quick change tool holder WBD 25120
- coolant system

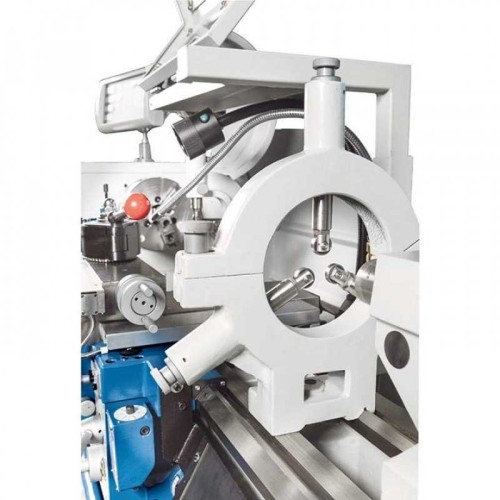

- steady and follow rest
- turret stop
- micrometer stop
- chip tray
- includes fixed splash guard (wall)
- protective shield for support
- chuck guard
- foot brake pedal
- halogen lights
- thread gauge
- operating tools
- operator manual
