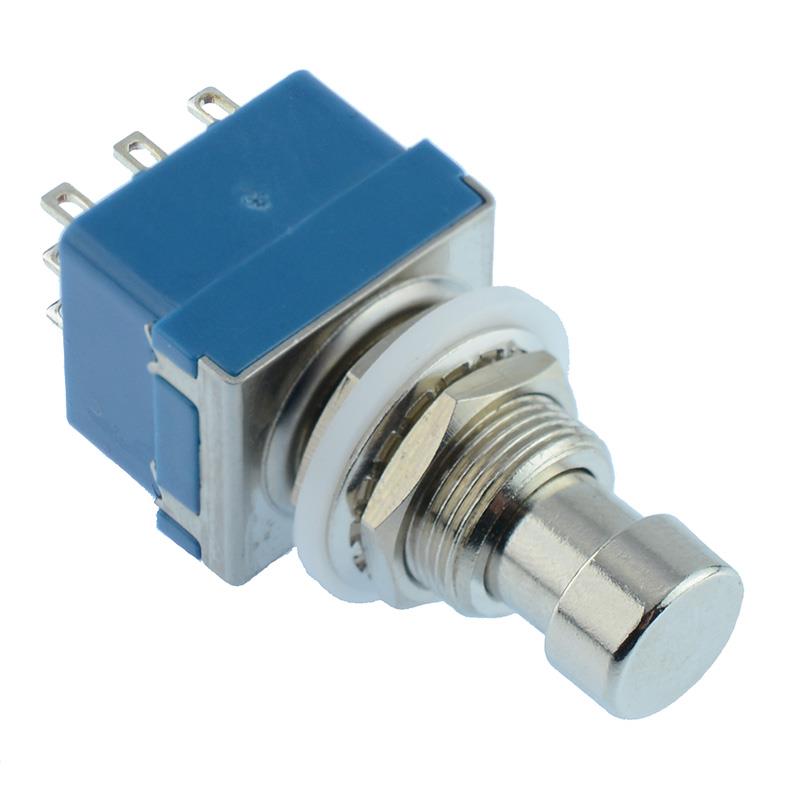

Latching On-On Foot Switch 3PDT

Latching On-On Foot Switch 3PDT 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	3PDT
Contact Rating	3A 250VAC, 6A 125VAC
Current Rating	6A @ 125VAC
Illuminated	No
Electrical Life	50,000 Cycles
Illumination Colour	Non Illuminated
Mounting Style	Panel
Number of Positions	2
Operating Temperature	-25°C to +85°C
Panel Cut Out	12mm
Switch Operation	On-On
Terminal Type	Solder
Voltage Rating	250VAC

Description

Latching On-On Foot Switch 3PDT

3PDT footswitch with a latching push button action, ideal for machinery and music applications including foot pedals.

3PDT contacts

Latching action

Solder terminals

Suitable for panel mounting and secured by nut

Panel cut-out: 12mm

Maximum Panel Thickness: 4mm

Dimensions: 42.1 x 17 x 19.6mm (Height x Length x Width)
