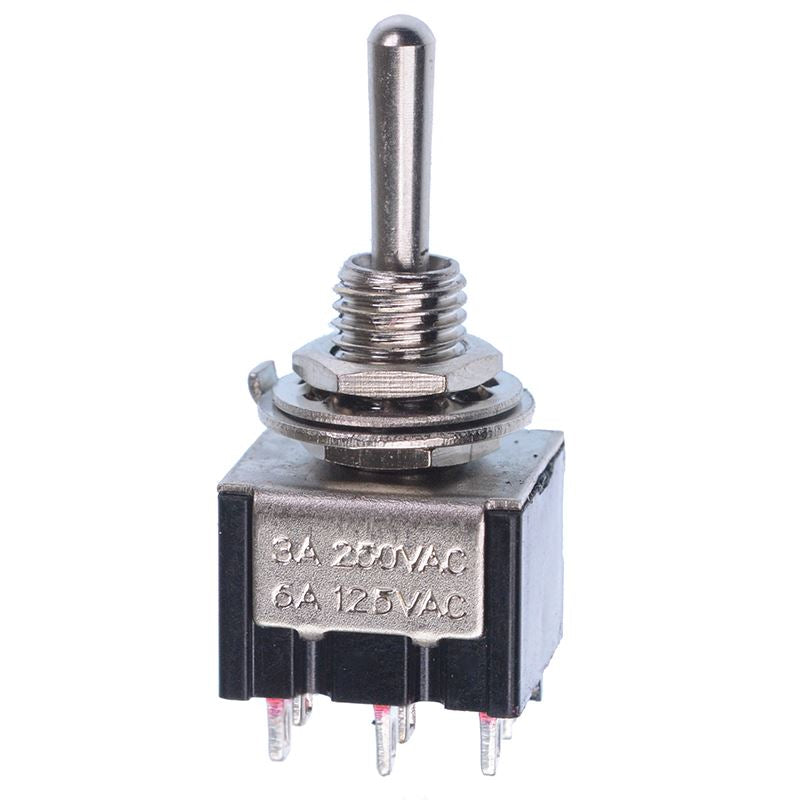

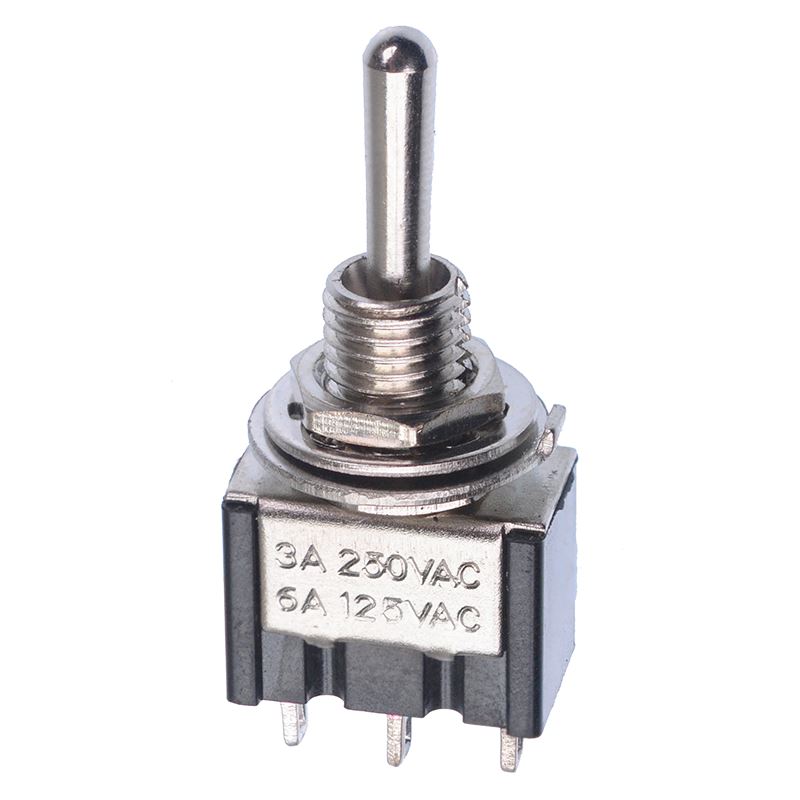

(On)-Off-(On) Momentary Miniature Toggle Switch SPDT

(On)-Off-(On) Momentary Miniature Toggle Switch SPDT 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	SPDT
Contact Rating	3A 250VAC
Current Rating	3A
Illuminated	No
Electrical Life	10,000 Cycles
Mounting Style	Panel
Number of Poles	1
Number of Positions	3
Operating Temperature	-25°C to +85°C
Panel Cut Out	6mm
Switch Operation	(On)-Off-(On)
Terminal Type	Solder
Voltage Rating	250VAC

Description

(On)-Off-(On) Momentary Miniature Toggle Switch SPDT

Miniature size toggle switches with a momentary action suitable for a wide range of applications including model railway.

(On)-Off-(On) action

SPDT contacts

Switch returns to the center when released

6mm panel cut-out

Solder terminals

Secured with nut

Maximum current: 3A

Maximum voltage: 250VAC

Dimensions: 33.3 x 7.9 x 13.2mm (Height x Width x Length)

Maximum Panel Thickness: 3mm
