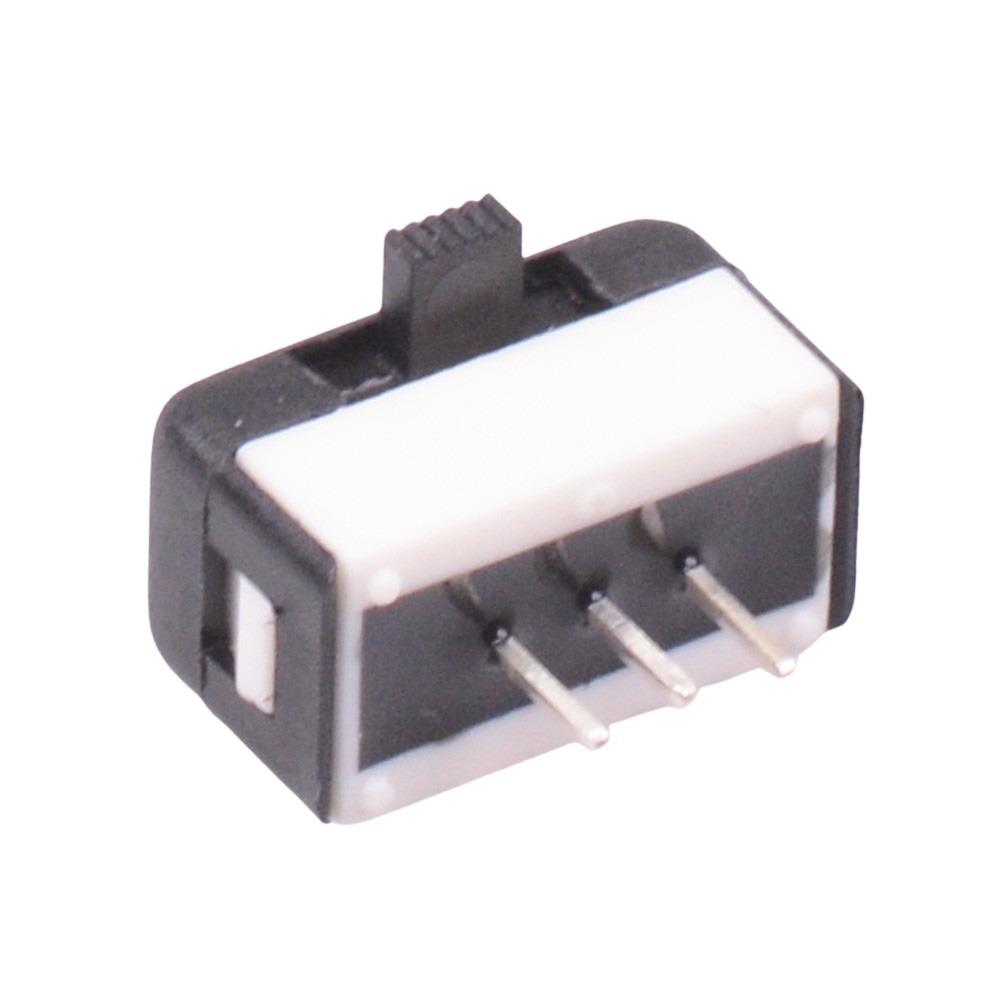

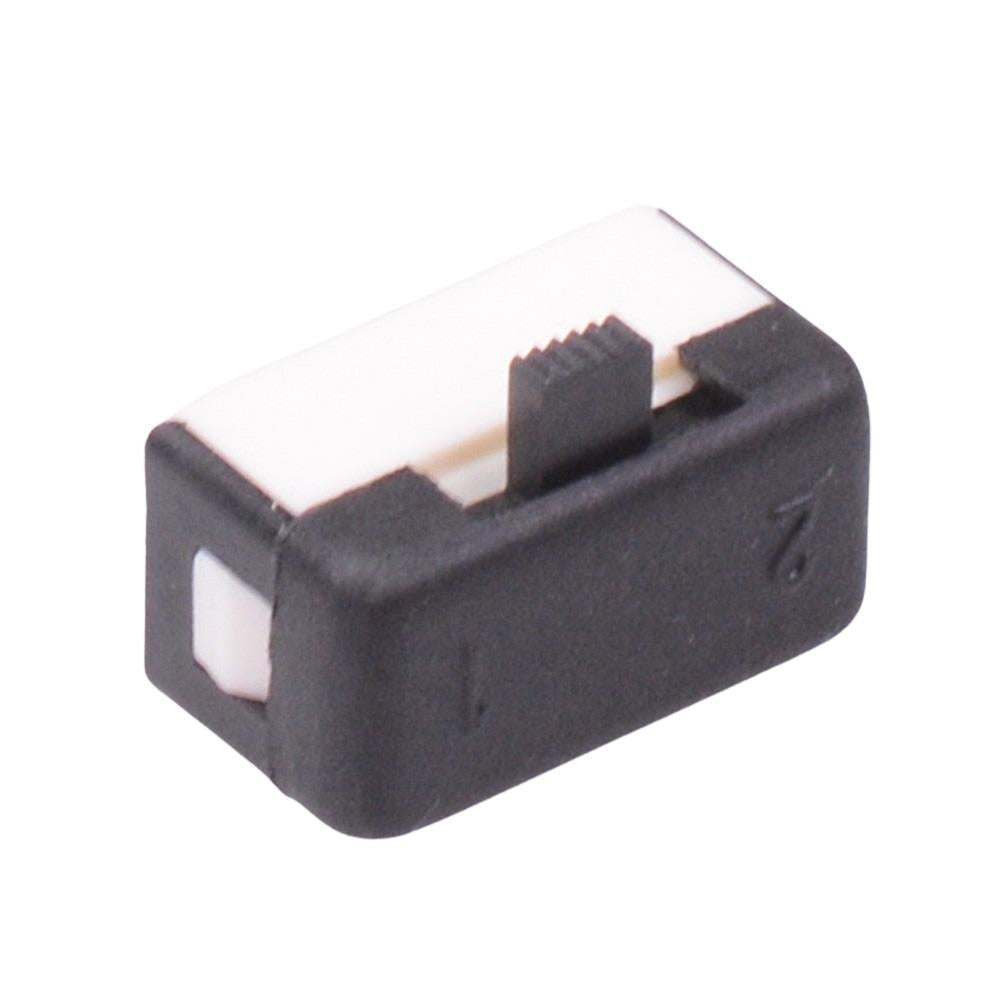

25339NA On-Off-On Professional Horizontal PCB Slide Switch SPDT

25339NA On-Off-On Professional Horizontal PCB Slide Switch SPDT 1

Buy Now

Specifications

Attributes List
Actuation	Latching
MOQ	1
Contact Configuration	SPDT
Contact Material	Silver
Contact Rating	1A 30VDC
Current Rating	1A
Electrical Life	10,000 Cycles
Material	PBT
Mounting Style	PCB
Number of Poles	1
Number of Positions	3
Operating Temperature	-40°C to +85°C
Pitch	2.54mm
Product Series	25000N
Switch Operation	On-Off-On
Terminal Type	PCB
Voltage Rating	30VDC

Description

The 25339NA is a professional grade slide switch manufactured by socoje, featuring SPDT contacts and approved to UL1054. The switch is suitable for wave soldering and a wide range of PCB mounting applications.

SPDT contacts

On-Off-On operation

2.54mm terminal spacing

Silver contacts

2.3mm side actuator

Rating: 100mA 30VDC
