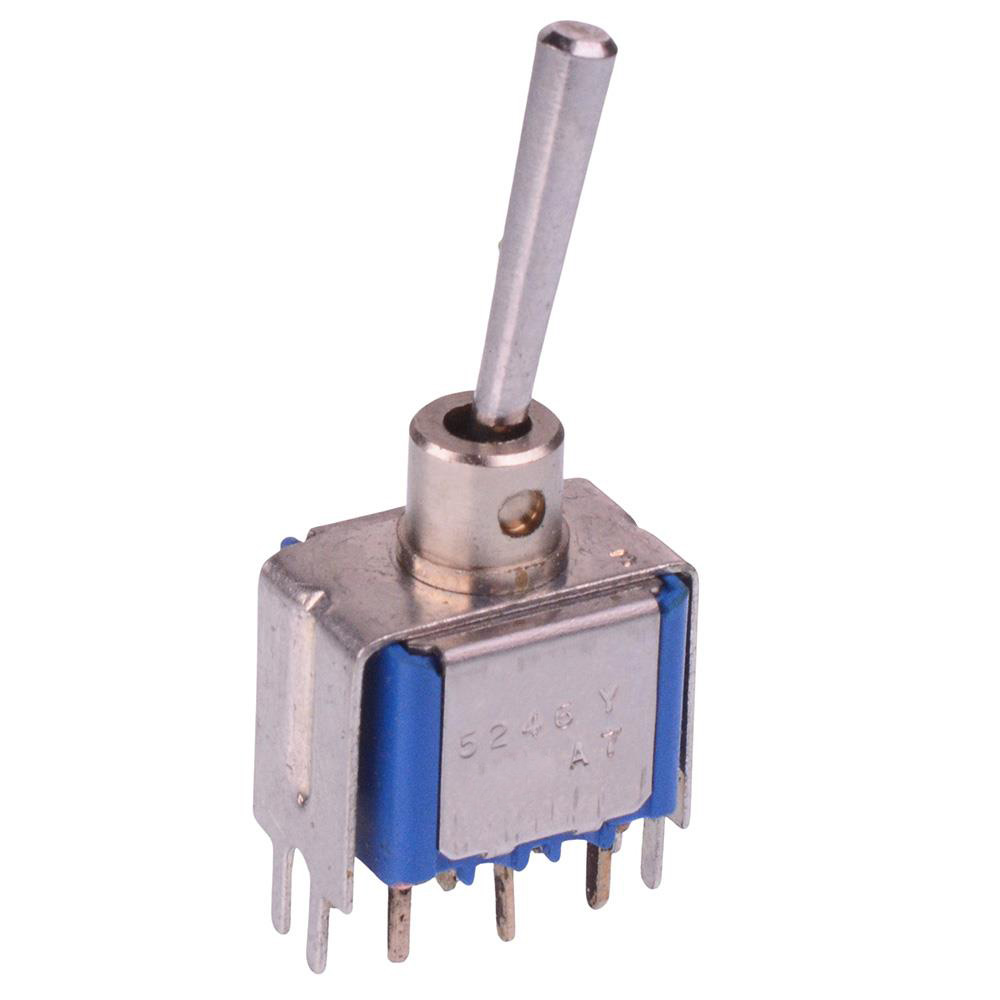

5246YAB23 On-On Miniature DPDT Toggle Switch 4A 30VDC for PCB Mounting

5246YAB23 On-On Miniature DPDT Toggle Switch 4A 30VDC for PCB Mounting
5246YAB23 On-On Miniature DPDT Toggle Switch 4A 30VDC for PCB Mounting
0 reviews - Write a review
from
$3.80
Ex Tax: $3.80
25 or more $3.30
100 or more $3.00
250 or more $2.73
500 or more $2.54
  • Stock: In Stock
  • Model: SCJ014806
  • SKU: SCJ014806
Products Sold: 0
Product Views: 542
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationLatching
Contact ConfigurationDPDT
Contact MaterialSilver
Contact Rating4A 30VDC
Current Rating4A
IlluminatedNo
Electrical Life50,000 Cycles
Mounting StylePCB
Number of Poles2
Number of Positions2
Operating Temperature-40°C to +85°C
Pitch4.7mm
Product Series5000
Switch OperationOn-On
Terminal TypeThrough Hole
Voltage Rating30VDC
  • Description
The 5246YAB23 is a miniature toggle switch with On-On DPDT contacts from the Socoje 5000 series. Designed for PCB mounting, it features a plain bushing and PCB terminals. The switch meets UL, CSA, and CECC approvals, making it suitable for a wide range of industrial and consumer applications.

Features:
  • DPDT contacts with On-On operation
  • Suitable for PCB mounting
  • 4A rating at 30VDC
  • Epoxy sealed terminals
  • Paddle lever, 14mm length
  • 4.7mm terminal pitch
  • UL, CSA, CECC approved
  • Socoje 5000 series

    • 5246YAB23 On-On Miniature PCB Toggle Switch DPDT 4A 30VDC
