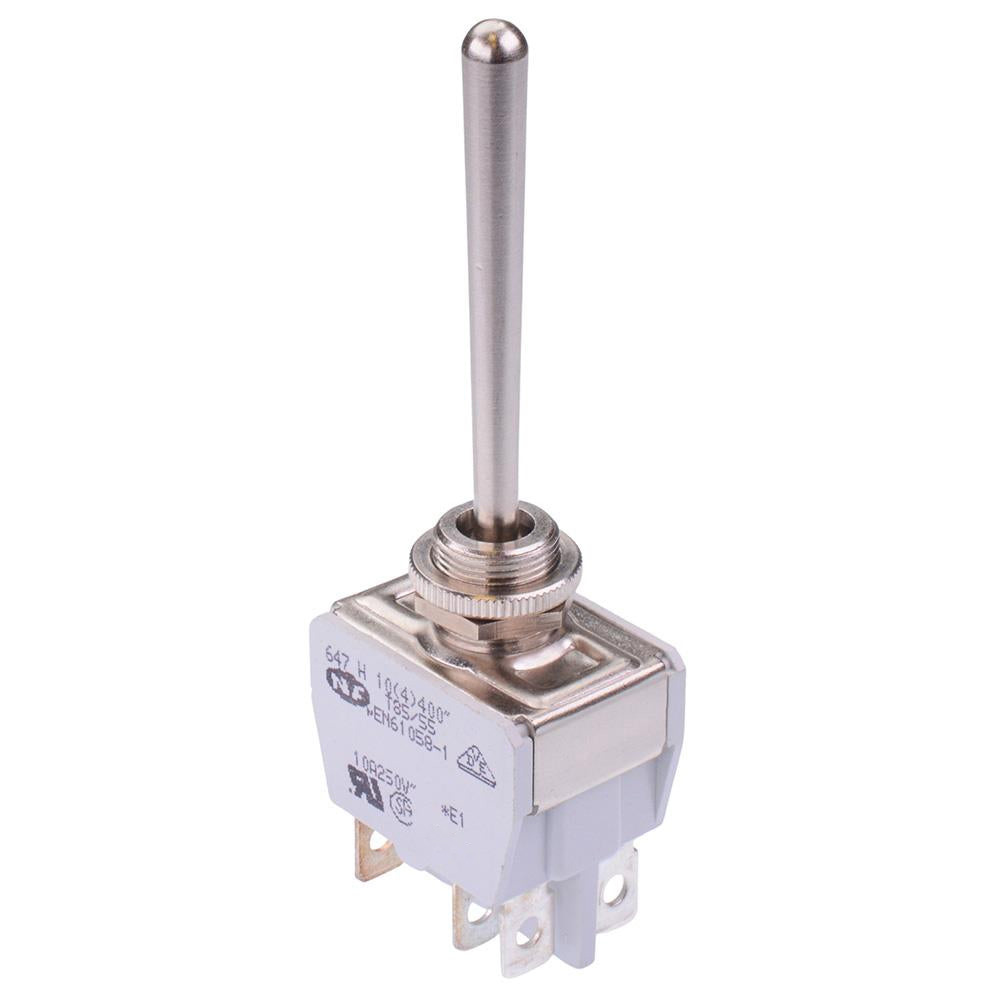

(On)-Off-(On) Momentary 12mm Toggle Switch DPDT 15A 647H/2

(On)-Off-(On) Momentary 12mm Toggle Switch DPDT 15A 647H/2 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	DPDT
Contact Material	Silver / Nickel Alloy
Contact Rating	12A 250VAC
Current Rating	15A
Illuminated	No
Electrical Life	10,000 Cycles
Mounting Style	Panel
Number of Poles	2
Number of Positions	3
Operating Temperature	-20°C to +55°C
Panel Cut Out	12.2mm
Product Series	600
Switch Operation	(On)-Off-(On)
Terminal Type	Quick Connect
Voltage Rating	250VAC / 24VDC

Description

(On)-Off-(On) Momentary 12mm Toggle Switch DPDT 15A 647H/2

The 647H/2 is a momentary DPDT toggle switch with 12mm bushing and quick connect terminals, manufactured by socoje. The switch features a metal lever and robust mechanim, suitable for industrial applications with a high amperage.

DPDT contacts

(On)-Off-(On) function

Quick connect terminals

Rating: 15A 250VAC

Panel cut-out: 12.2mm

Panel thickness: 4.5mm max

Terminals: silver/nickel alloy
