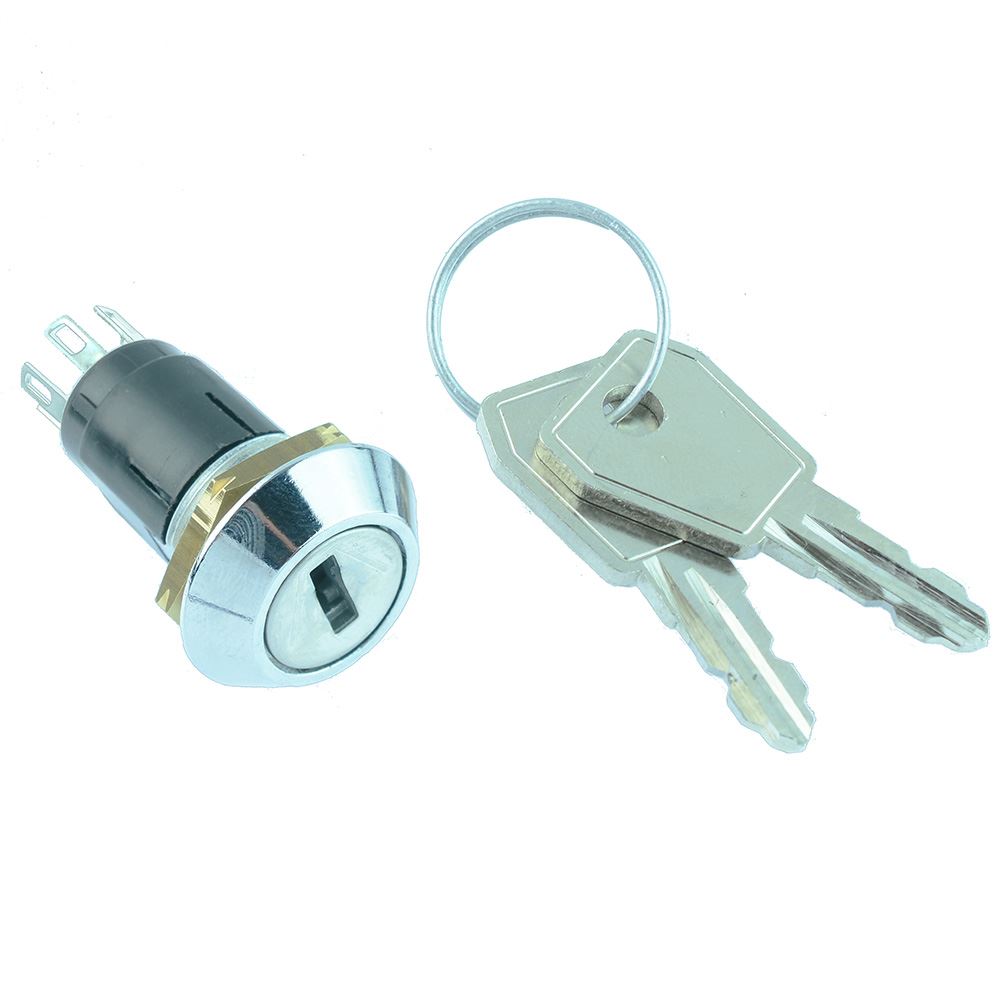

SRL-5-D-D-2 On-On Keylock Key Switch SPDT 1A 125V

SRL-5-D-D-2 On-On Keylock Key Switch SPDT 1A 125V 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	SPDT
Contact Rating	1A 115Vac
Current Rating	1A
Material	Chrome Plated Zinc Alloy
Mounting Style	Panel Mount
Number of Positions	2
Operating Temperature	-20°C to +65°C
Panel Cut Out	13 x 16mm
Switch Operation	On-On
Terminal Type	Solder
Voltage Rating	115VAC

Description

SRL-5-D-D-2 manufactured by socoje is a key lock switch featuring SPDT contacts and different keys suitable for a wide range of electrical applications.

On-On operation

SPDT contacts

Different keys

Key withdrawal position: 1 & 4

Panel cut-out: 13 x 16mm

Rating: 1A 125Vac

Key travel: 90dg

Chrome plated zinc alloy housing
