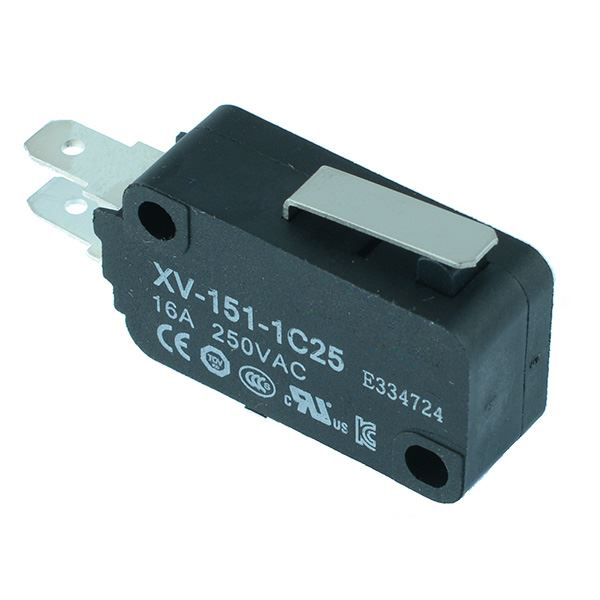

Short Lever V3 Microswitch SPDT 16A 250VAC

Short Lever V3 Microswitch SPDT 16A 250VAC 1

Buy Now

Specifications

Attributes List
Contact Configuration	SPDT
Contact Rating	16A 250VAC
Current Rating	16A
Electrical Life	100,000 Cycles
Release Force	50g
Number of Positions	2
Protection Level	IP40
Operating Force	200g
Operating Temperature	-25°C to +80°C
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

Standard size V3 microswitch featuring a short lever actuator and SPDT contacts. The switch is connected using the 4.8mm terminals and is suitable for a wide range of applications due to its compact size and reliability.

Short lever actuator

Rating: 15A 250VAC

NO / NC contacts

4.8mm quick connect terminals

1,000,000 operation life

200g operating force

50g release force
