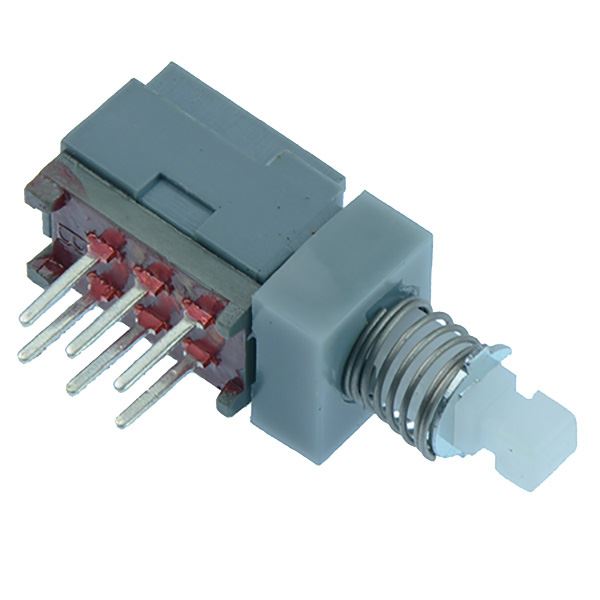

Mini Push Button Latching PCB Switch DPDT 30V

Mini Push Button Latching PCB Switch DPDT 30V 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	DPDT
Contact Rating	0.1A 30VDC
Current Rating	0.1A
Illuminated	No
Electrical Life	10000 Cycles Min
Illumination Colour	Non Illuminated
Mounting Style	PCB
Number of Poles	2
Number of Positions	2
Operating Force	230gf
Operating Temperature	-20°C to +70°C
Switch Operation	On-On
Terminal Type	Through Hole
Voltage Rating	30VDC

Description

Mini Push Button Latching PCB Switch DPDT 30V
2 pole latching push switch suitable for PCB mounting.

DPDT contacts

Rating: 0.1A 30VDC

25.1 x 9.1 x 7.8mm (L x H x W)

2.5mm terminal pitch

230gf operating force
