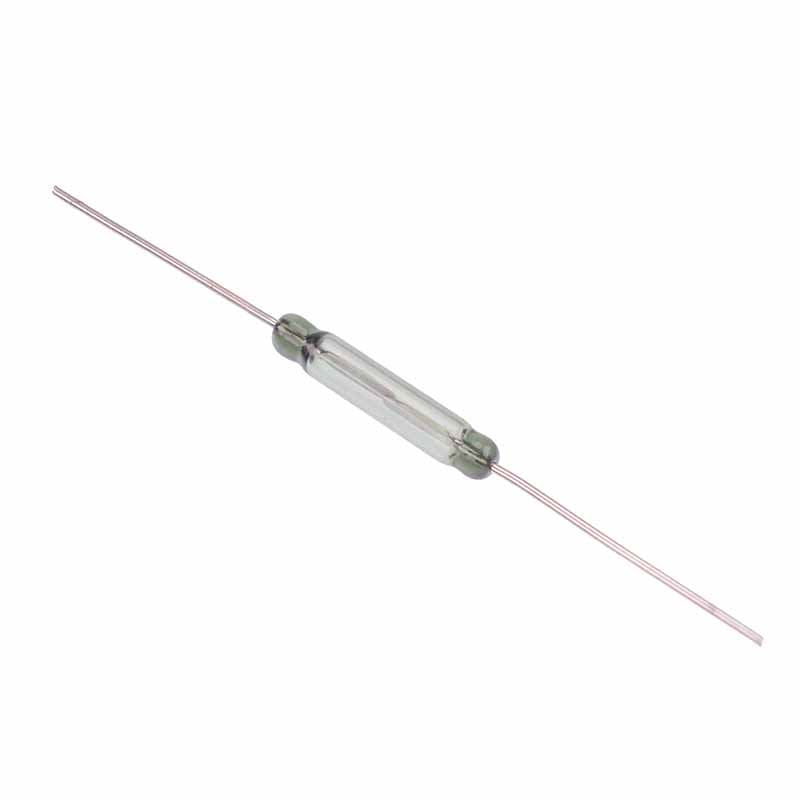

Miniature SPST-NO Reed Switch 50mA 24VDC

Miniature SPST-NO Reed Switch 50mA 24VDC 1

Buy Now

Specifications

Attributes List
Bounce Time	0.4ms
Diameter	2.5mm
Carry Current	0.1A
Length	16mm
Contact Configuration	SPST-NO
Maximum Switching Current	0.05A
Drop Out Sensitivity	5AT Min
Maximum Switching Voltage	24VDC
Material	Rhodium
Pull In Sensitivity	10-25AT
Release Time	1ms
Operating Temperature	-10°C to +40°C

Description

Miniature reed switch featuring NO contacts hemetically sealed within a glass tube. The switch features a quick response time and is lightweight making them suitable for low power applications.

Contacts: SPNO

Dimensions: 2.5 x 16mm (diameter x length)

Maximum switching voltage: 24VDC

Maximum switching current: 50mA

Pull-In value: 10-25AT
