1/2 hp Piston Air Motor 750 rpm 397 L/min
from
$1,029.37
Ex Tax: $1,029.37
- Stock: In Stock
- Model: SCJ009605
- SKU: SCJ009605
Products Sold: 0
Product Views: 1085
Ask a Question About This Product
- Description
1/2 hp Piston Air Motor 750 rpm 397 L/min
Brief
1/2 hp piston air motor for sales at affordable price. The piston type air motor with air consumption 397 L/min, 750 rpm rated speed, rated torque 2.94 Nm, gear ratio 1:1, basic type/ flange type/ foot type for selection. Factory price pneumatic piston motor is mainly used in mining machinery.
Description
piston air motor with max. no-load speed 1500 rpm, starting torque 4.71 Nm, stopping torque 5.88 Nm. Cheap pneumatic piston motor offers low noise, light weight and long service life advantages.
Specification
| Model | SCJ009605 |
| Power | 1/2 hp |
| Gear ratio | 1:1 |
| Rated speed | 750 rpm |
| Rated torque | 2.94 Nm |
| Max. no-load speed | 1500 rpm |
| Air consumption | 397 L/min |
| Starting torque | 4.71 Nm |
| Stopping torque | 5.88 Nm |
| Mounting type | Basic type/ flange type/ foot type |
| Certificate | CE |
| Warranty | 12 months |
Dimension

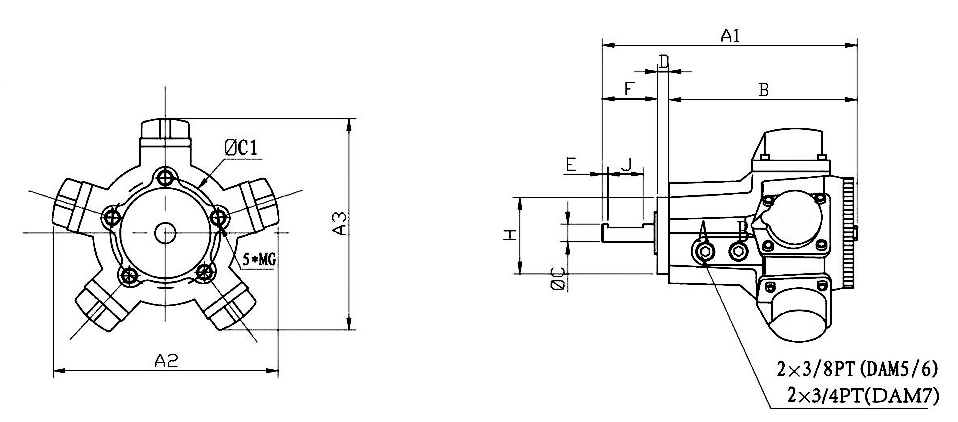

Basic type

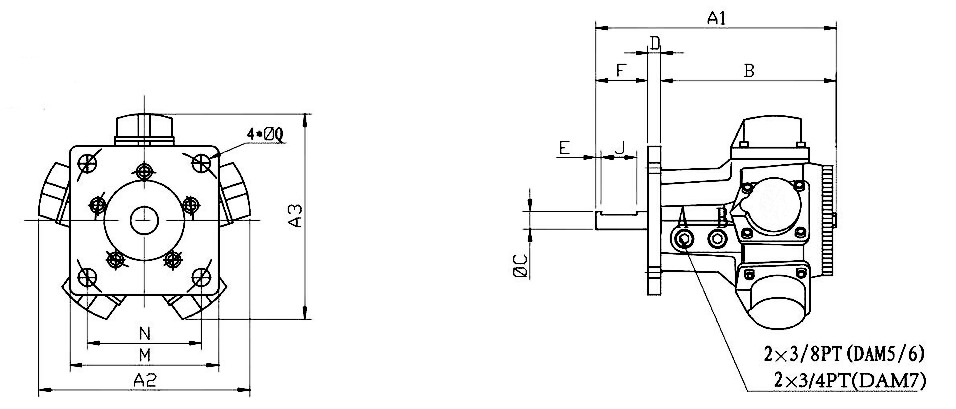

Flange type

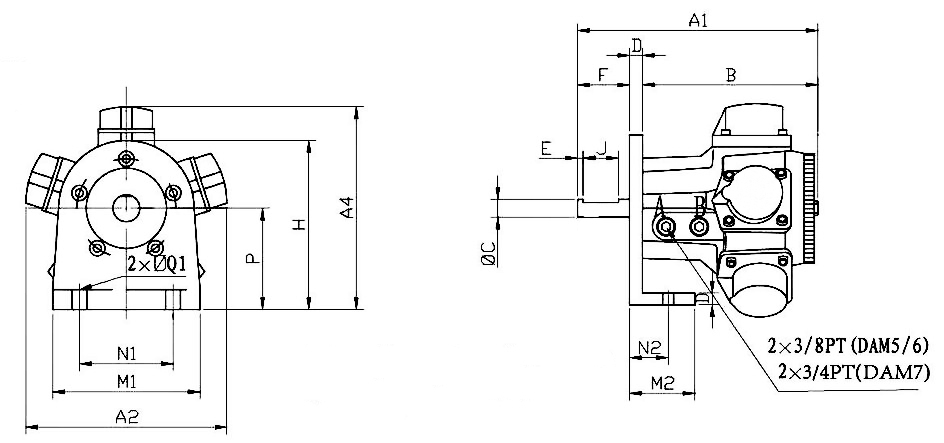

Foot type
| Model | Dimension (mm) | |||||||||||||||||||||
| A1 | A2 | A3 | A4 | B | C | C1 | D | E | F | G | H | J | M | N | M1 | N1 | M2 | N2 | Q | Q1 | P | |
| SCJ009605 | 237 | 196 | 190 | 195 | 175 | 16 | 80 | 14 | 4 | 46 | M6 | 62h7 | 30 | 106 | 80.5 | 130 | 100 | 70 | 42 | 9 | 9 | 95 |
Details
Tips: Faults and Troubleshooting Methods of Piston Air Motor.
Suddenly slow down or not rotate during operation.
1. Reason analysis.
(1) Poor lubrication.
(2) The valve is stuck and burned.
(3) The crankshaft, connecting rod, and bearing are damaged.
(4) The cylinder screw is loose.
(5) The gas valve is blocked and desoldered.
2. Elimination method.
(1) Refueling.
(2) Replacement.
(3) Tighten.
(4) Resoldering.
