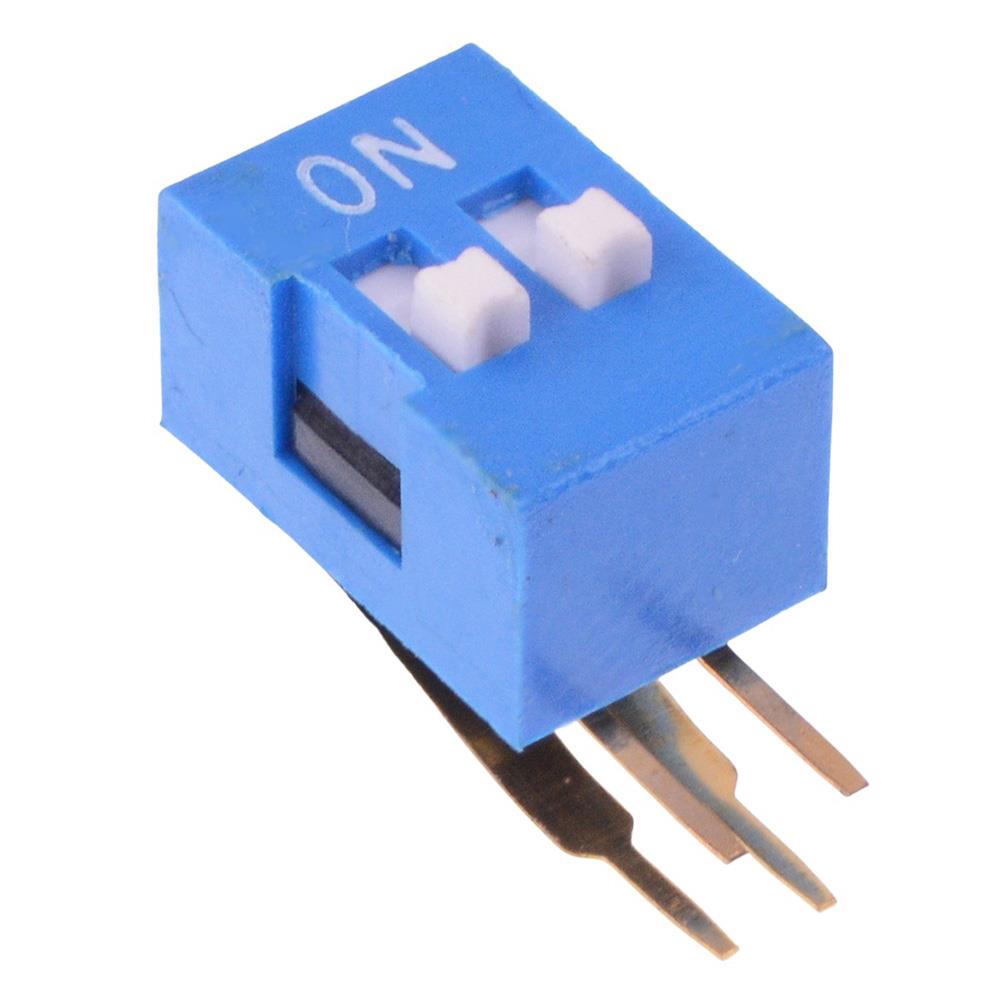

NDA02BT 2-Way Right Angle DIP Switch SPST

NDA02BT 2-Way Right Angle DIP Switch SPST 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Blue
Contact Configuration	SPST
Contact Material	Gold Plated
Contact Rating	100mA 50VDC
Current Rating	25mA
Electrical Life	2,000 Cycles
Material	PBT
Mounting Style	Through Hole
Number of Positions	2
Number of Ways	2
Operating Temperature	-20°C to +70°C
Pitch	2.54mm
Product Series	NDA
Switch Operation	On-Off
Terminal Type	Solder
Voltage Rating	24VDC

Description

The NDA02BT is a 2 way right angle DIP switch featuring SPST contacts and gold plated terminals. The switch features self-cleaning wiping contacts and 25mA 24VDC switch rating, suitable for through hole PCB applications.

2 ways

Switch rating: 25mA 24VDC

Contact rating: 100mA 50VDC

Gold plated brass terminals

2.54mm pitch

Tape seal
