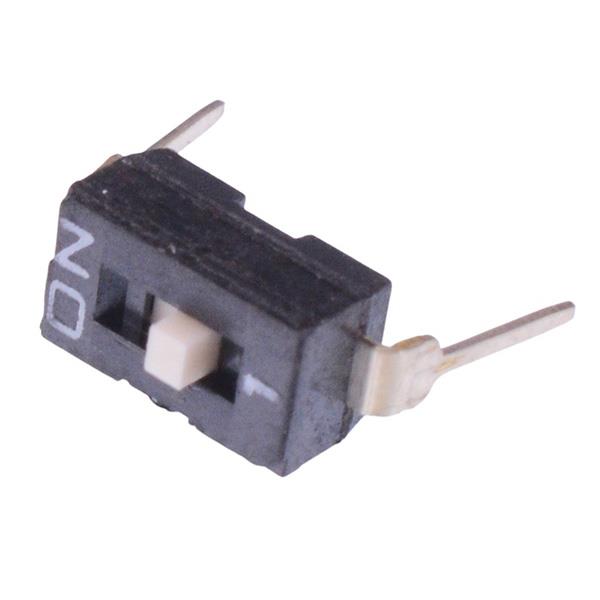

NDI-01SV 1-Way 2.54mm Low Profile PCB Through Hole DIP Switch SPST

NDI-01SV 1-Way 2.54mm Low Profile PCB Through Hole DIP Switch SPST 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Black
Contact Configuration	SPST
Contact Material	Gold Plated Brass
Contact Rating	100mA 50VDC
Current Rating	25mA
Electrical Life	2,000 Cycles
Material	UL94-V0
Mounting Style	Through Hole
Number of Positions	2
Number of Ways	1
Operating Temperature	-20°C to +85°C
Pitch	2.54mm
Product Series	NDI
Switch Operation	On-Off
Terminal Type	Solder
Voltage Rating	24VDC

Description

The NDI-01SV is a 1 way through hole DIP switch featuring SPST contacts and gold plated terminals. The switch features self-cleaning contacts and 25mA 24VDC rating, suitable for PCB applications.

Raised actuator

1 way

Switch rating: 25mA 24VDC

Contact rating: 100mA 50VDC

Gold plated brass terminals

2.54mm pitch
