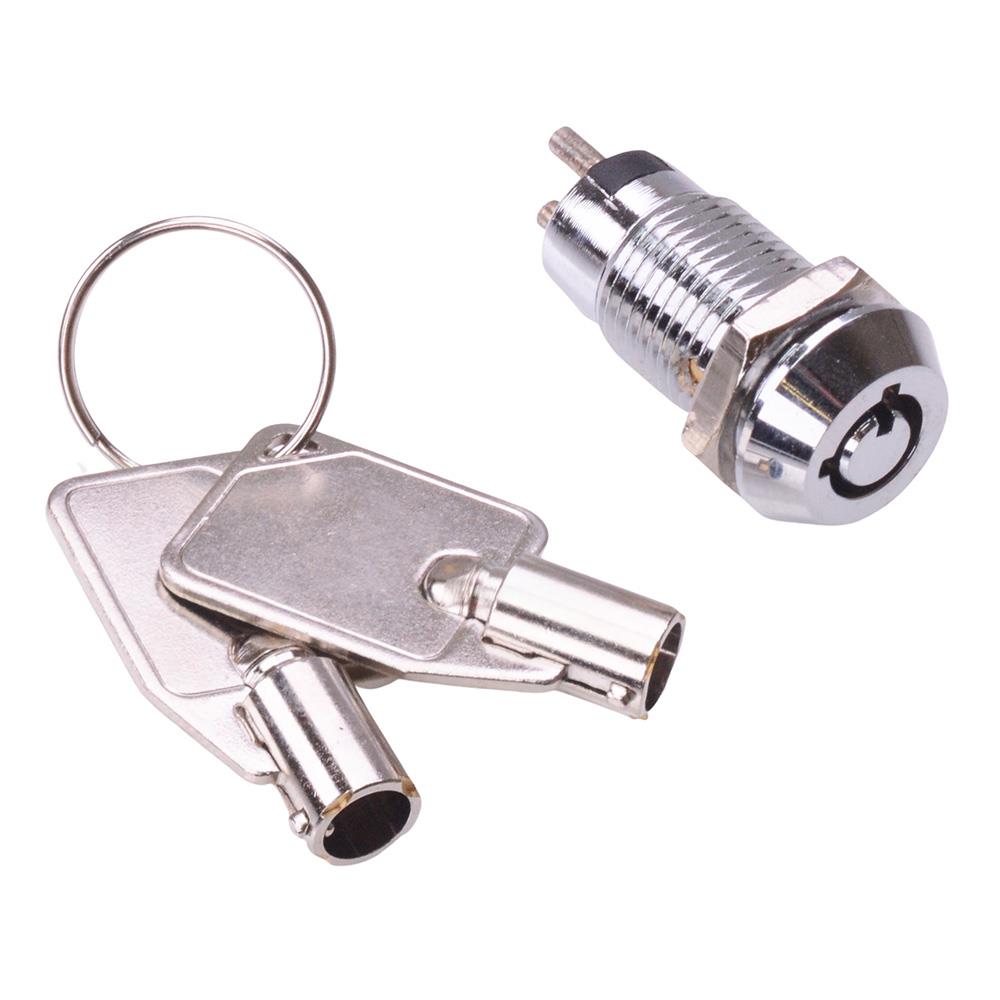

On-Off 12mm Metal Key Switch SPST 1A

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	SPST
Contact Material	Silver Plated
Contact Rating	0.5A 250VAC
Current Rating	1A
Key Index Angle	90°
Material	Chrome Plated Zinc Alloy
Key Withdrawal Position	1
Mounting Style	Panel Mount
Number of Positions	2
Protection Level	Silver Plated
Panel Cut Out	12mm
Switch Operation	On-Off
Terminal Type	Solder
Voltage Rating	250VAC

Description

Metal key switch featuring SPST contacts and On-Off function, suitable for panel mounting. The switch features tubular 2 keys removable in both positions and requires a 12mm panel cut-out size.

On-Off function
SPST contacts
Solder terminals
Keys alike
Panel cut-out: 12mm
Key removable in both positions
Chrome plated zinc alloy housing
Rating: 1A 125VAC, 0.5A 250VAC
