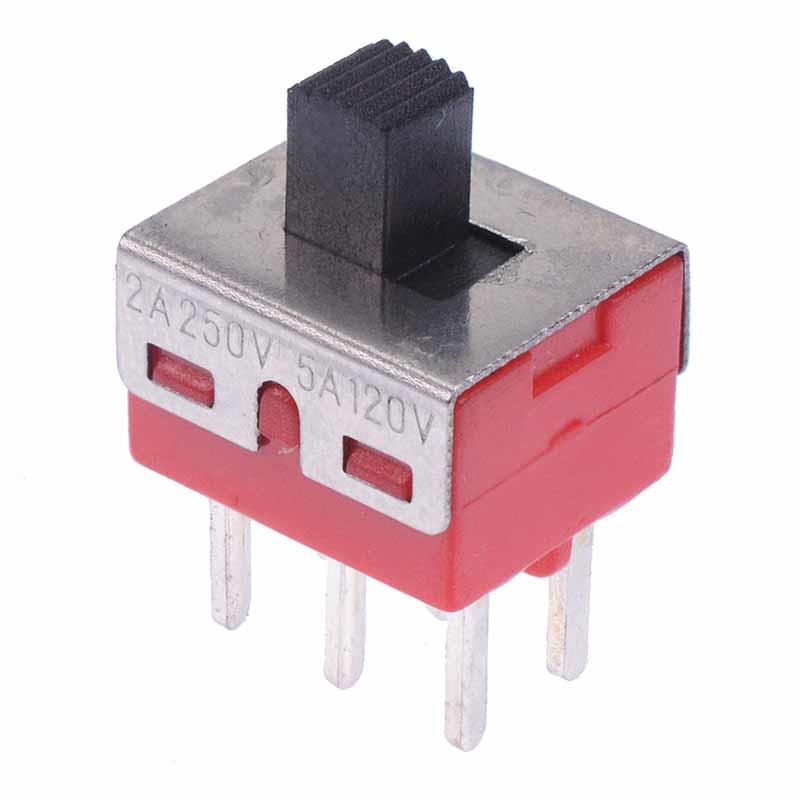

On-On Mini Horizontal PCB Slide Switch SPDT 5A

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	SPDT
Contact Rating	2A 250VAC, 5A 125VAC / 28VDC
Current Rating	5A
Electrical Life	30,000 Cycles
Material	DAP & Stainless Steel
Mounting Style	PCB
Number of Poles	1
Number of Positions	2
Operating Temperature	-30°C to +85°C
Pitch	4mm
Switch Operation	On-On
Terminal Type	PCB
Voltage Rating	250VAC

Description

On-On miniature slide switch featuring SPDT contacts and solder terminals. The switch features a 5A current rating and is suitable for mounting vertically to the PCB.

On-On action

SPDT contacts

Solder terminals

5mm knob height

Rating: 3A 250VAC, 5A 125VAC / 28VDC

Terminal pitch: 4mm

Body dimensions: 11.3 x 13.4 x 6.4mm (Length x Width x Height)
