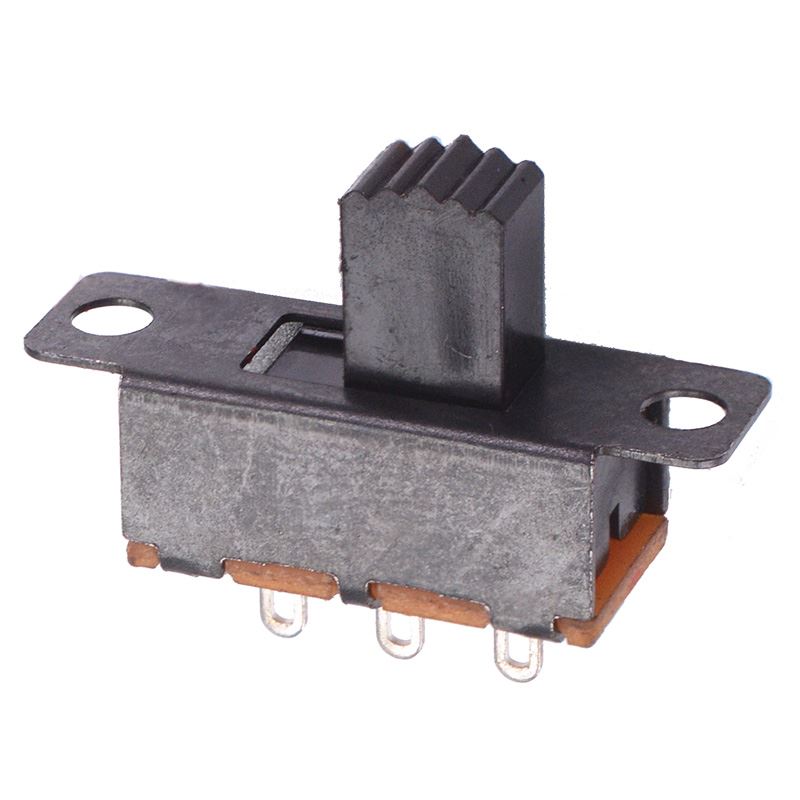

On-On Miniature Slide Switch SPDT 0.3A 50VDC

On-On Miniature Slide Switch SPDT 0.3A 50VDC 1

Buy Now

Specifications

Attributes List
Actuation	Latching
MOQ	5
Contact Configuration	SPDT
Contact Rating	0.3A 50VDC
Current Rating	0.3A
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Panel Cut Out	15.7 x 7.5mm
Switch Operation	On-On
Terminal Type	Solder
Voltage Rating	50VDC

Description

On-On mini slide switch featuring SPDT contacts, suitable for panel mount applications requring a low cost reliable switch.

On-On action

SPDT contacts

0.3A 50VDC rating

2.5mm mounting holes

Mounting holes 19mm apart

Panel cut-out: 15.7 x 7.5mm
