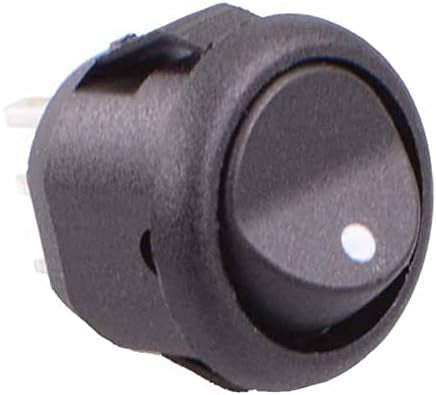

On-On Ultra Miniature 13mm Round Rocker Switch SPDT

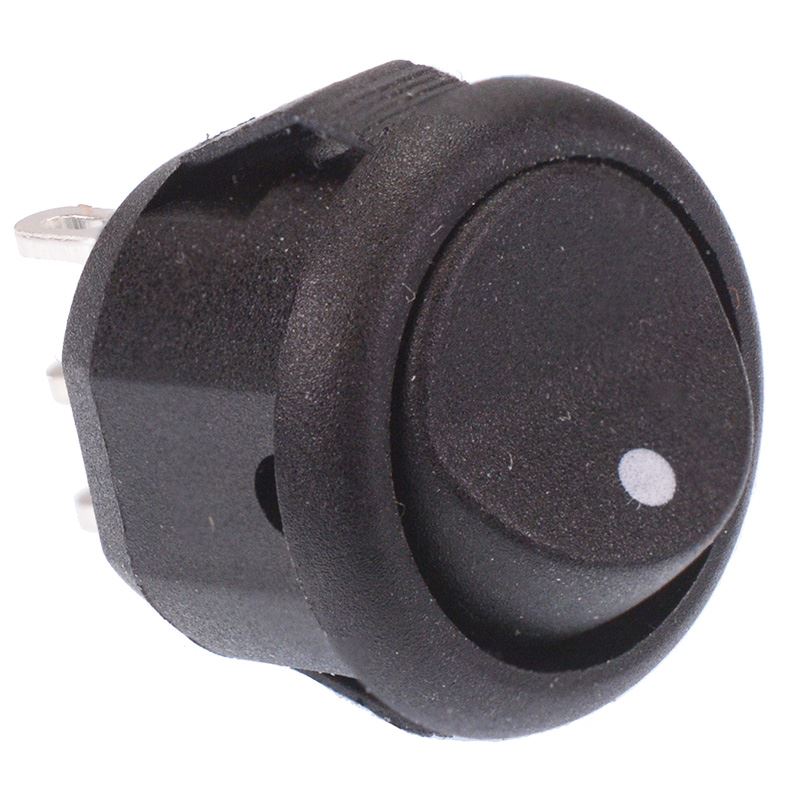

On-On Ultra Miniature 13mm Round Rocker Switch SPDT 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	SPDT
Contact Rating	3A 125VAC, 1.5A 250VAC
Current Rating	3A
Illuminated	No
Electrical Life	30,000 Cycles
Material	PA66
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Panel Cut Out	13mm
Panel Thickness	2mm Maximum
Switch Operation	On-On
Terminal Type	Solder
Voltage Rating	250VAC

Description

On-On Ultra Miniature 13mm Round Rocker Switch SPDT

Ultra mini circular rocker switch with an On-On action and SPDT contacts, housed in a compact package requiring a 13mm panel cut-out diameter. The switch features solder terminals and snap-in mounting making them ideal for applications requiring a very small but reliable switch.

On-On action

SPDT contacts

Solder terminals

Panel cut-out: 13mm

Dimensions: 19.6 x 15mm (Height x Diameter)

Rating: 3A 125VAC, 1.5A 250VAC
